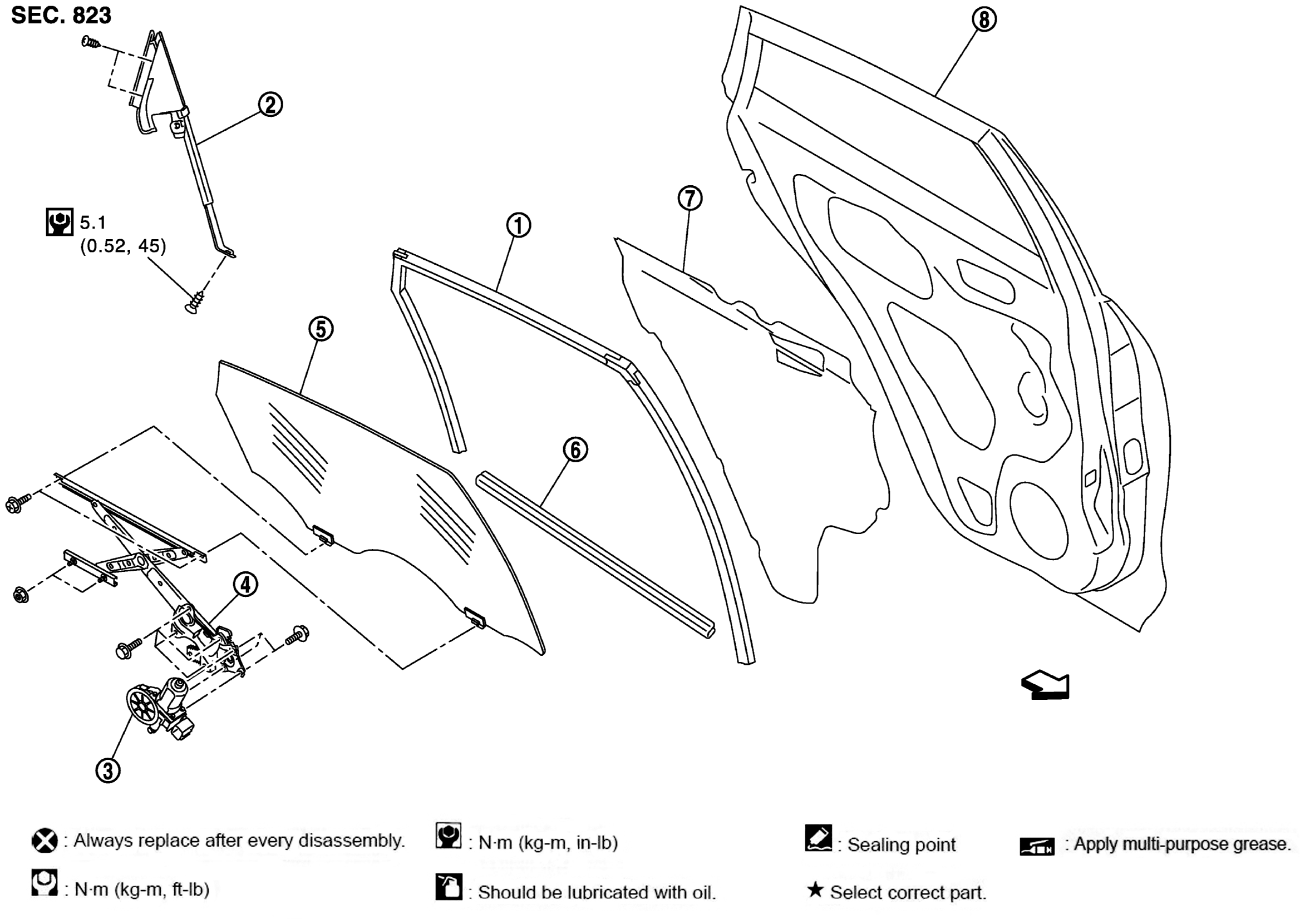

Exploded View With Torque Specifications

GNSJMKIA1950GB-950Courtesy of NISSAN NORTH AMERICA, INC.
1. Rear door glass run 2. Corner piece assembly 3. Power window motor
4. Regulator assembly 5. Rear door glass 6. Rear door inside seal
7. Sealing screen 8. Rear door panel
ARROW : Vehicle front
BOLTIN : N•m (kg - m, in - lb)
