AWD Control Unit Connector End View (F108)

Connector Types: TH16FW-NH

Fig 1: Terminal-side

GNSW27453

Courtesy of NISSAN NORTH AMERICA

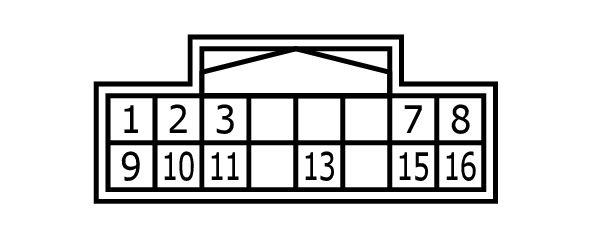

Fig 2: Harness-side

GNSW27601

Courtesy of NISSAN NORTH AMERICA

Terminal No.	Color of Wire	Signal Name (Specification)
1	BR	AWD SOL (+)
2	Y	AWD SOL (-)
3	W	FLUID TEMP (-)
7	G	IGN
8	L	CAN-H
9	O	AWD SOL BATT
10	B	GROUND
11	GR	GROUND
13	LG	FLUID TEMP (+)
15	Y	BATTERY
16	P	CAN-L
