Exploded View

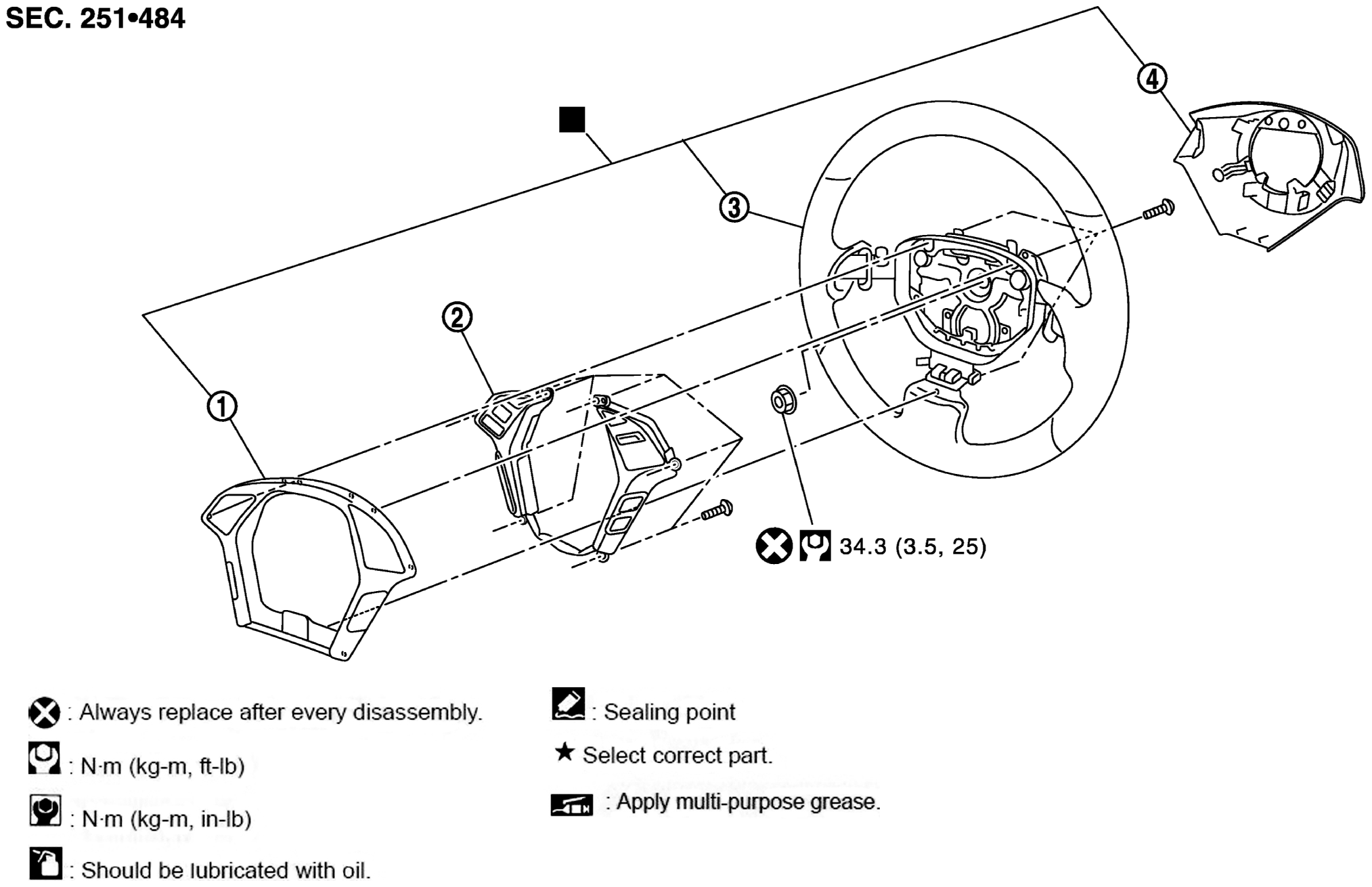

Fig 1: Steering Wheel With Torque Specifications
GNSJSGIA0710GB-710Courtesy of NISSAN NORTH AMERICA, INC.
1. Steering switch finisher 2. Steering switch 3. Steering wheel
4. Steering wheel rear cover
SHIKAKU-B : Replace the parts as a set.
Refer to COMPONENTS for symbols in the illustration.
