Exploded View

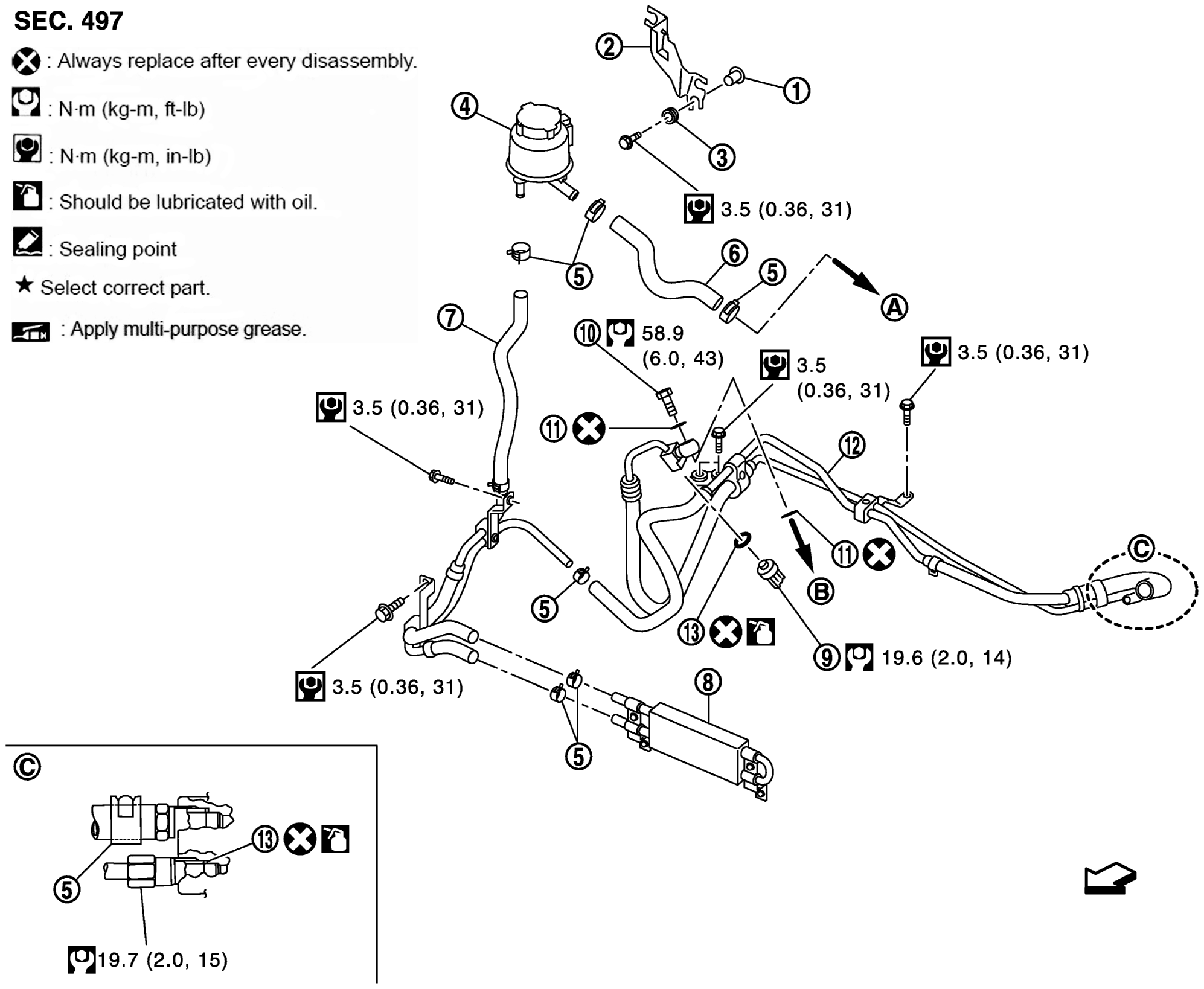

Fig 1: Hydraulic Line 2WD With Torque Specifications

Courtesy of NISSAN NORTH AMERICA, INC.

1.	Collar	2.	Reservoir tank bracket	3.	Bushing
4.	Reservoir tank	5.	Clamp	6.	Suction hose
7.	Return piping	8.	Oil cooler	9.	Pressure sensor
10.	Eye bolt	11.	Copper washer	12.	High pressure piping and low pressure piping
13.	O-ring
A.	To power steering oil pump suction hose.	B.	To power steering oil pump.
: Vehicle front
: Apply power steering fluid.
Refer to COMPONENTS for symbols not described on the above.
