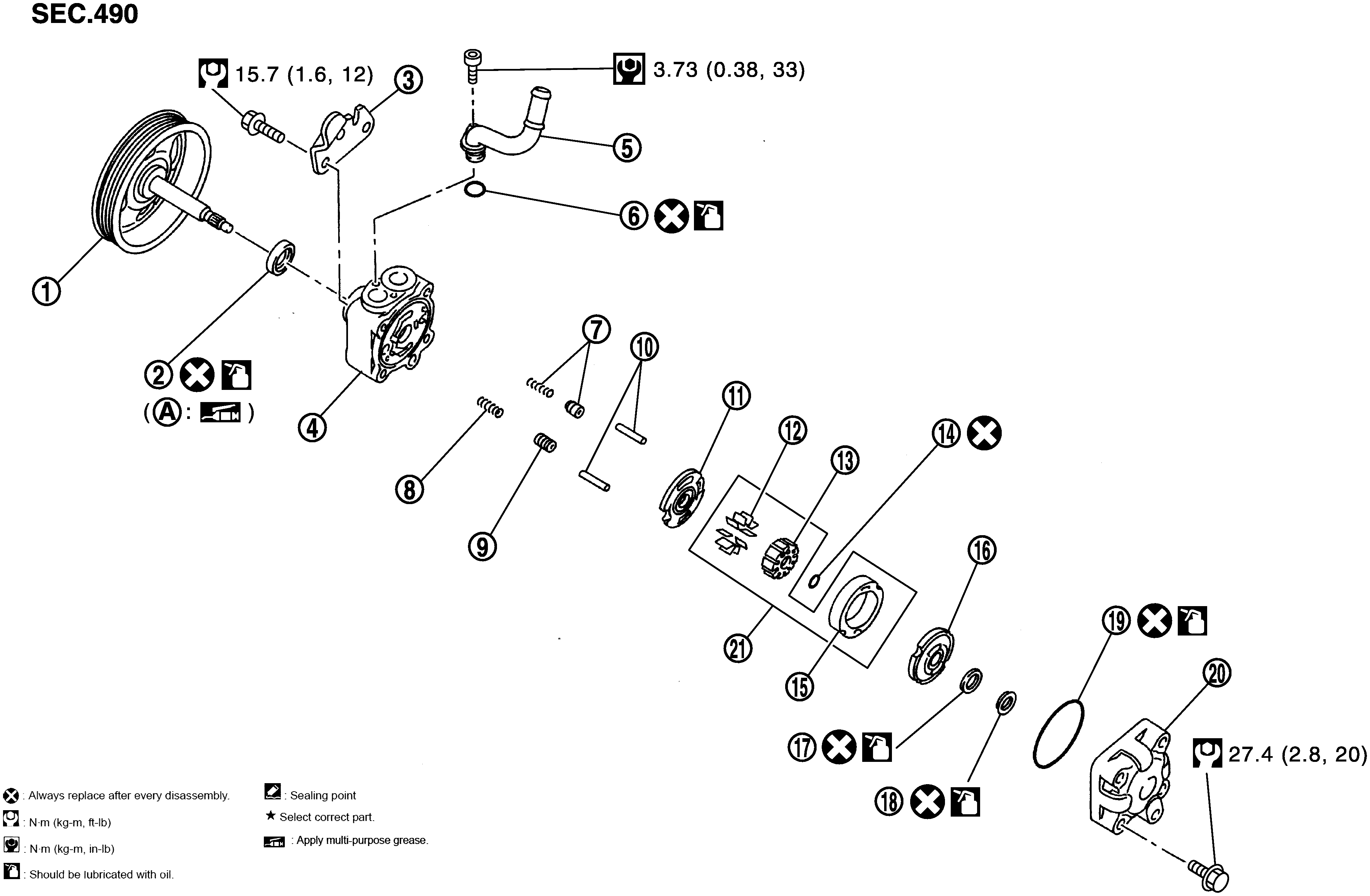

Exploded View: Disassembly

Courtesy of NISSAN NORTH AMERICA, INC.

1.	Pulley	2.	Oil seal	3.	Bracket
4.	Body assembly	5.	Suction pipe	6.	O-ring
7.	Flow control valve B assembly	8.	Flow control valve spring	9.	Flow control valve A
10.	Dowel pin	11.	Front side plate	12.	Vane
13.	Rotor	14.	Rotor snap ring	15.	Cam ring
16.	Rear side plate	17.	O-ring	18.	Teflon ring
19.	O-ring	20.	Rear cover	21.	Cartridge
A.	Oil seal lip
: Apply power steering fluid.
: Apply multi-purpose grease.
Refer to COMPONENTS for symbols not described on the above.
