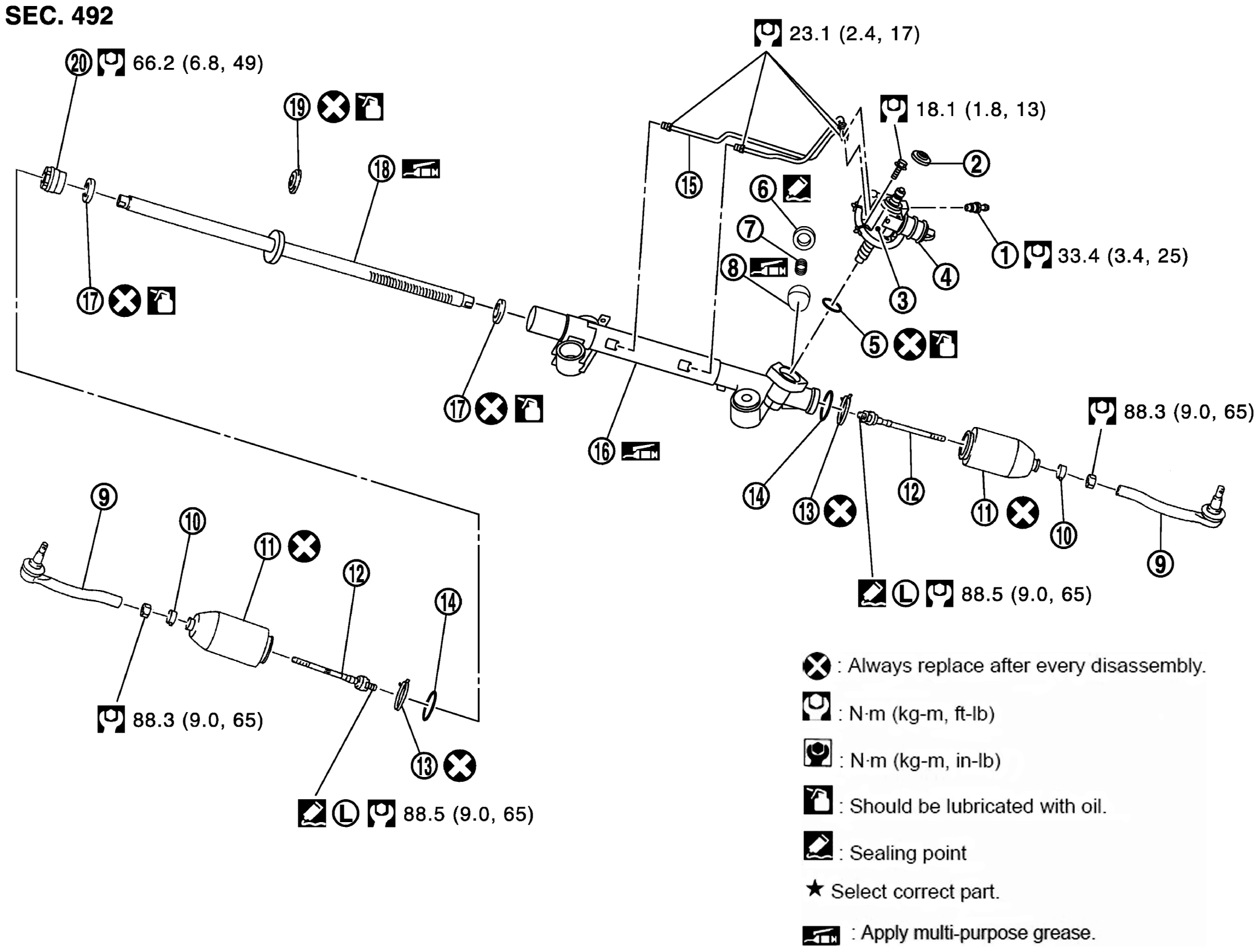

Exploded View: Disassembly

Courtesy of NISSAN NORTH AMERICA, INC.

1.	Low pressure piping	2.	Rear cover cap	3.	Gear-sub assembly
4.	Power steering solenoid valve	5.	O-ring	6.	Adjusting screw
7.	Spring	8.	Retainer	9.	Outer socket
10.	Boot clamp	11.	Boot	12.	Inner socket
13.	Boot clamp (stainless wire)	14.	Spacer	15.	Cylinder tubes
16.	Gear housing assembly	17.	Rack oil seal	18.	Rack assembly
19.	Rack Teflon ring	20.	End cover assembly
: Apply power steering fluid.
: Apply Genuine High Performance Thread Sealant or equivalent. Refer to RECOMMENDED CHEMICAL PRODUCTS AND SEALANTS .
: Apply Genuine Medium Strength Thread Locking Sealant or equivalent. Refer to RECOMMENDED CHEMICAL PRODUCTS AND SEALANTS .
: Apply multi-purpose grease.
Refer to COMPONENTS for symbols not described on the above.
