Diagnostic Test

1. Turn ignition switch OFF.
2. Disconnect "fuel level sensor unit and fuel pump" harness connector.
3. Remove fuel level sensor unit. Refer to REMOVAL AND INSTALLATION .

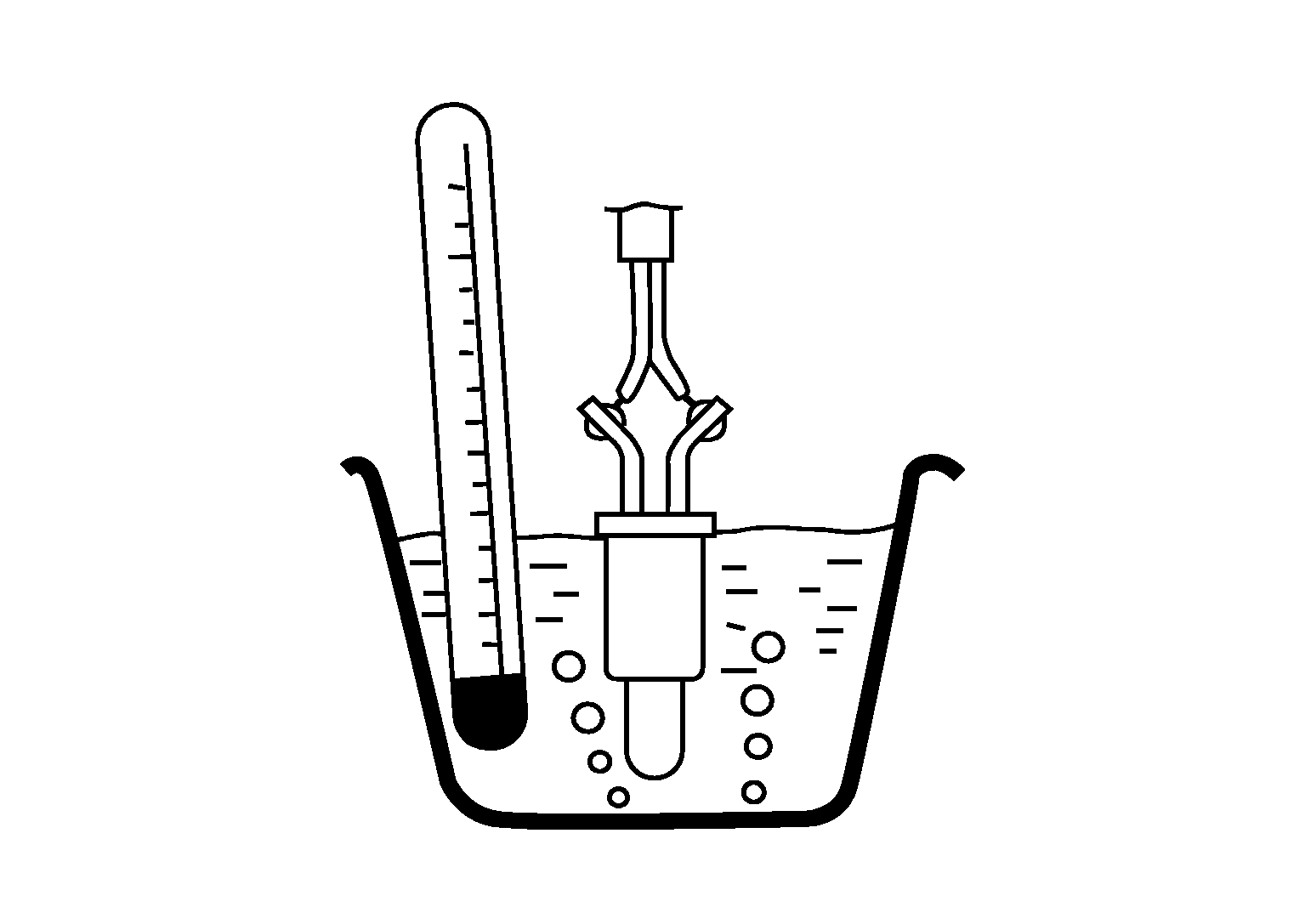

4. Check resistance between "fuel level sensor unit and fuel pump" terminals by heating with hot water as shown in the illustration.

   Courtesy of NISSAN NORTH AMERICA, INC.

   Terminals	Condition		Resistance (kΩ)
   7 and 8	Temperature [°C (°F) ]	20 (68)	2.3 - 2.7
   		50 (122)	0.79 - 0.90

Is the inspection result normal?

YES

GO TO STEP 2  .

NO

Proceed to DIAGNOSIS PROCEDURE .

Check intermittent incident. Refer to INTERMITTENT INCIDENT .

Is the inspection result normal?

YES

INSPECTION END

NO

Proceed to DIAGNOSIS PROCEDURE .
