Diagnostic Test

1. Turn ignition switch OFF.

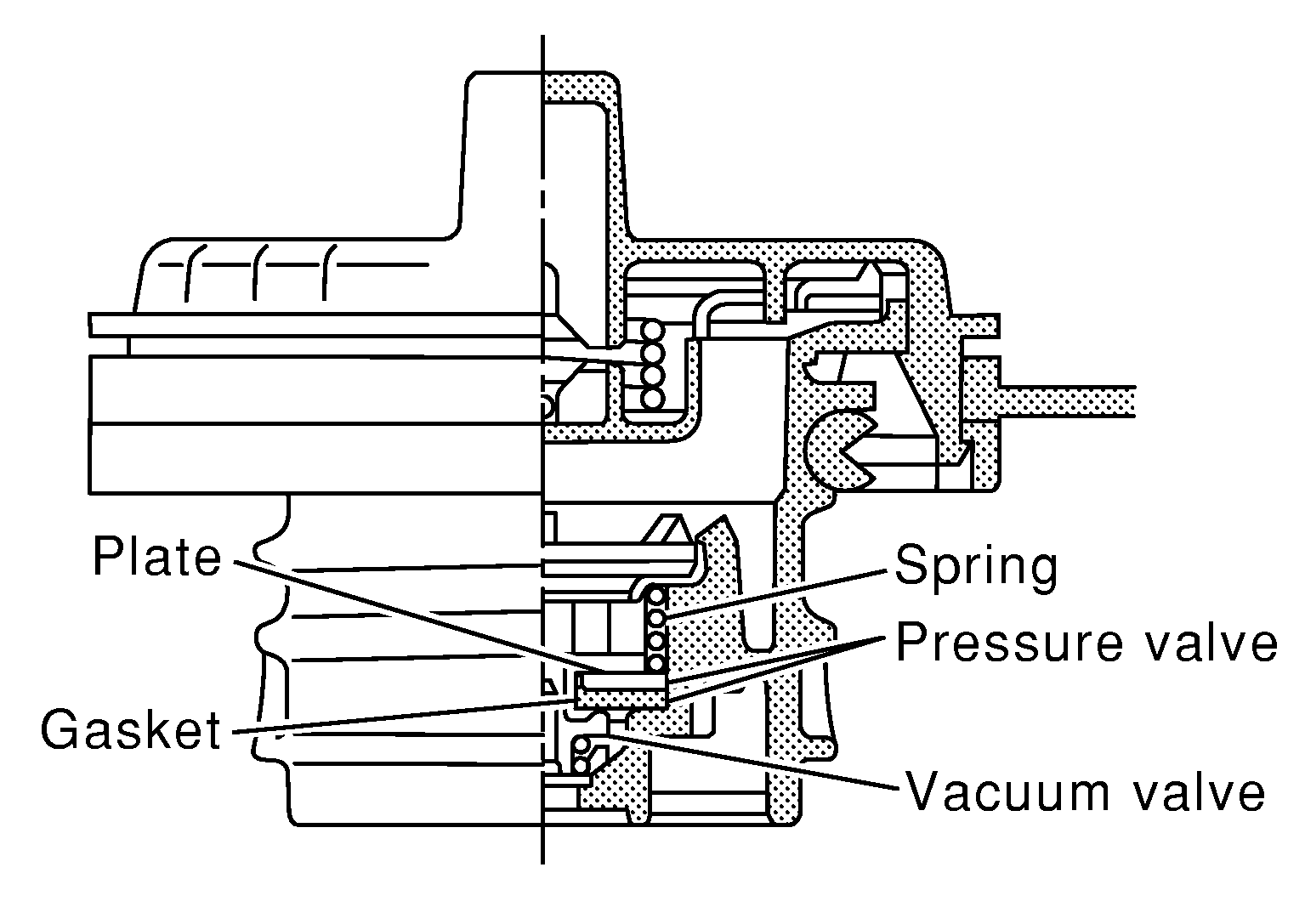

2. Remove fuel filler cap. Refer to EXPLODED VIEW WITH TORQUE SPECIFICATIONS .
3. Wipe clean valve housing.

   Courtesy of NISSAN NORTH AMERICA, INC.

4. Check valve opening pressure and vacuum.

   Courtesy of NISSAN NORTH AMERICA, INC.

   Pressure:	15.3 - 20.0 kPa (0.156 - 0.204 kg/cm2 , 2.22 - 2.90 psi)
   Vacuum:	- 6.0 to - 3.3 kPa (- 0.061 to - 0.034 kg/cm2 , - 0.87 to - 0.48 psi)

Is the inspection result normal?

YES

INSPECTION END

NO

GO TO STEP 2  .

Replace fuel filler cap. Refer to EXPLODED VIEW WITH TORQUE SPECIFICATIONS .

INSPECTION END
