Protection Function
AWD system activates its protection function (shuts down AWD system temporarily) if AWD system detects high load continuously or the front wheel tire size differs from the rear tire size. (AWD system is automatically restored if AWD system no longer detects any overload or the tire size difference is eliminated.)
| AWD warning icon/display | Possible cause | Vehicle condition | |
|---|---|---|---|

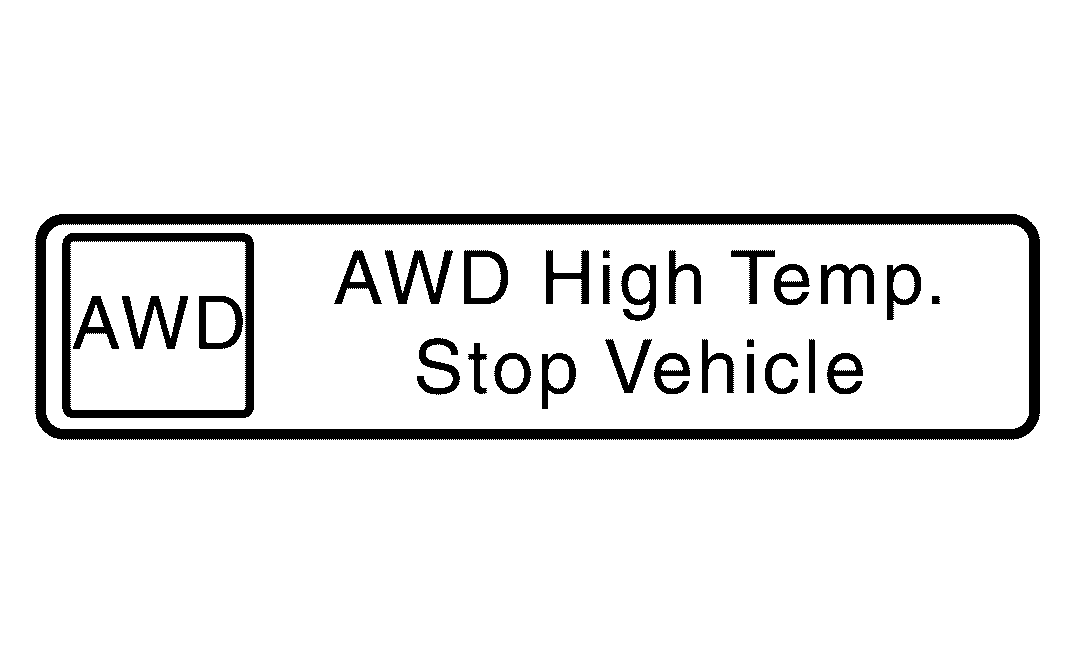

| (Displaying for approximately 1 minute and then turned OFF) |
Drive train parts in protection mode. It is not malfunction. (Internal temperature rise of electronic controlled coupling) When this message is displayed, refer to DESCRIPTION . |
Shuts down AWD system temporarily (Front wheel drive) |
|

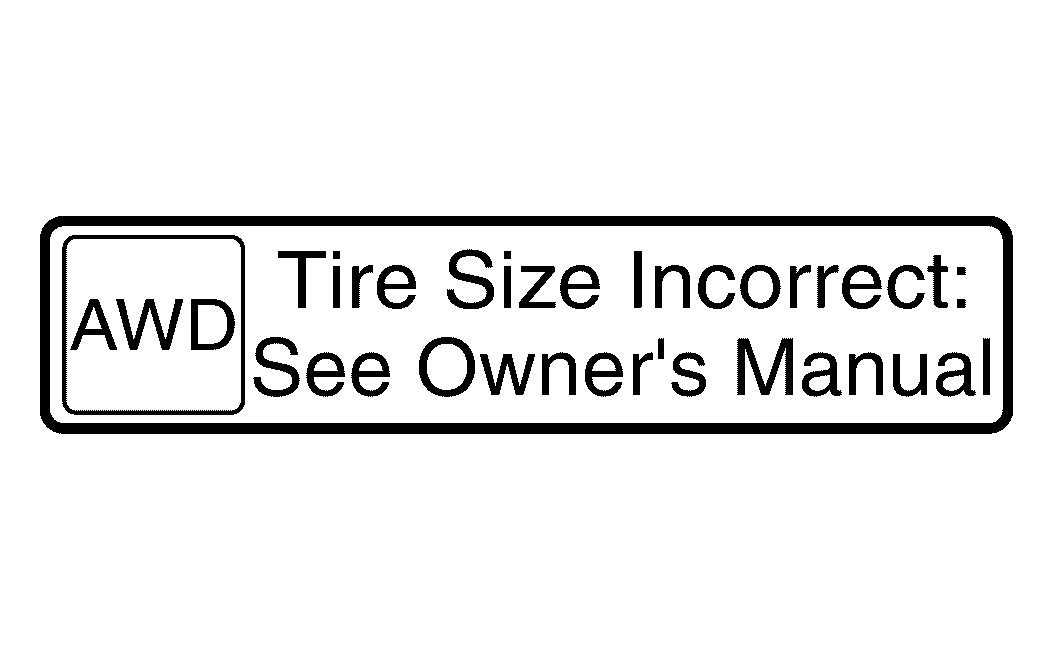

| (Continuing to display until ignition switch is turned OFF) |
Malfunction in each tire or different tire diameter When this message is displayed, refer to DIAGNOSIS PROCEDURE . |
||
