Exploded View With Torque Specifications

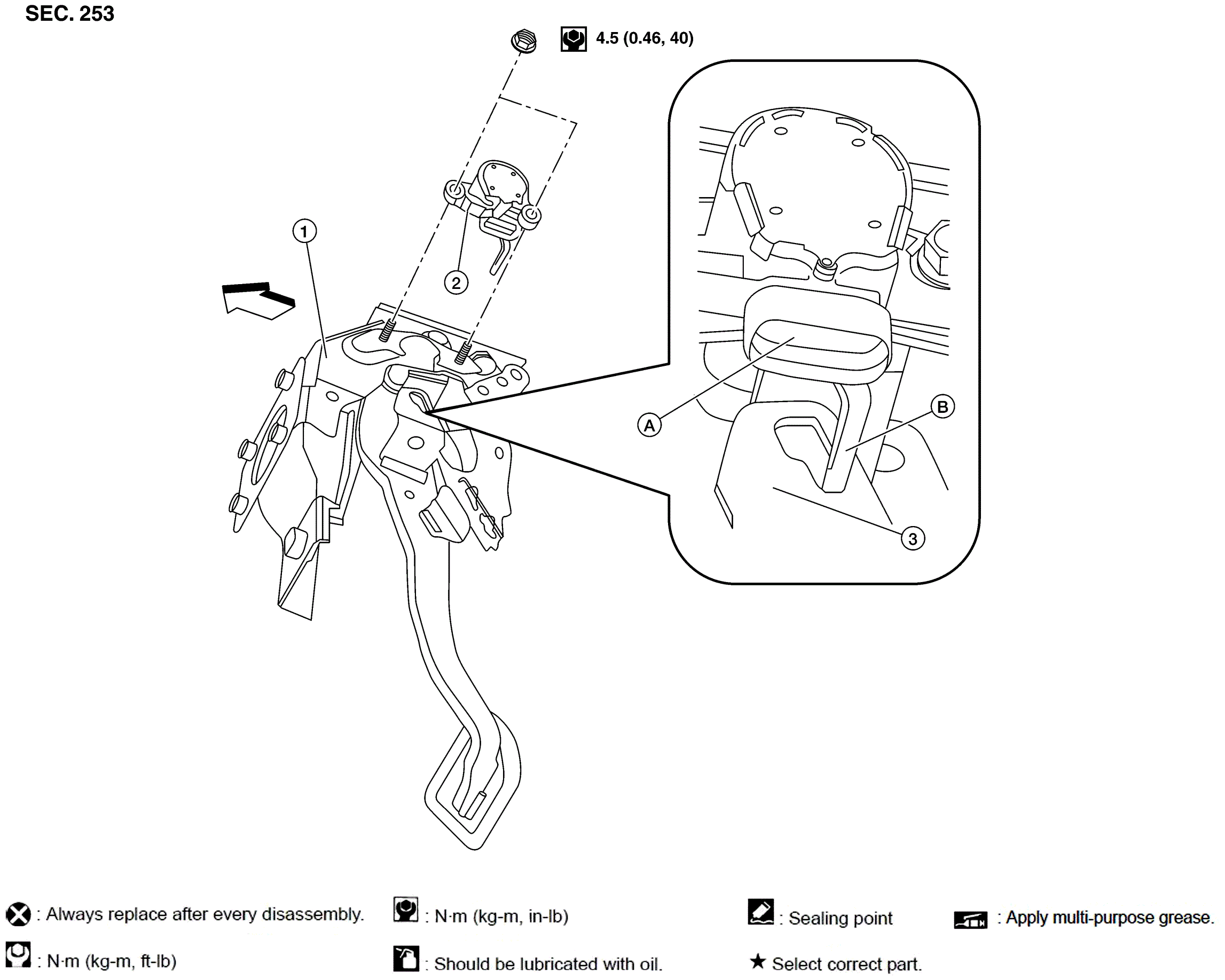

GNSAWHIA0560ZZ-560Courtesy of NISSAN NORTH AMERICA, INC.
1. Brake pedal assembly 2. Brake pedal stroke sensor 3. Brake pedal sensor bracket
A. Brake pedal stroke sensor connector B. Brake pedal stroke sensor lever ARROW Front
