Display And Warning

Vehicle condition/ Driver's operation		Action	Indication on the combination meter	Buzzer

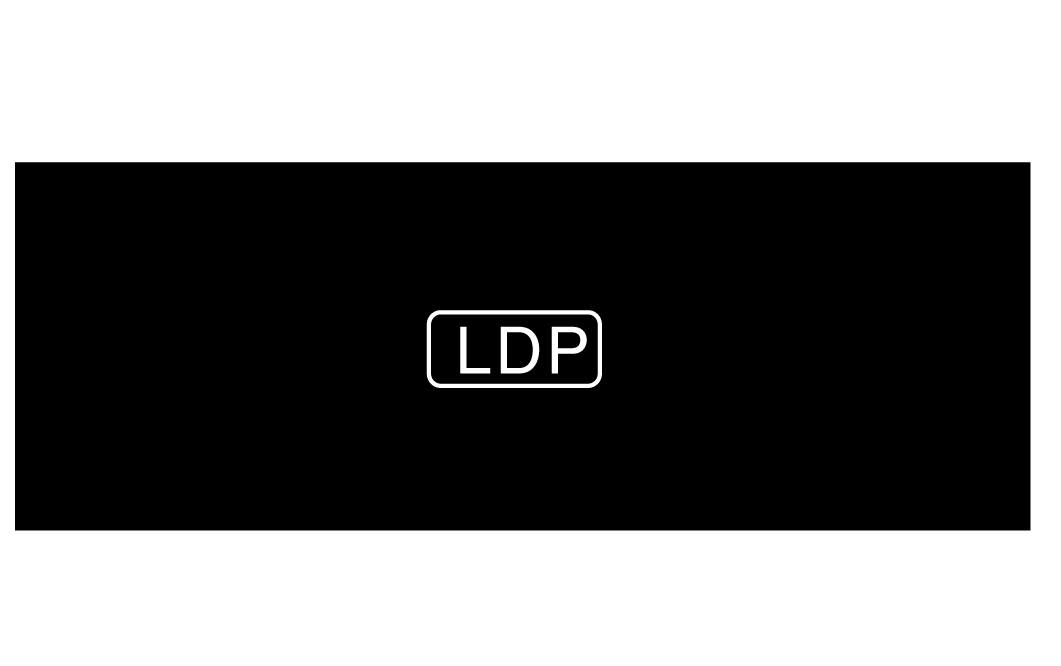

Less than Approx. 60 km/h (40 MPH)	Close to lane marker	No action	Courtesy of NISSAN NORTH AMERICA, INC. ON (green)	-

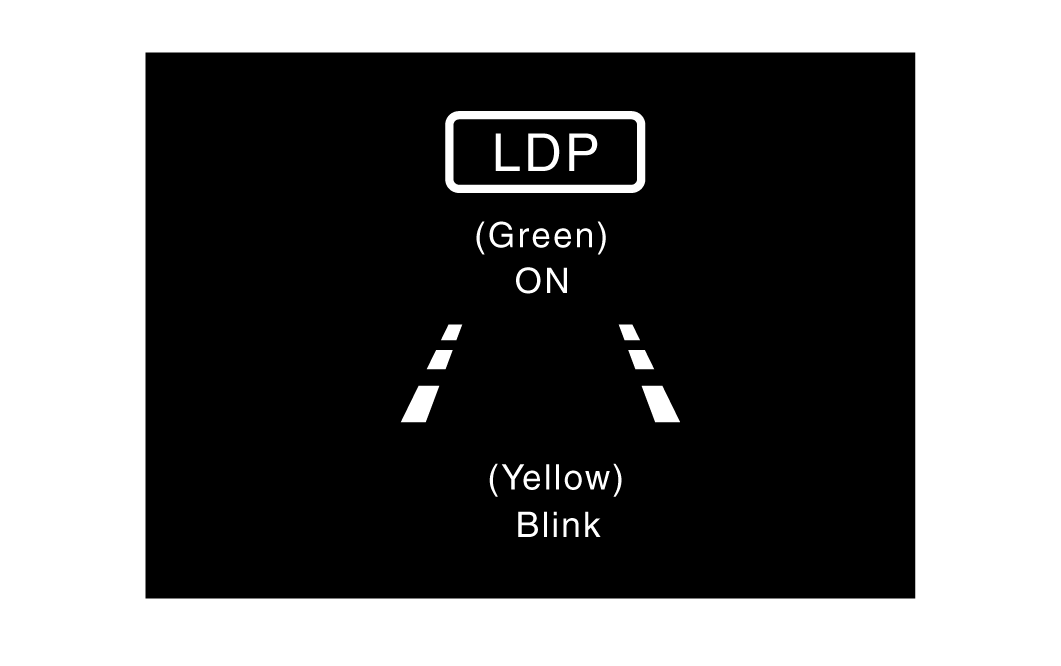

Approx. 70 km/h (45 MPH) or more	Close to lane marker	Warning and yawing Buzzer sounds Warning lamp blinks Brake control	Courtesy of NISSAN NORTH AMERICA, INC. Green →→	Short continuous beeps
	Close to lane marker Turn signal ON (Deviate side)	No action	Courtesy of NISSAN NORTH AMERICA, INC.	-
	Close to lane with soft braking	Warning Buzzer sounds Warning lamp blinks	Green (ON) Courtesy of NISSAN NORTH AMERICA, INC.	Short continuous beeps
	VDC OFF Switch OFF → ON (VDC system ON → OFF) SNOW mode switch OFF → ON Road is slippery Camera temperature high	Cancellation Buzzer sounds Each message is displayed NOTE: When dynamic driver assistance switch is ON → OFF, message is turned OFF	Each message is displayed	Beep

NOTE:

After the operating conditions are satisfied, the control continues until the vehicle speed reaches approximately 60 km/h (40 MPH). Refer to SYSTEM DESCRIPTION .
