System Description
>>
Audio System
>>
System Description
>>
System Diagram
>>
With BOSE Audio And BOSE CENTERPOINT Audio Systems
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.

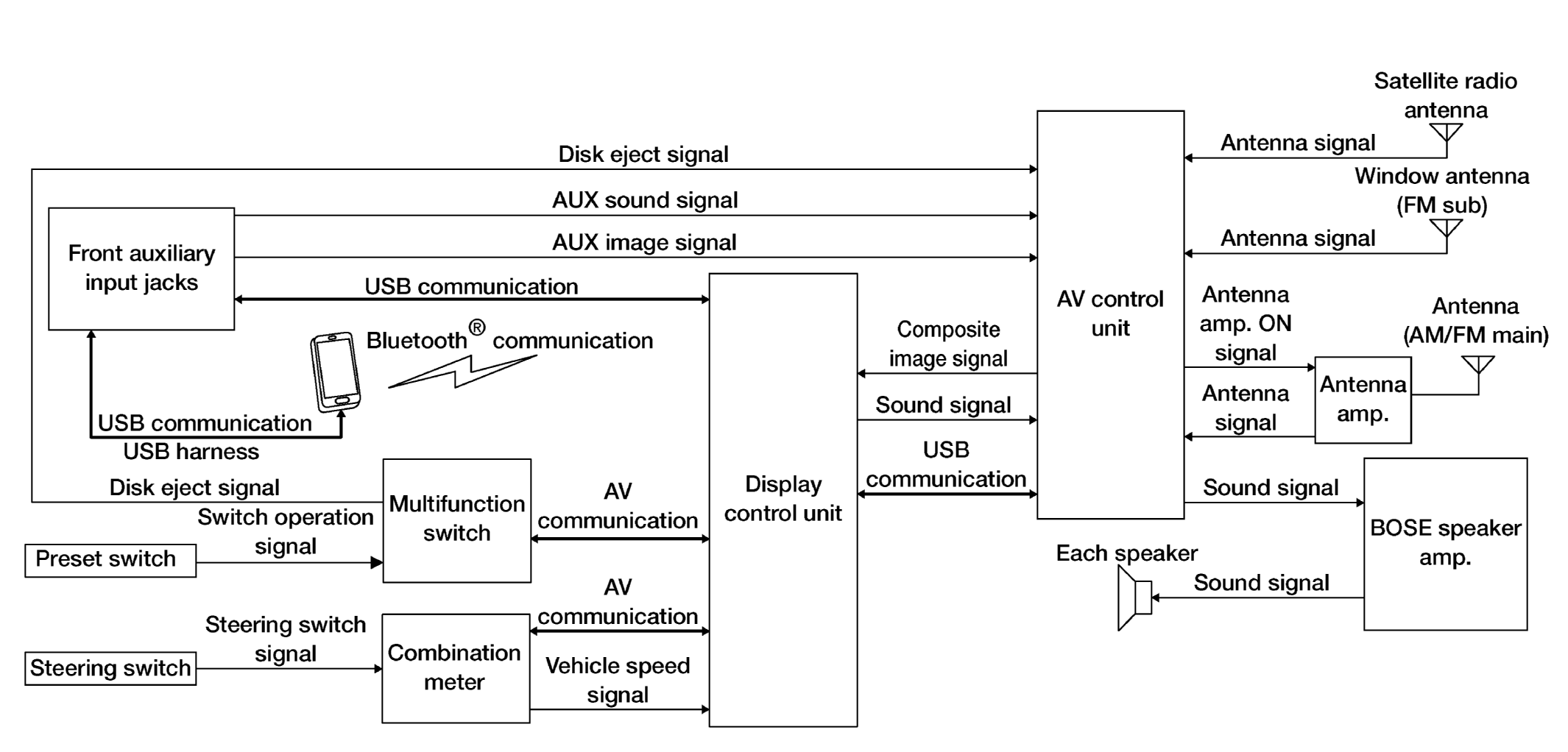

With BOSE Audio And BOSE CENTERPOINT Audio Systems
Courtesy of NISSAN NORTH AMERICA, INC.
Courtesy of NISSAN NORTH AMERICA, INC.
