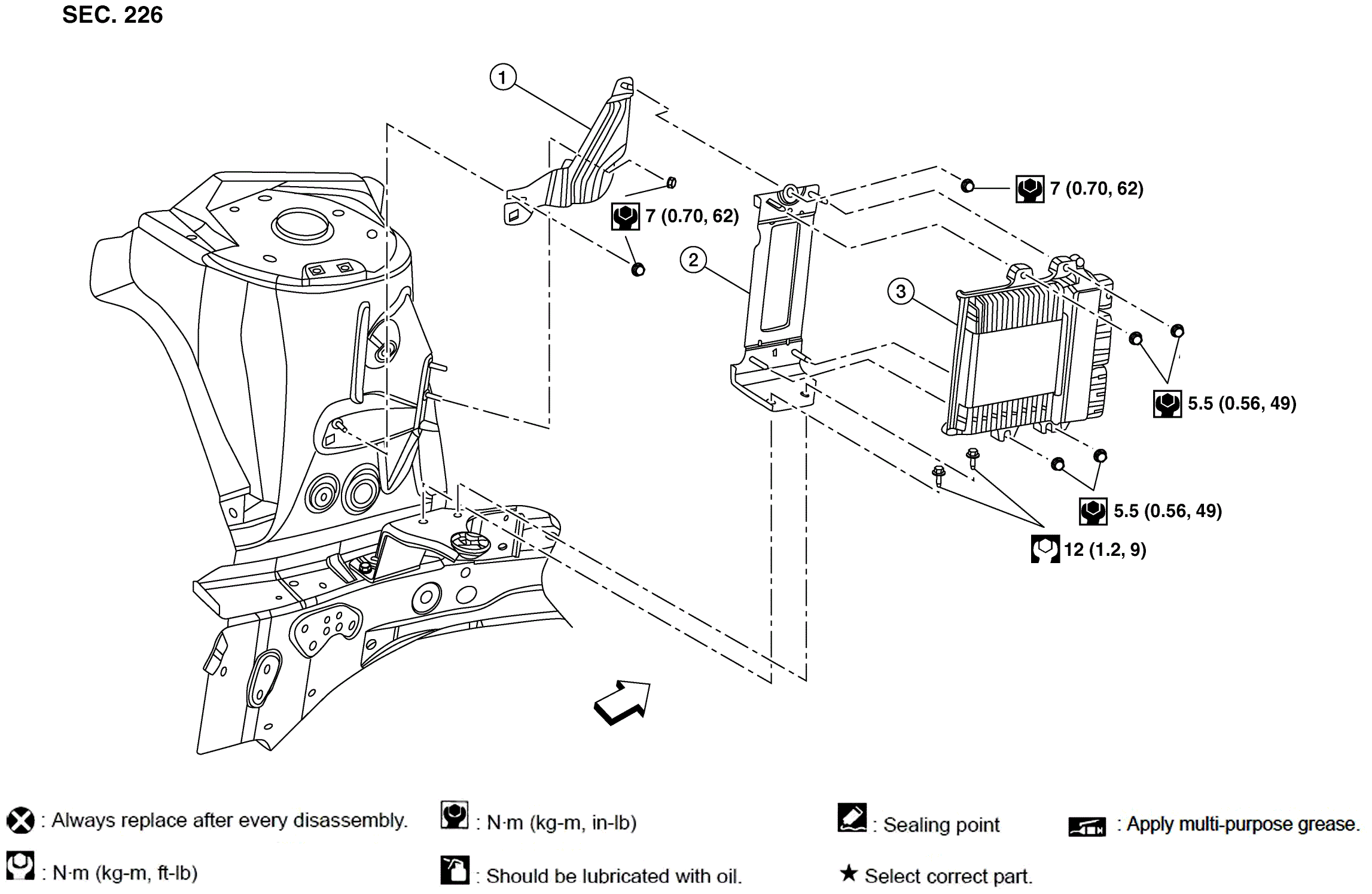

Exploded View With Torque Specifications
Courtesy of NISSAN NORTH AMERICA, INC.
1.
Bracket
2.
ECM bracket
3.
ECM
Front
Courtesy of NISSAN NORTH AMERICA, INC.
