Component Location

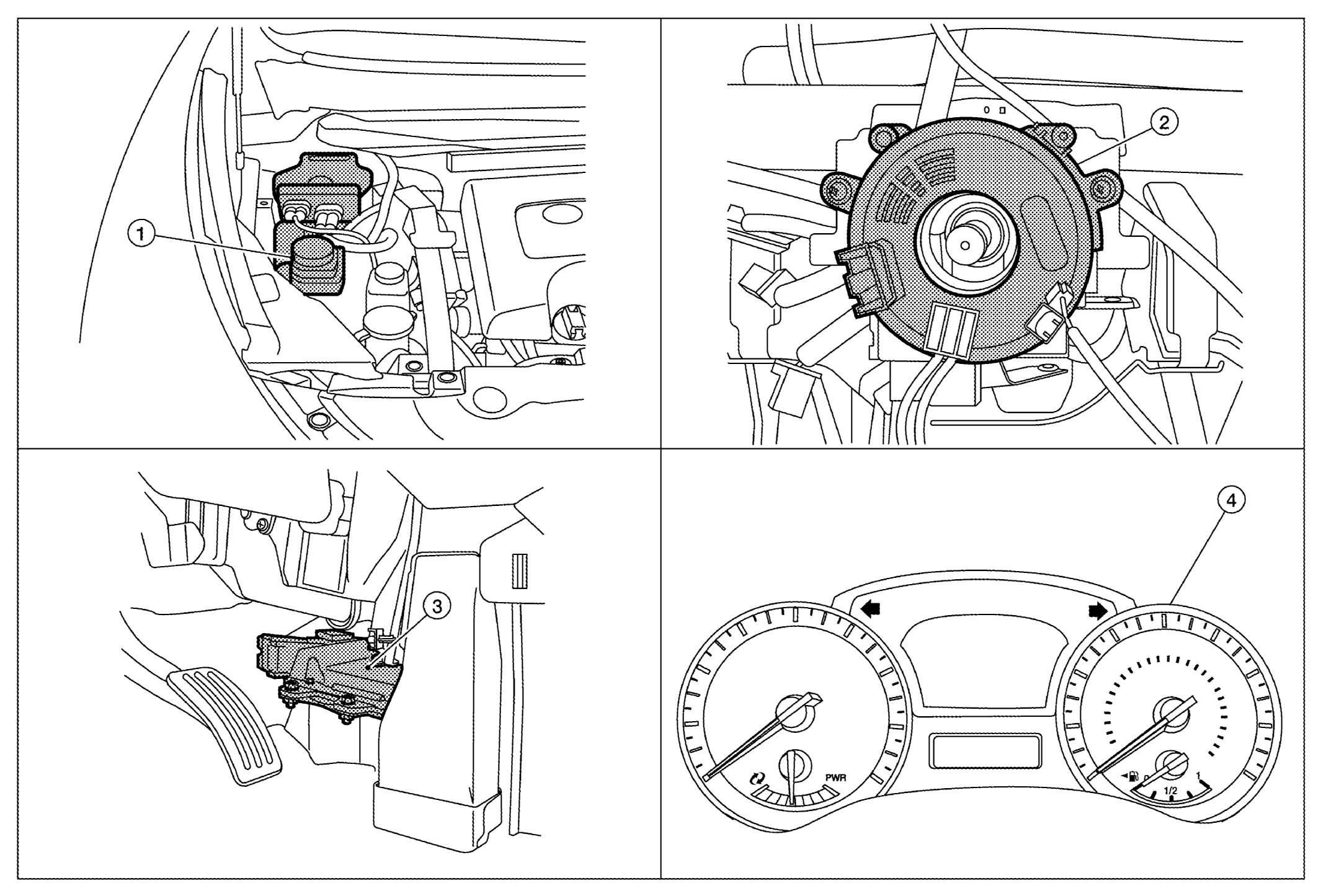

GNSALGIA0169ZZ-169Courtesy of NISSAN NORTH AMERICA, INC.
1. Power steering oil pump assembly
(view from the right side of the engine compartment)		 2. Steering angle sensor
(view with the steering wheel removed)		 3. HPCM
4. Combination meter
