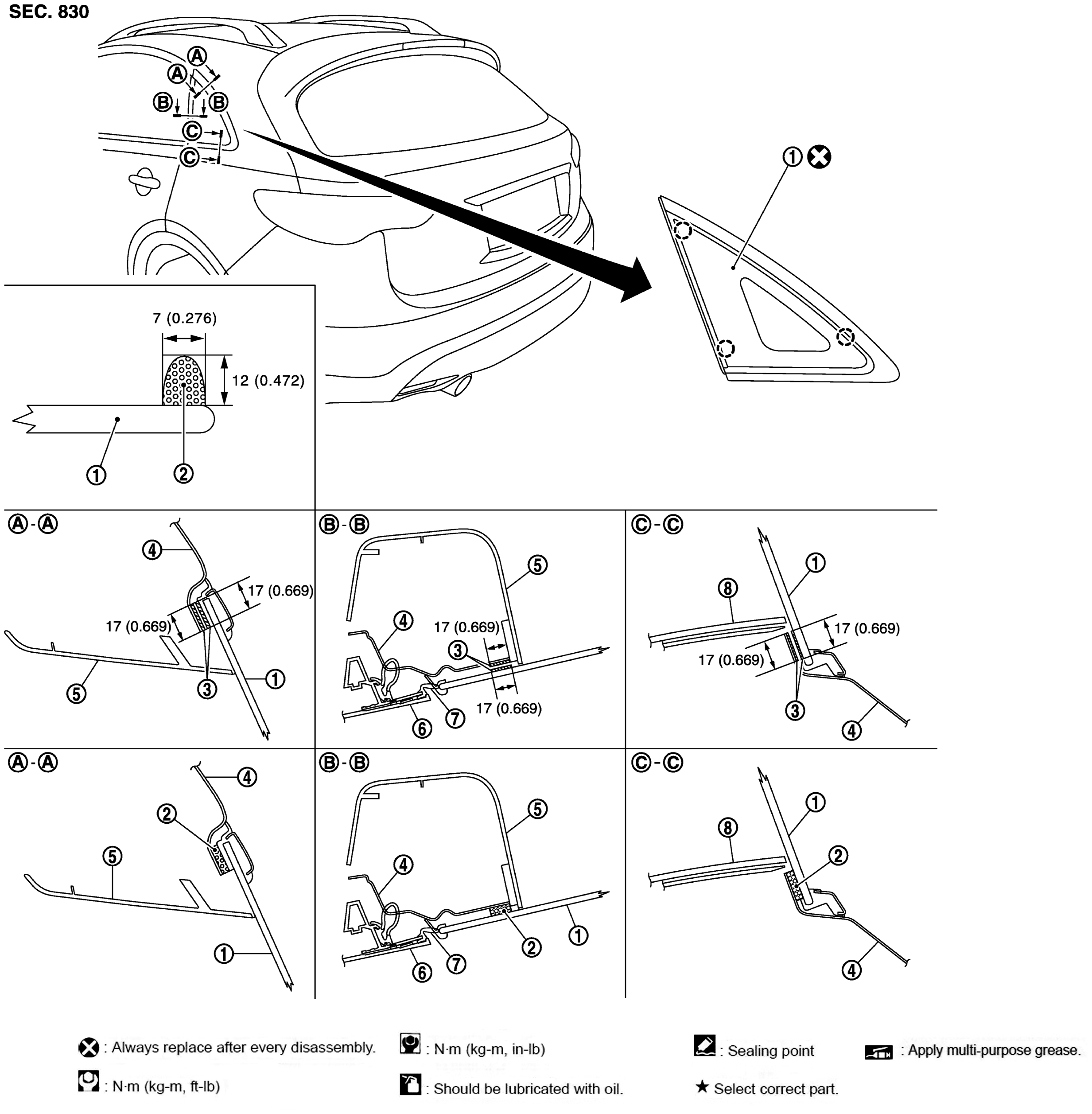

Exploded View With Torque Specifications

Courtesy of NISSAN NORTH AMERICA, INC.

1.	Side Window Glass	2.	Adhesive	3.	Primer
4.	Body Side Outer Panel	5.	Rear Pillar Base	6.	Rear Door Sash Cover
7.	Rear Door Weather-Strip	8.	Luggage Finisher Upper Base
	: Clip
Unit	: mm (in)
	: Always replace after every disassembly.
