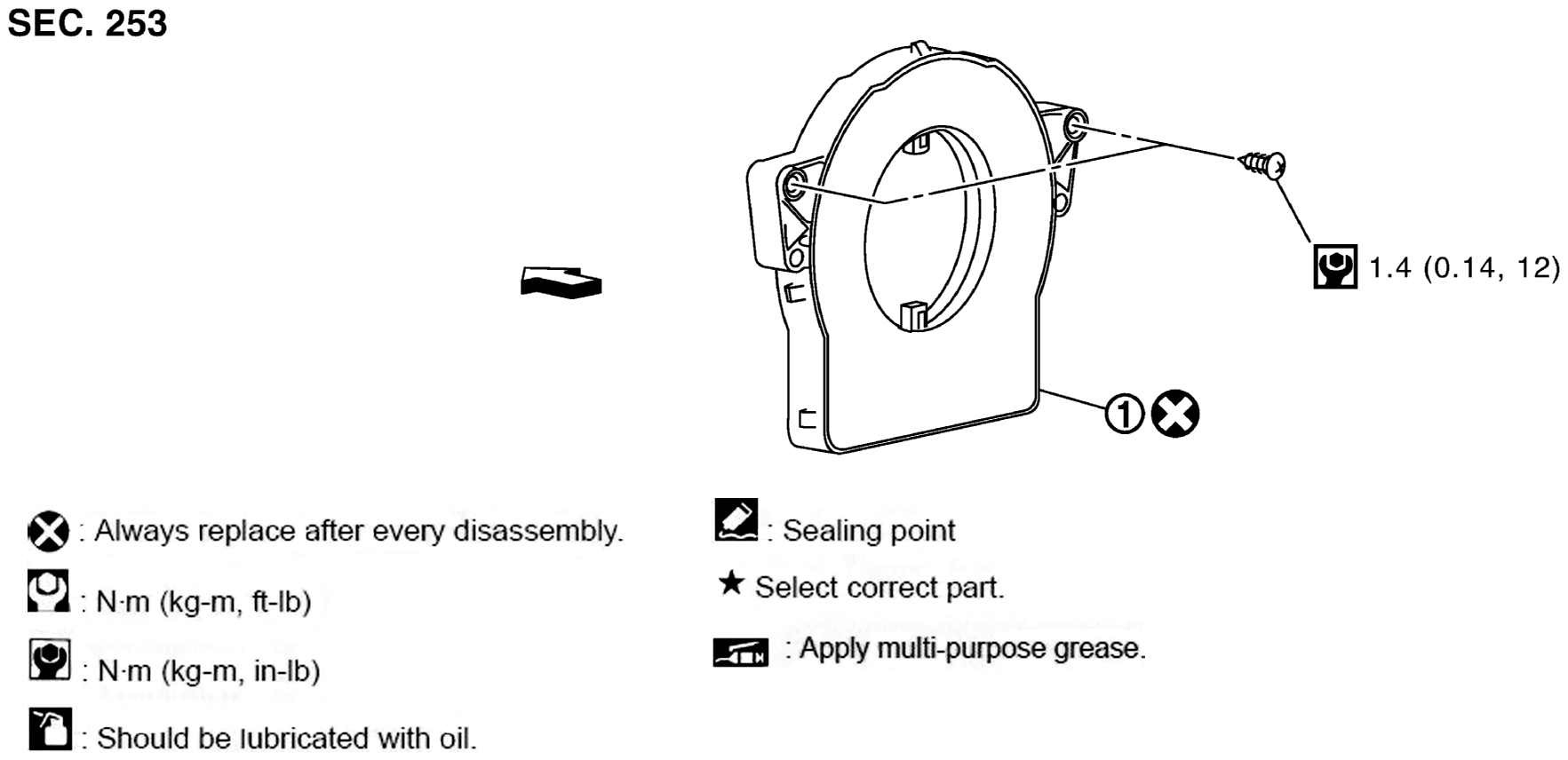

Exploded View

GNSJSFIA0237GB-237Courtesy of NISSAN NORTH AMERICA, INC.
1. Steering Angle Sensor
ARROW : Vehicle front
Refer to COMPONENTS for symbols in the figure.
