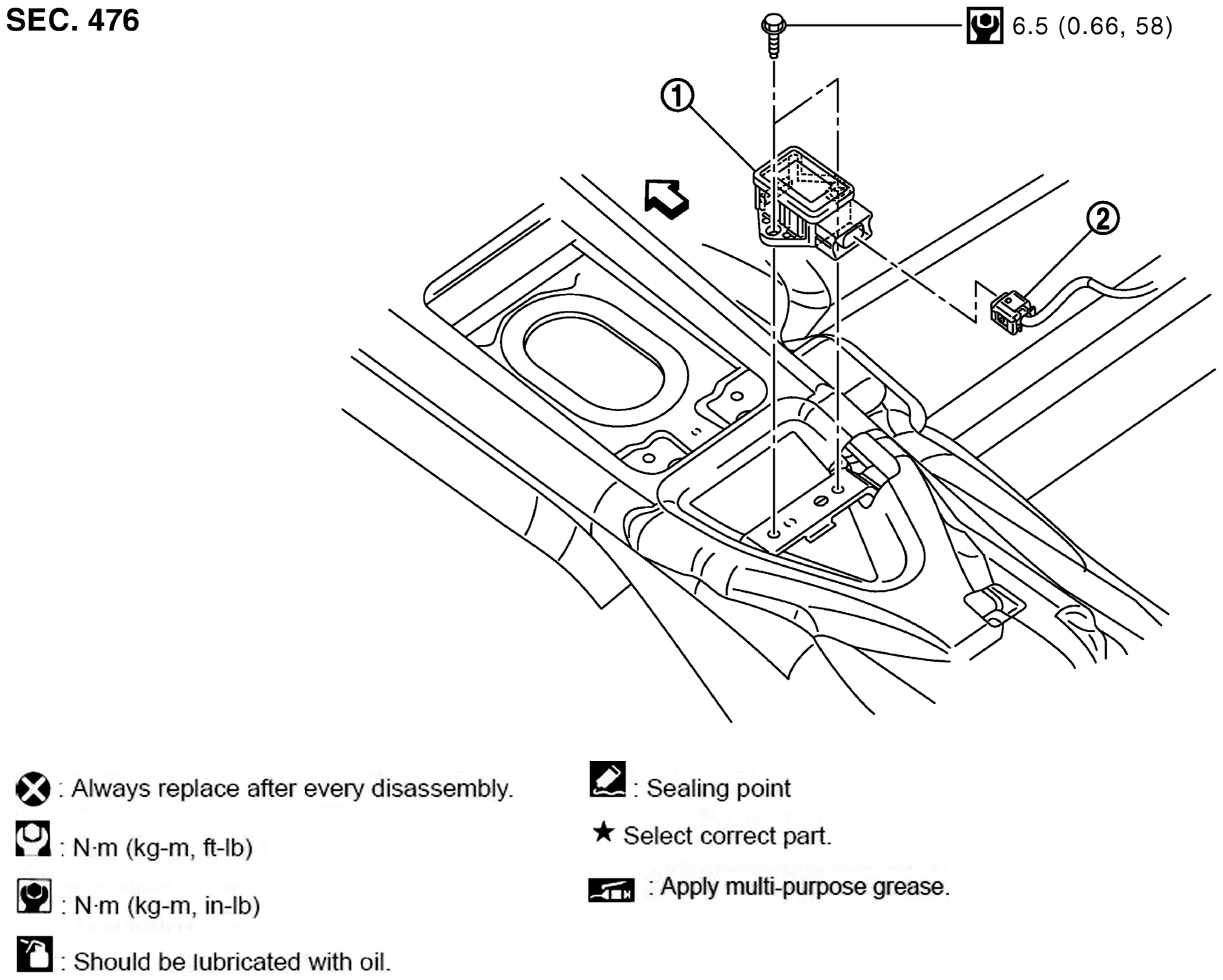

Exploded View

GNSJSFIA0197GB-197Courtesy of NISSAN NORTH AMERICA, INC.
1. Yaw Rate/Side G Sensor 2. Harness connector
ARROW : Vehicle front
Refer to COMPONENTS for symbols in the figure.
