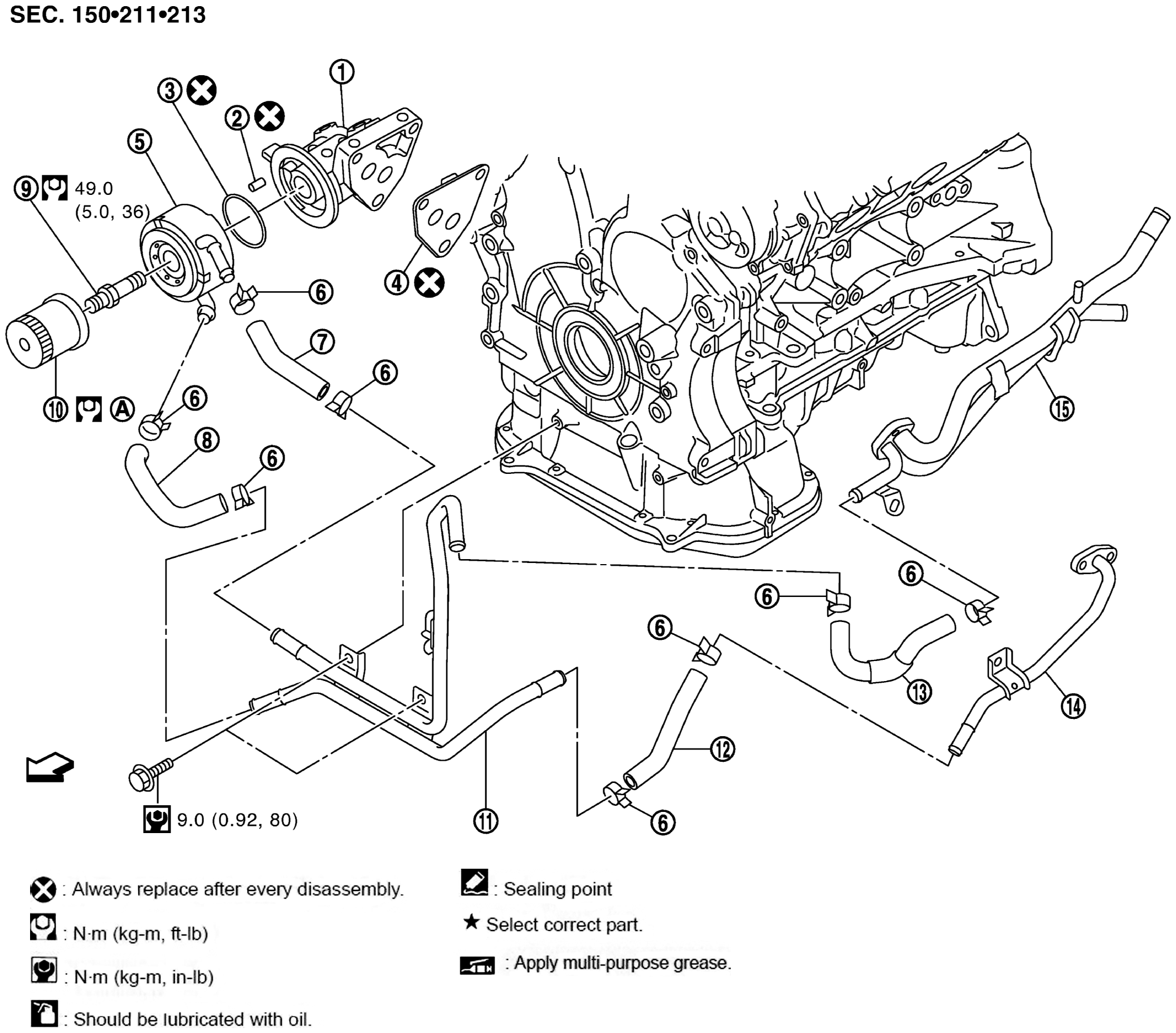

Exploded View
| 1. | Oil filter bracket | 2. | Relief valve | 3. | O-ring |
| 4. | Gasket | 5. | Oil cooler | 6. | Clamp |
| 7. | Water hose | 8. | Water hose | 9. | Connector bolt |
| 10. | Oil filter | 11. | Water pipe | 12. | Water hose |
| 13. | Water hose | 14. | Water pipe | 15. | Heater pipe |
| A. | Comply with the installation procedure when tightening. Refer to REMOVAL AND INSTALLATION | ||||
| : Engine front | |||||
| Refer to COMPONENTS for symbols in the figure. | |||||
