Exploded View

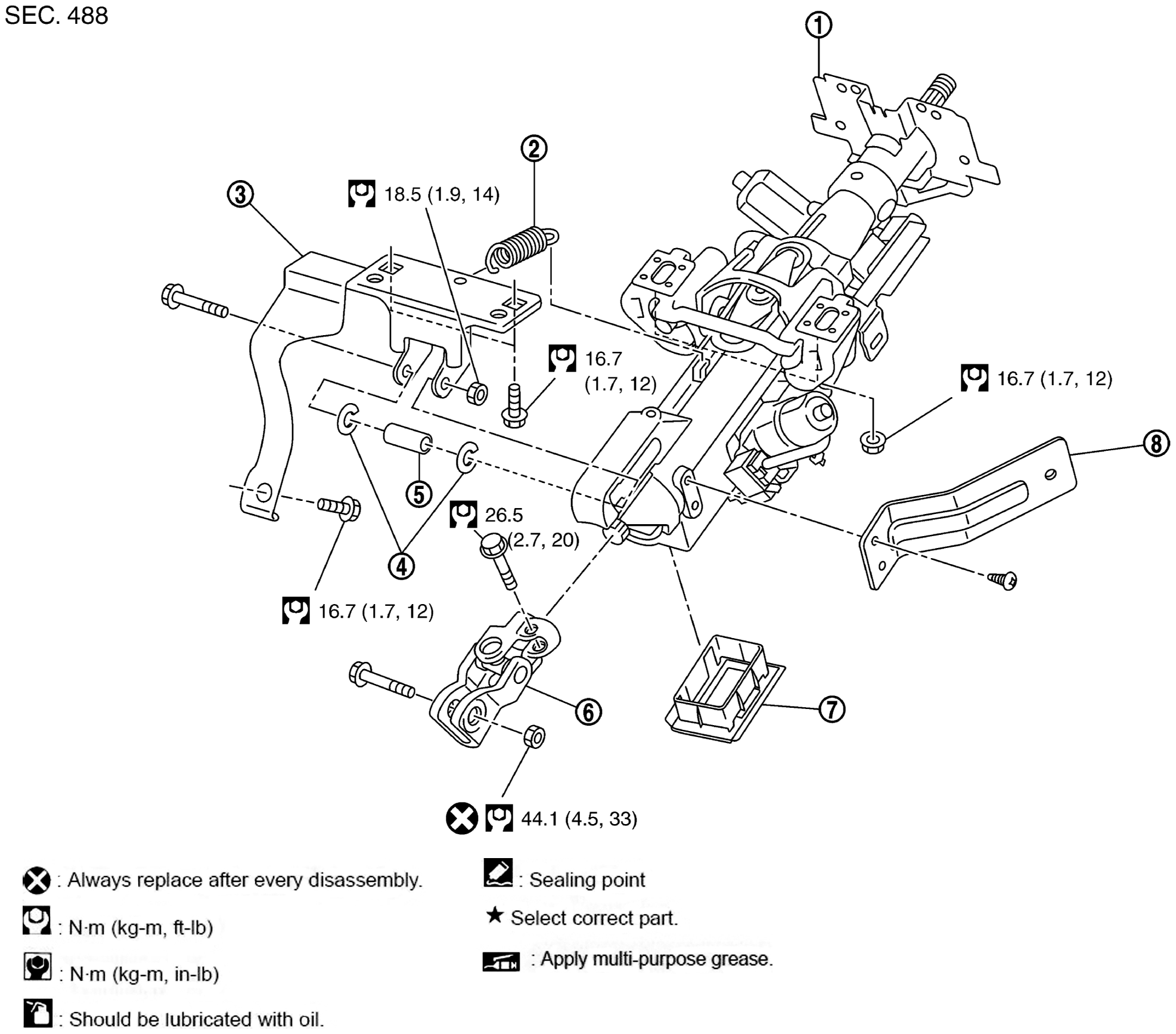

Fig 1: Steering Column W/Electric Motor With Torque Specifications
Courtesy of NISSAN NORTH AMERICA, INC.
1.
Steering column assembly
2.
Spring
3.
Bracket
4.
Spacer
5.
Collar
6.
Upper joint
7.
Dust cover
8.
Bracket
: Always replace after every disassembly.
:N•m (kg - m, ft - lb)
