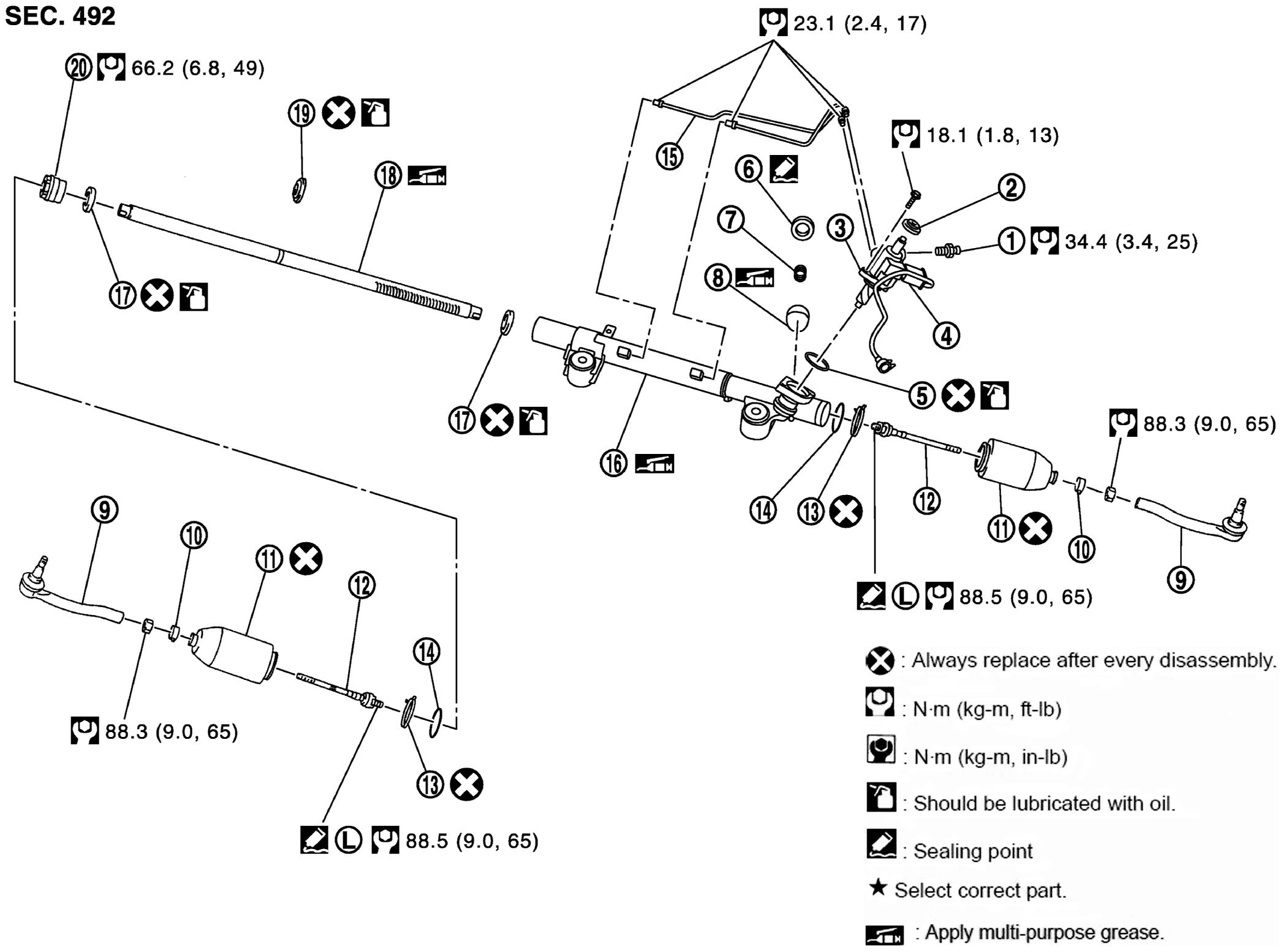

| 1. |
Low pressure piping |
2. |
Rear cover cap |
3. |
Gear-sub assembly |
| 4. |
Power steering solenoid valve |
5. |
O-ring |
6. |
Adjusting screw |
| 7. |
Spring |
8. |
Retainer |
9. |
Outer socket |
| 10. |
Boot clamp |
11. |
Boot |
12. |
Inner socket |
| 13. |
Boot clamp (stainless wire) |
14. |
Spacer |
15. |
Cylinder tubes |
| 16. |
Gear housing assembly |
17. |
Rack oil seal |
18. |
Rack assembly |
| 19. |
Rack Teflon ring |
20. |
End cover assembly |
|
|
 |
: Always replace after every disassembly. |
 |
:N•m (kg - m, ft - lb) |
: Apply power steering fluid. |
: Apply Genuine High Performance Thread Sealant or equivalent. Refer to RECOMMENDED CHEMICAL PRODUCTS AND SEALANTS
. |
: Apply Genuine Silicone RTV or equivalent. Refer to RECOMMENDED CHEMICAL PRODUCTS AND SEALANTS
. |
: Apply multi-purpose grease. |
