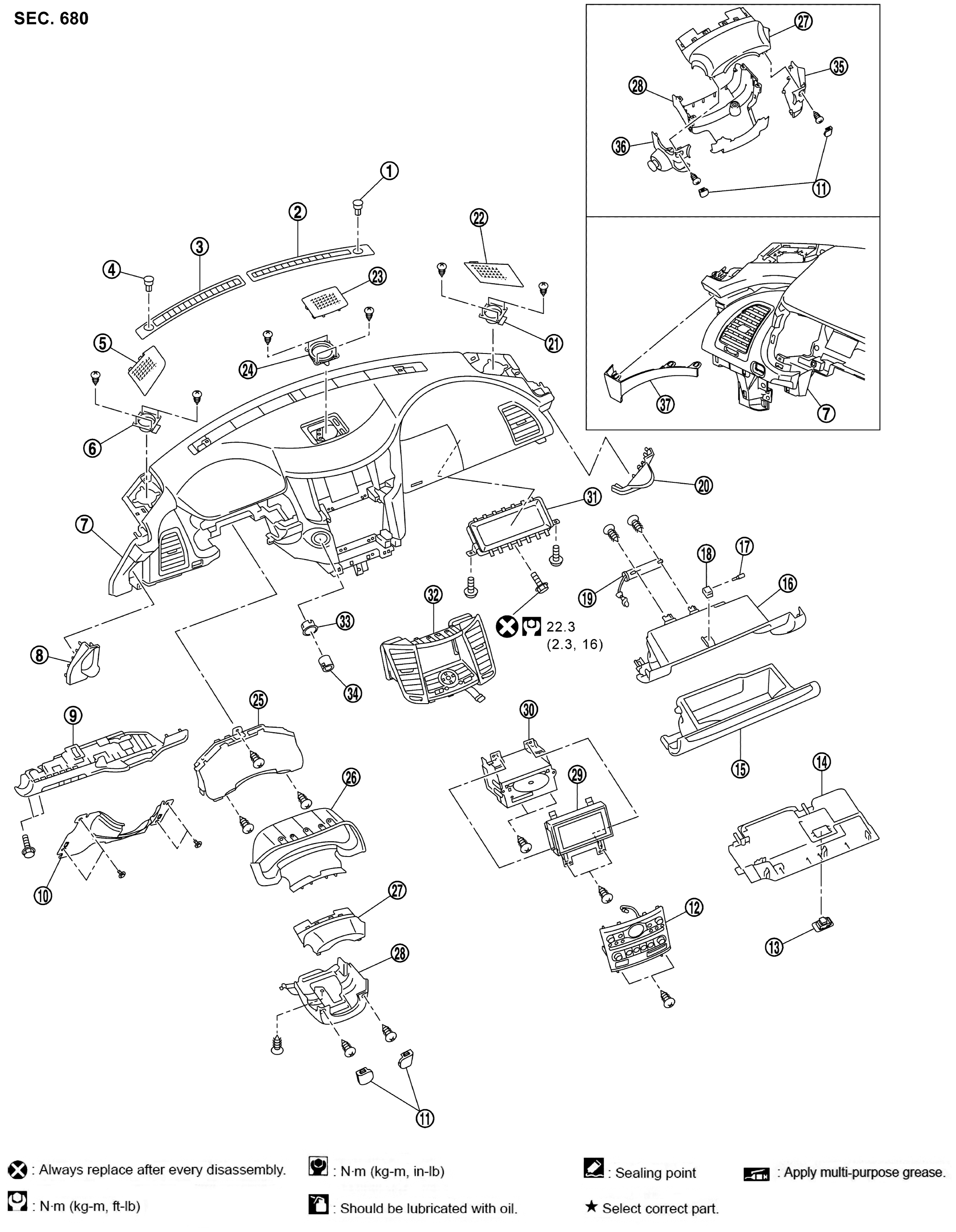

| 1. |
Optical Sensor |
2. |
Front Defroster Grille RH |
3. |
Front Defroster Grille LH |
| 4. |
Sunload Sensor |
5. |
Speaker Grille LH |
6. |
Front Squawker LH |
| 7. |
Instrument Panel Assembly |
8. |
Instrument Side Finisher LH |
9. |
Instrument Lower Panel LH |
| 10. |
Knee Protector |
11. |
Steering Column Mask |
12. |
Cluster Lid C |
| 13. |
Illumination Lamp |
14. |
Instrument Lower Cover RH |
15. |
Glove Box Assembly |
| 16. |
Instrument Lower Panel RH |
17. |
Socket And Bulb |
18. |
Illumination Lamp |
| 19. |
Glove Box Damper |
20. |
Instrument Side Finisher RH |
21. |
Front Squawker RH |
| 22. |
Speaker Grille RH |
23. |
Center Speaker Grille |
24. |
Center Speaker |
| 25. |
Combination Meter |
26. |
Cluster Lid A |
27. |
Steering Column Upper Cover |
| 28. |
Steering Column Lower Cover |
29. |
Display Unit |
30. |
AV Control Unit (Audio Unit) |
| 31. |
Passenger Air Bag Module |
32. |
Cluster Lid D |
33. |
Ignition Switch Cover |
| 34. |
Push Button Ignition Switch |
35. |
Steering Column Side Cover RH |
36. |
Steering Column Side Cover LH |
| 37. |
Instrument Finisher A |
|
|
|
|
 |
: Always replace after every disassembly. |
 |
: N•m (kg - m, ft - lb) |
