Exploded View

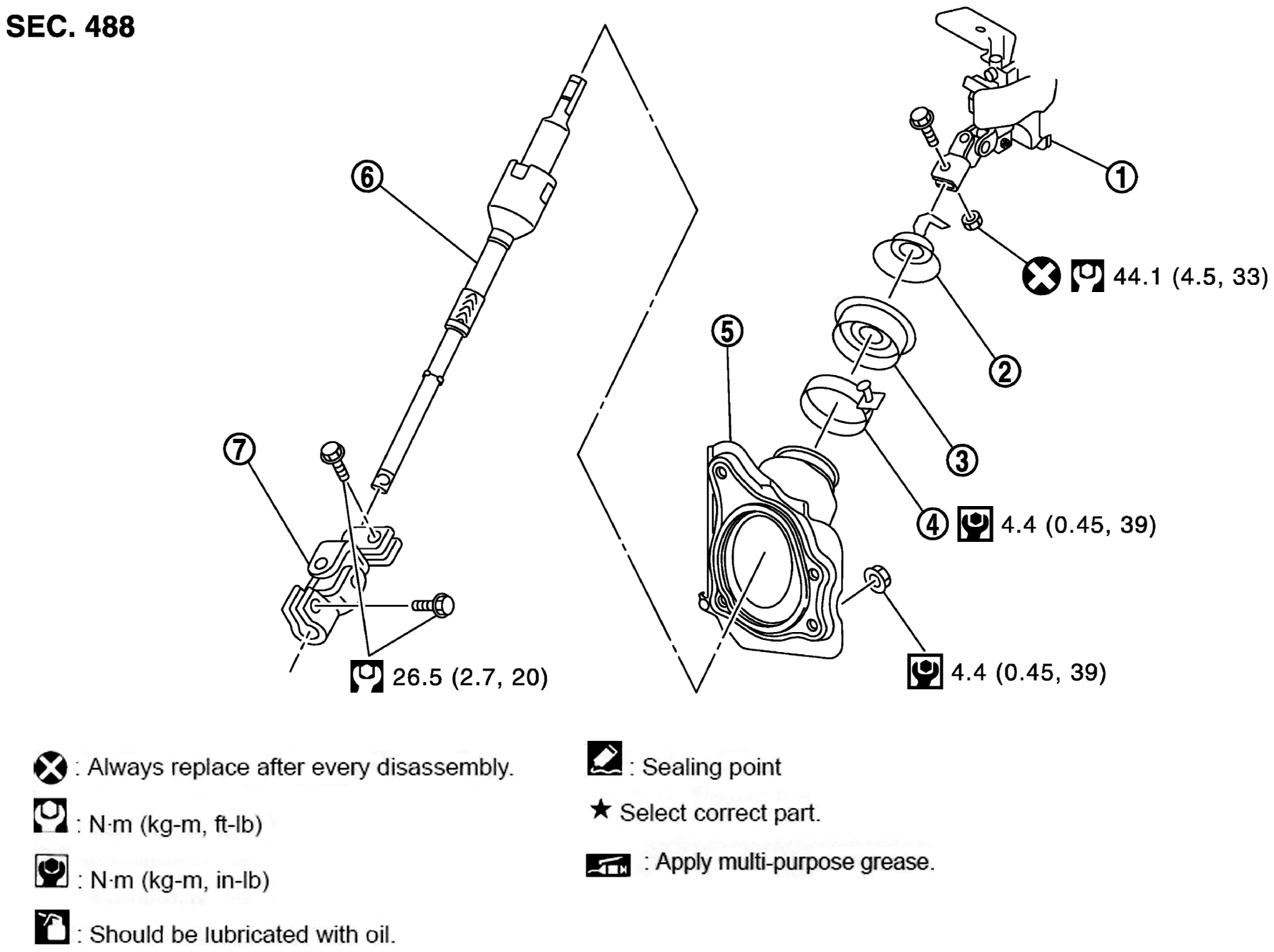

Fig 1: Lower Shaft With Torque Specifications

Courtesy of NISSAN NORTH AMERICA, INC.

1.	Steering column assembly	2.	Collar	3.	Hole cover seal
4.	Clamp	5.	Hole cover	6.	Lower shaft
7.	Lower joint
	: Always replace after every disassembly.
	:N•m (kg - m, ft - lb)
	:N•m (kg - m, in - lb)
