Engine Control System: Wiring Diagram

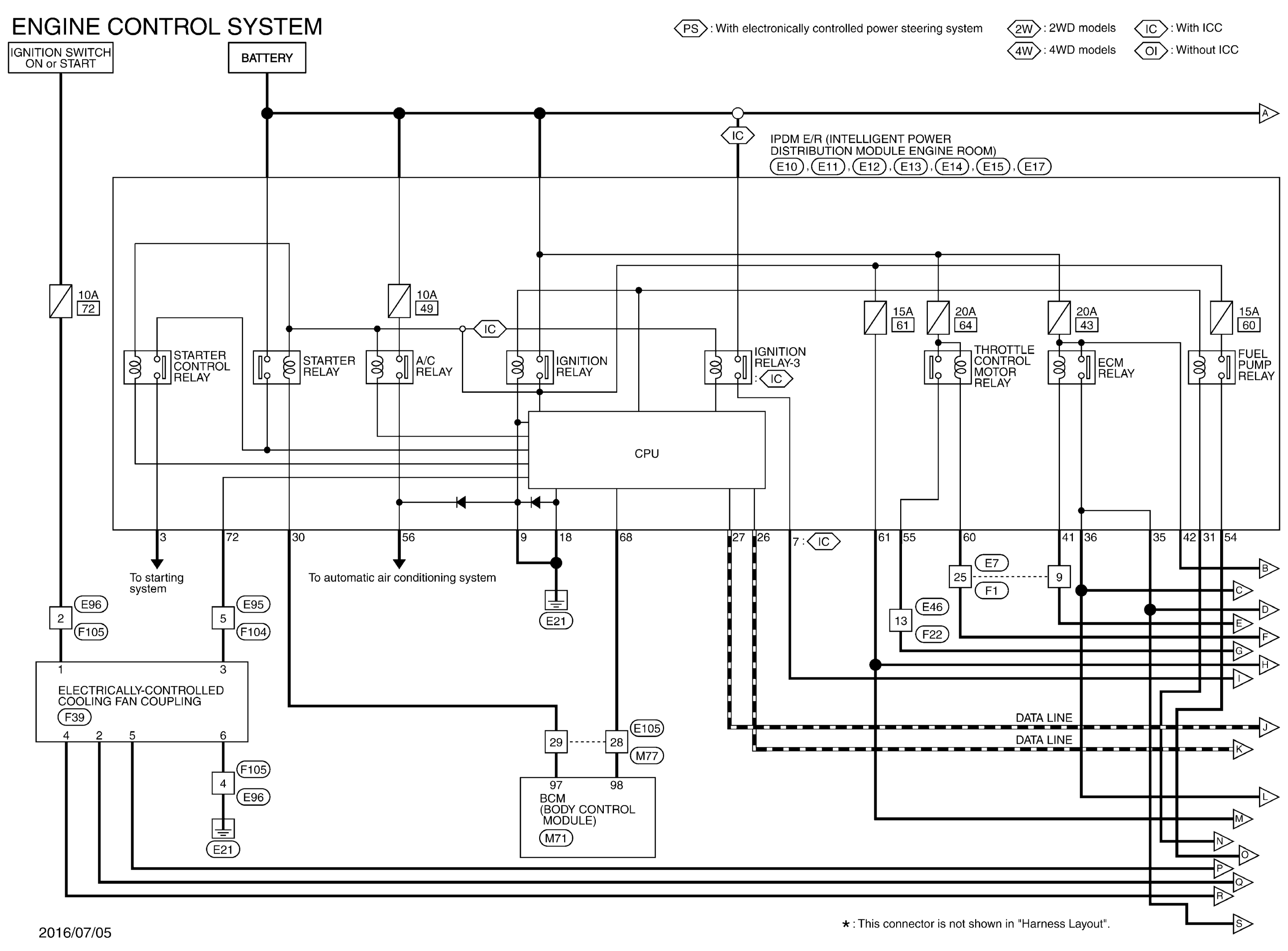

GNSJRBWE1705GB-705

Courtesy of NISSAN NORTH AMERICA, INC.

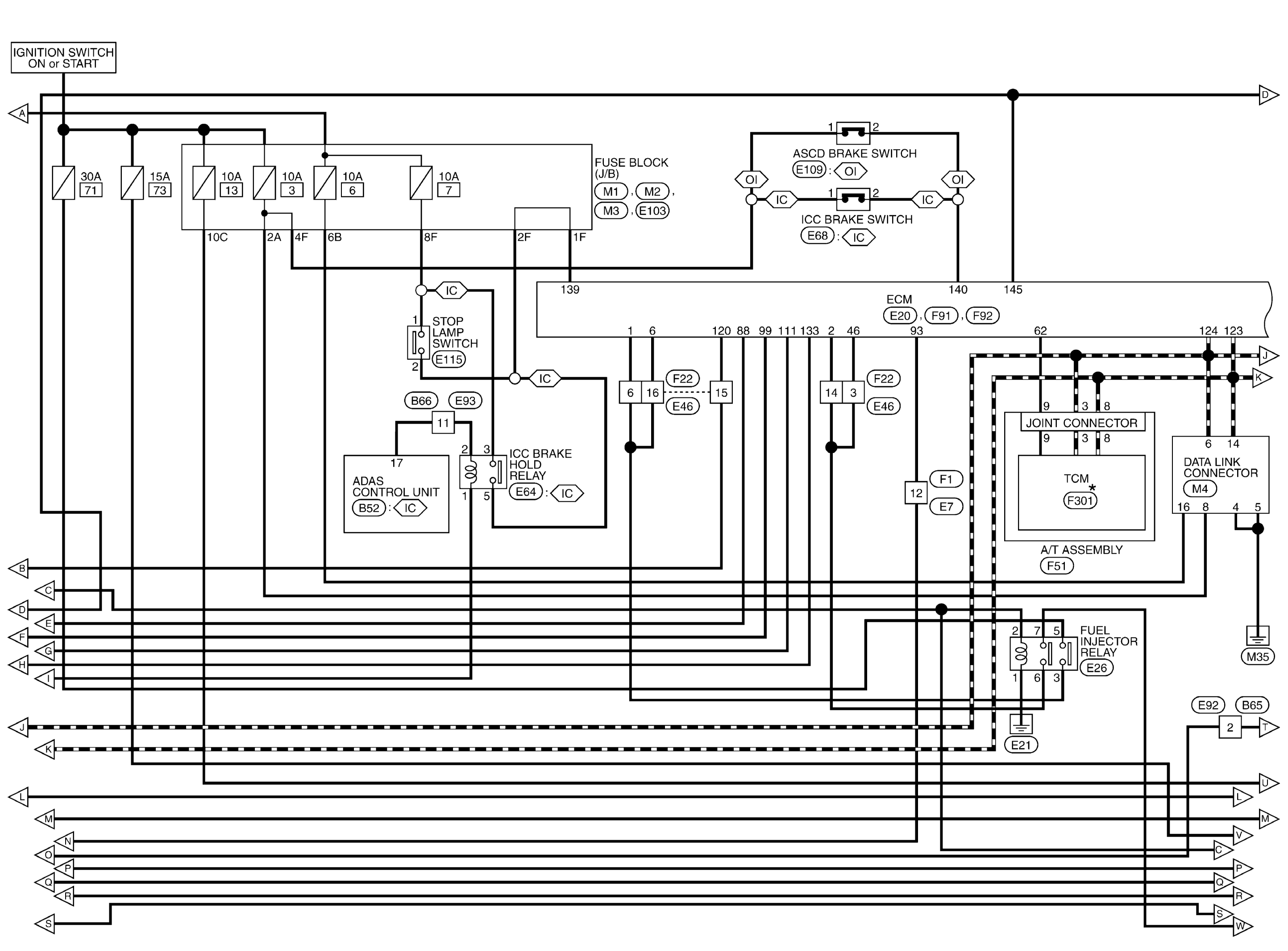

GNSJRBWE1706GB-706

Courtesy of NISSAN NORTH AMERICA, INC.

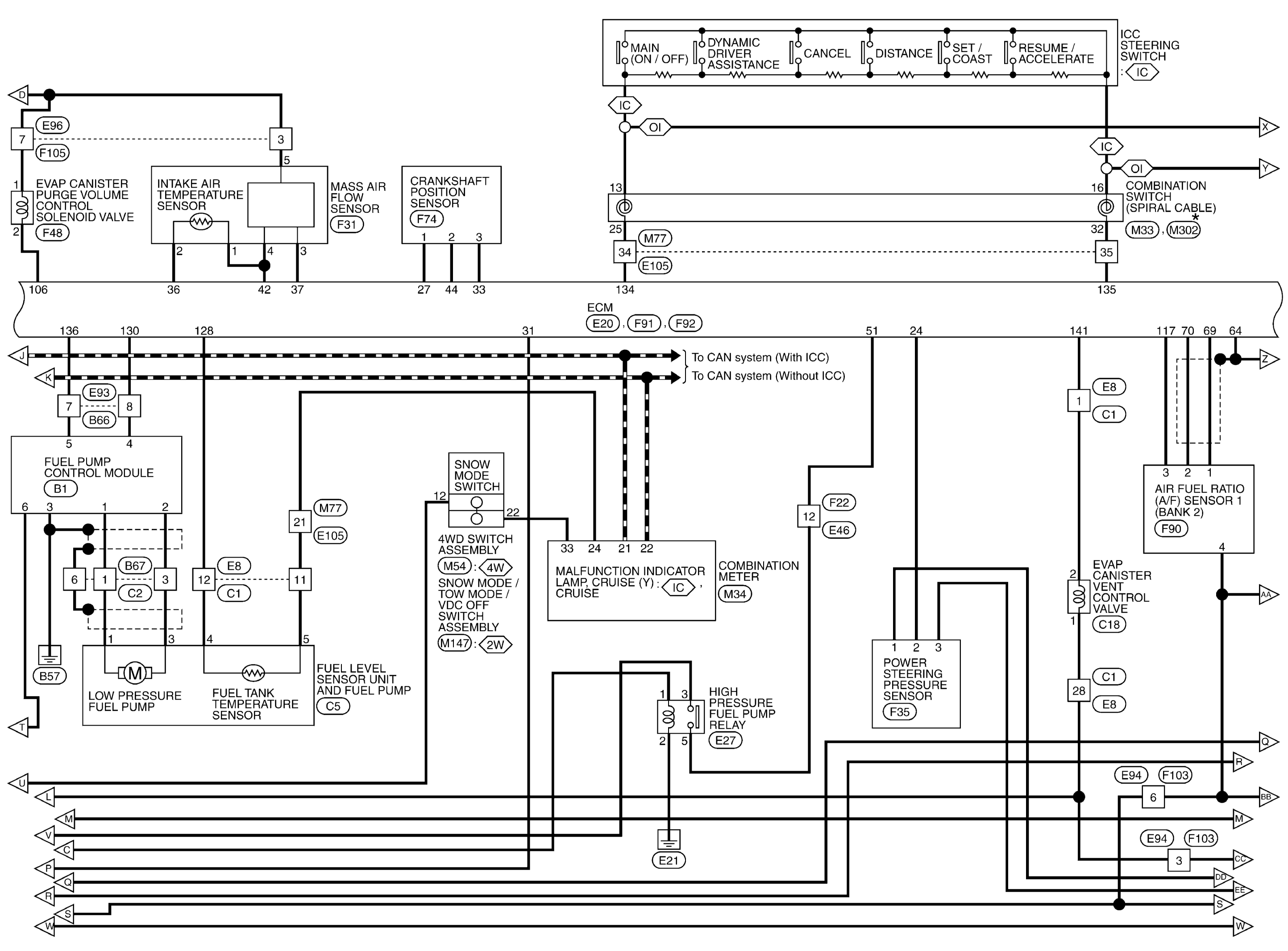

GNSJRBWE1707GB-707

Courtesy of NISSAN NORTH AMERICA, INC.

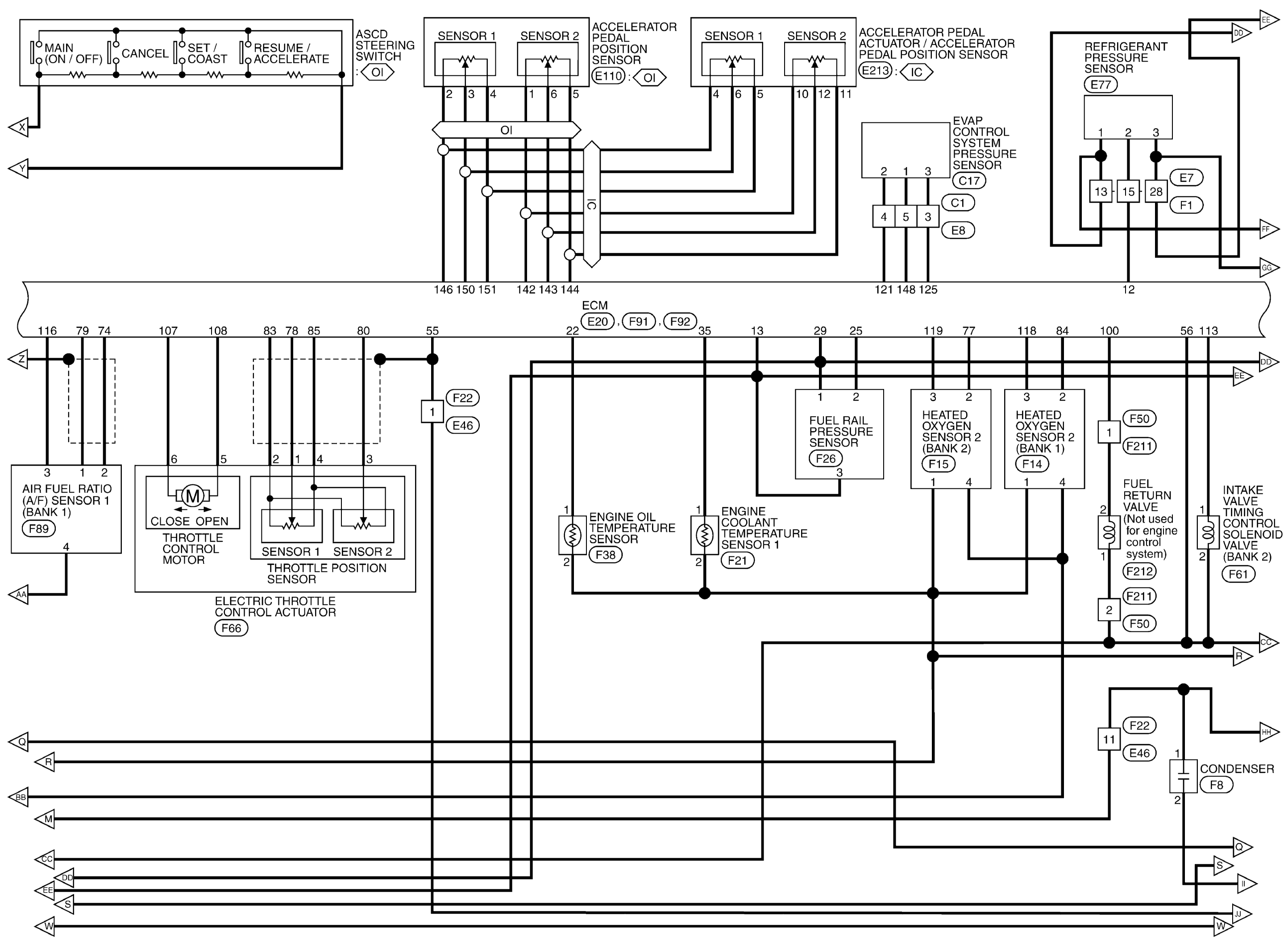

GNSJRBWE1708GB-708

Courtesy of NISSAN NORTH AMERICA, INC.

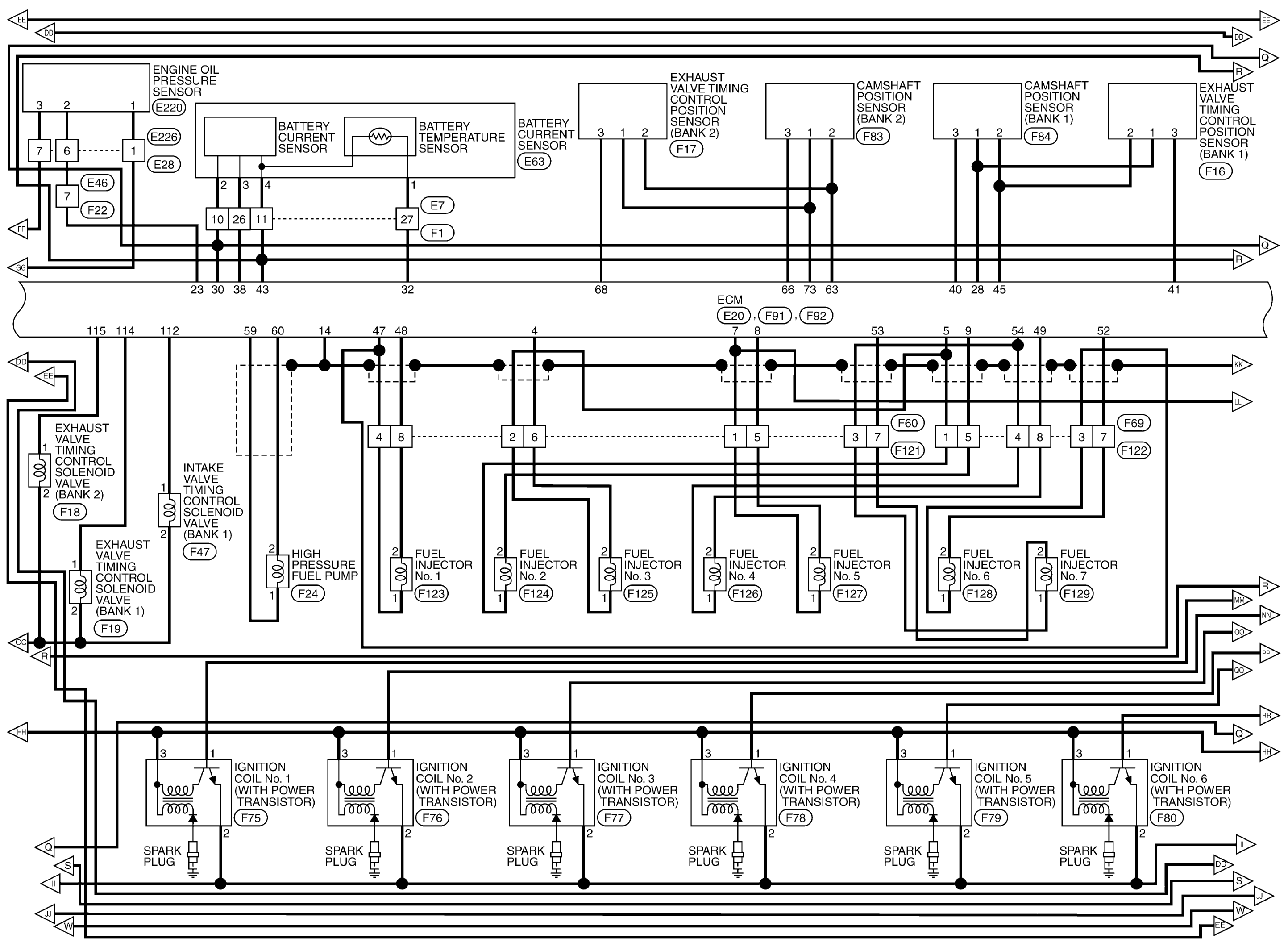

GNSJRBWE1709GB-709

Courtesy of NISSAN NORTH AMERICA, INC.

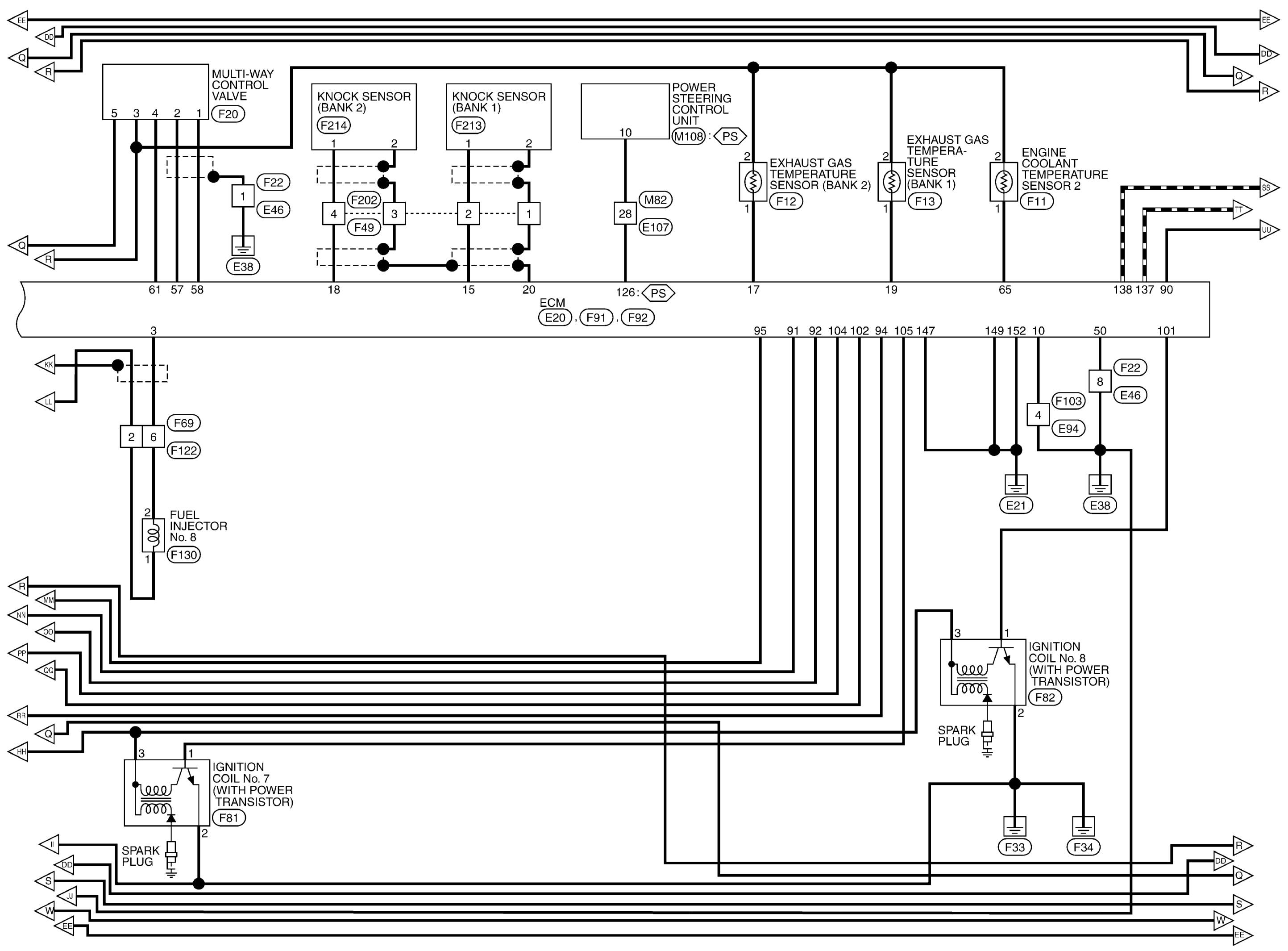

GNSJRBWE1710GB-710

Courtesy of NISSAN NORTH AMERICA, INC.

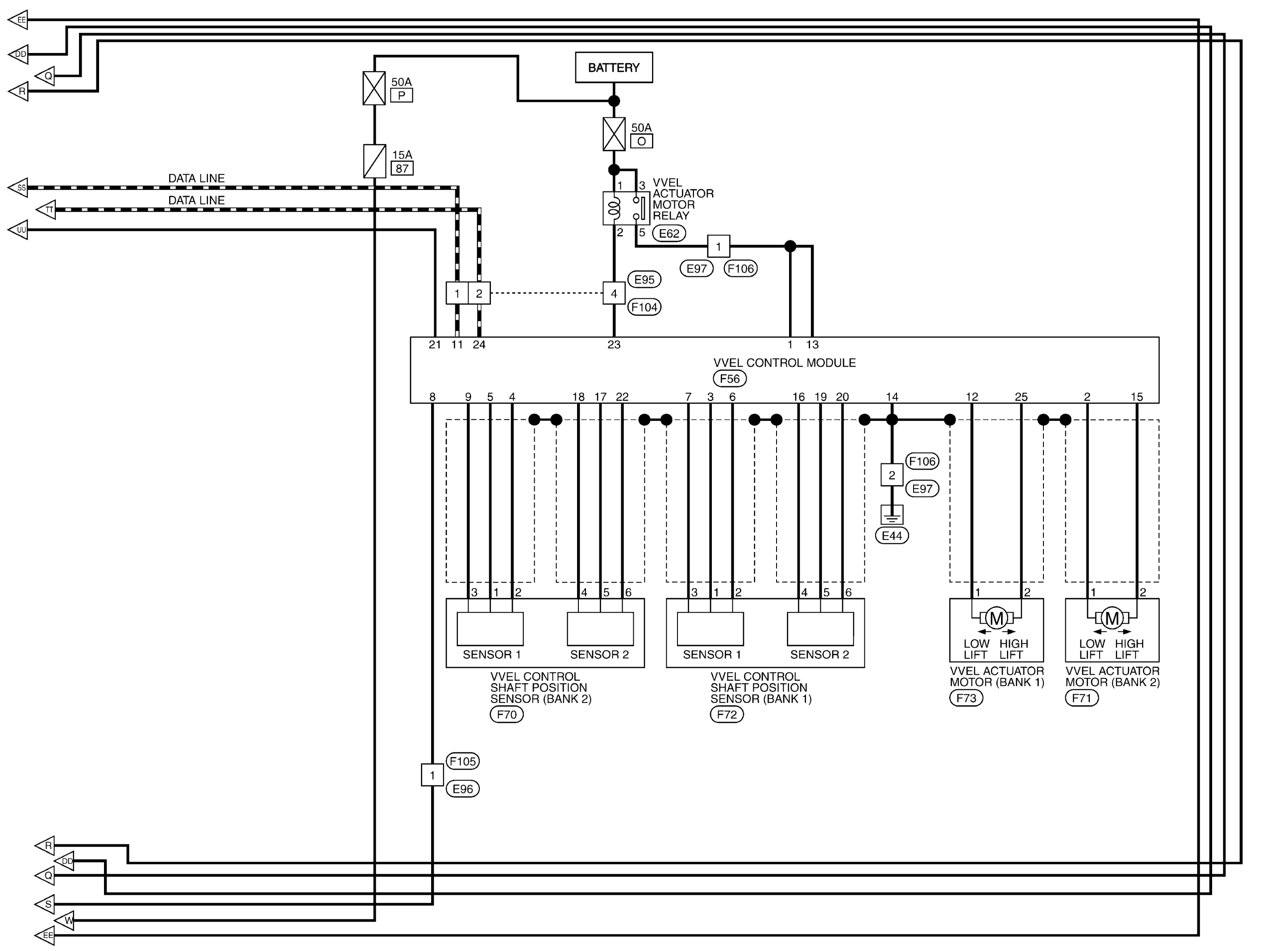

GNSJRBWE1711GB-711

Courtesy of NISSAN NORTH AMERICA, INC.

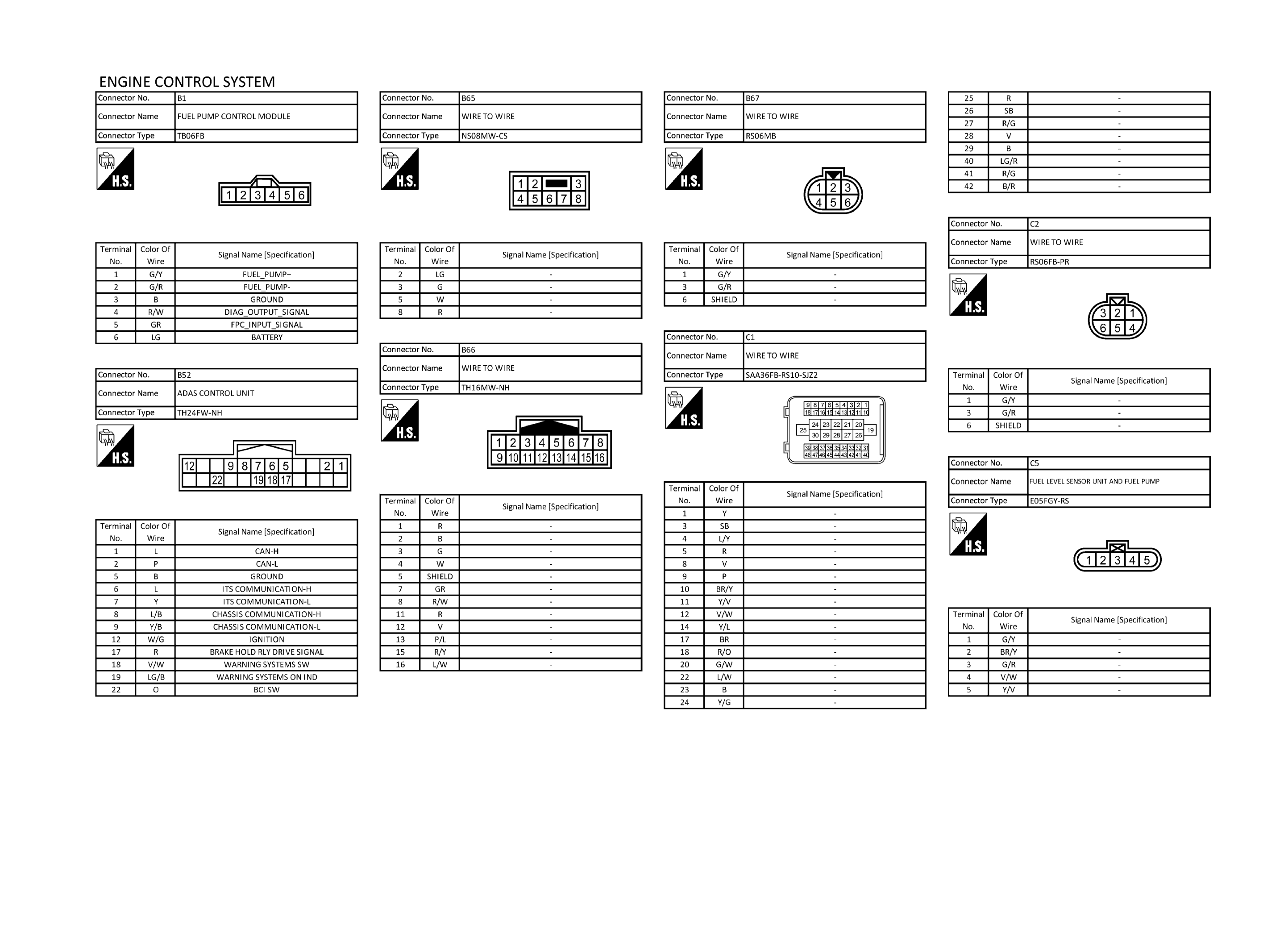

GNSJRBWE1712GB-712

Courtesy of NISSAN NORTH AMERICA, INC.

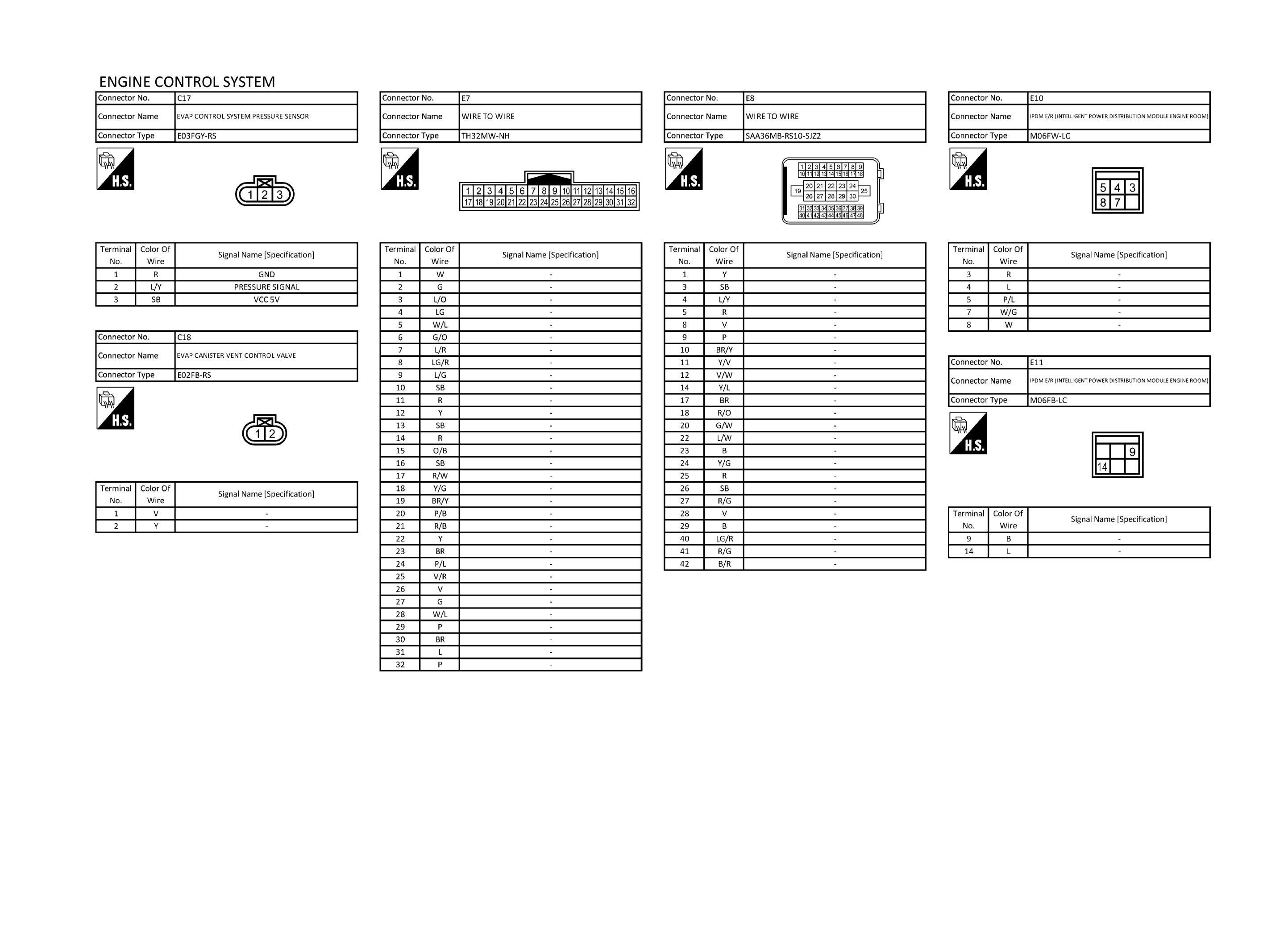

GNSJRBWE1713GB-713

Courtesy of NISSAN NORTH AMERICA, INC.

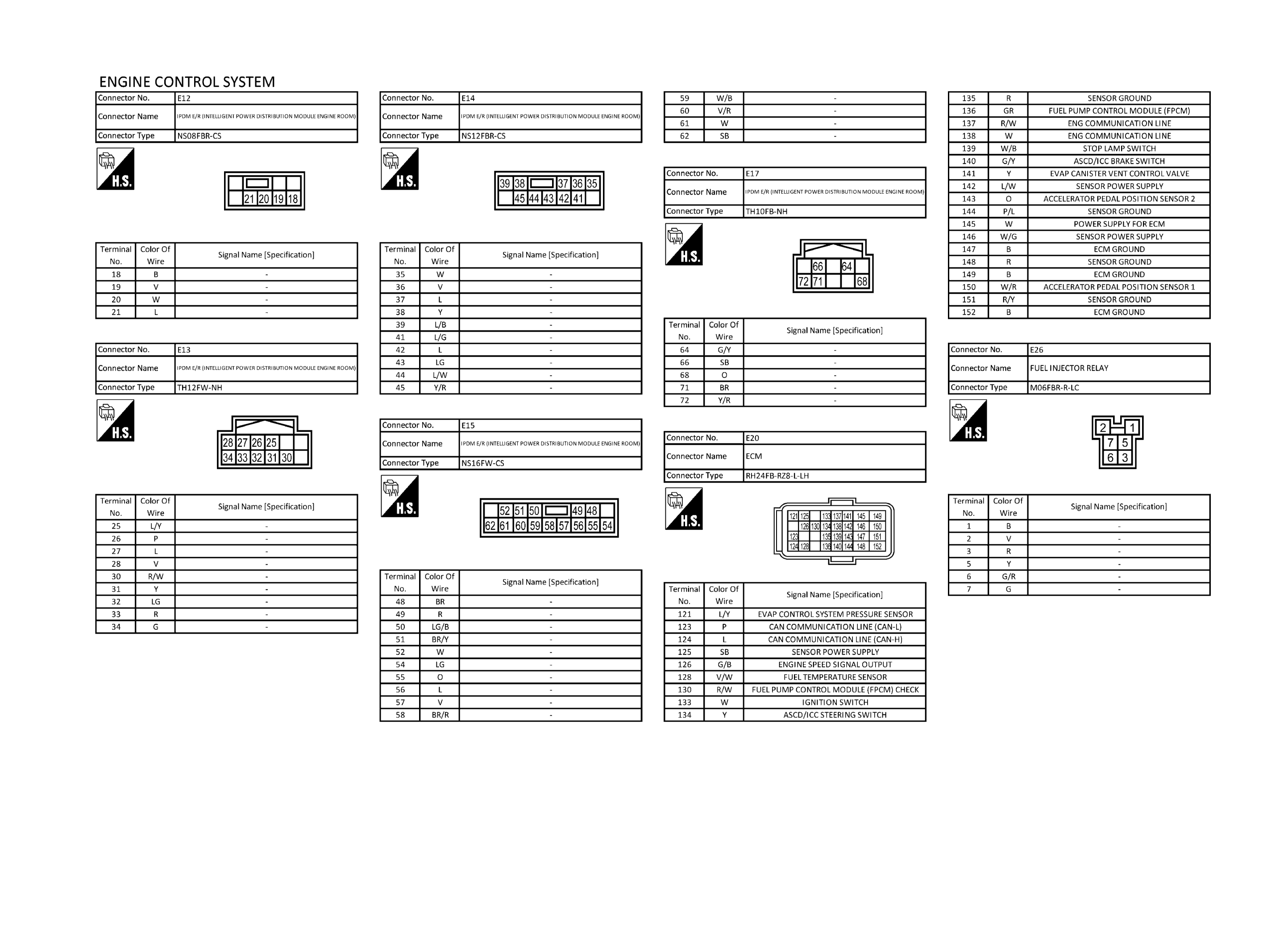

GNSJRBWE1714GB-714

Courtesy of NISSAN NORTH AMERICA, INC.

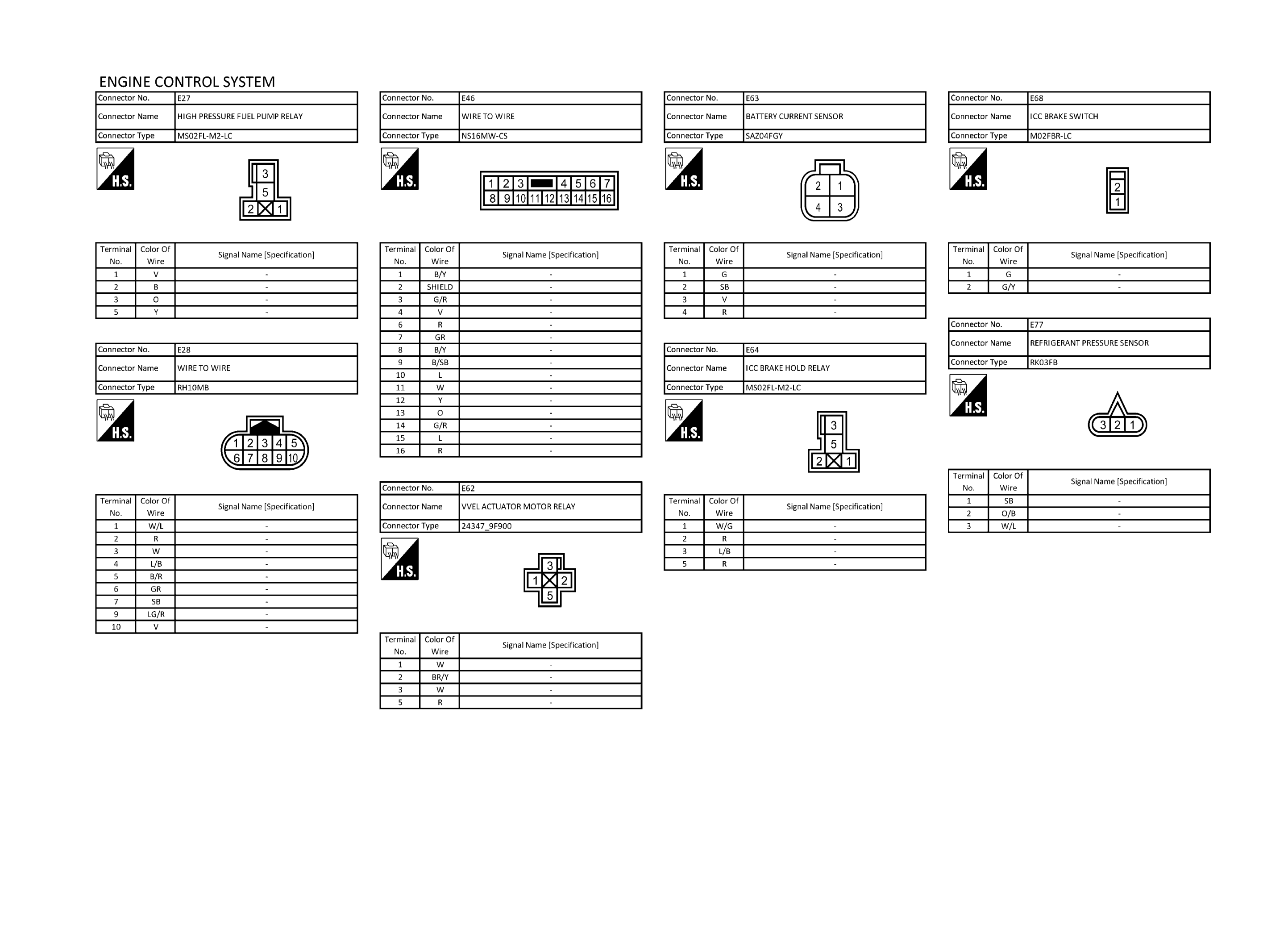

GNSJRBWE1715GB-715

Courtesy of NISSAN NORTH AMERICA, INC.

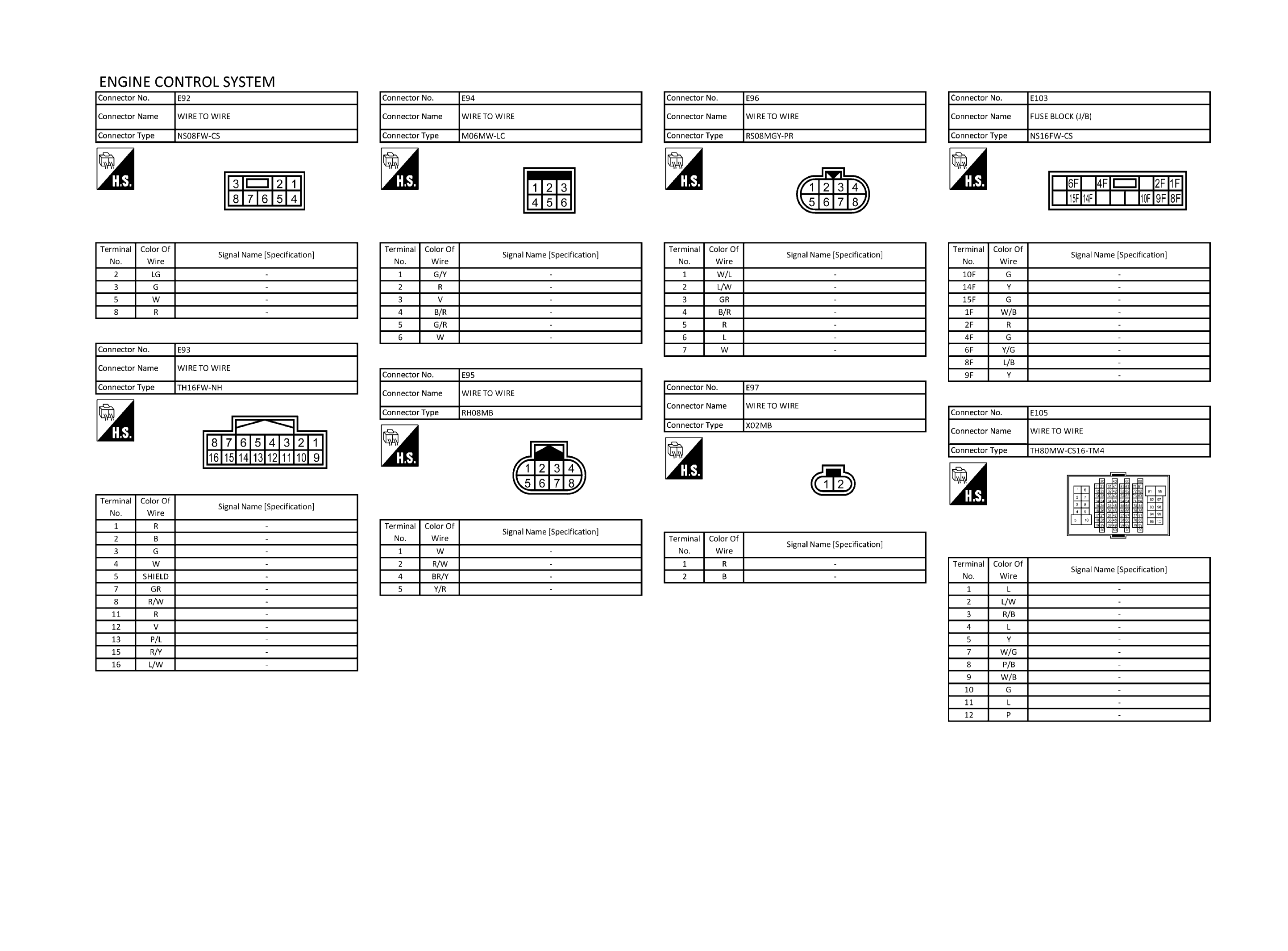

GNSJRBWE1716GB-716

Courtesy of NISSAN NORTH AMERICA, INC.

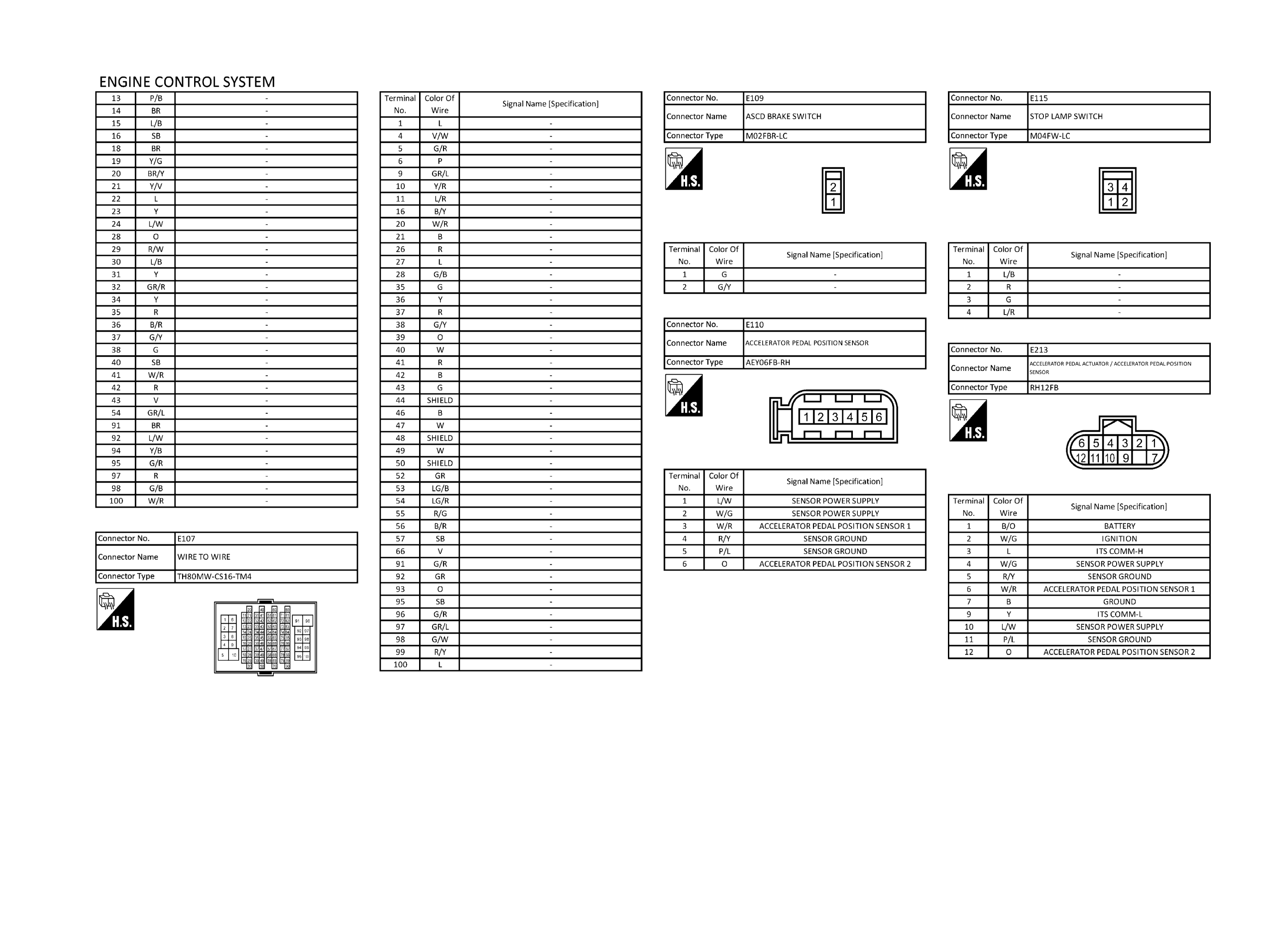

GNSJRBWE1717GB-717

Courtesy of NISSAN NORTH AMERICA, INC.

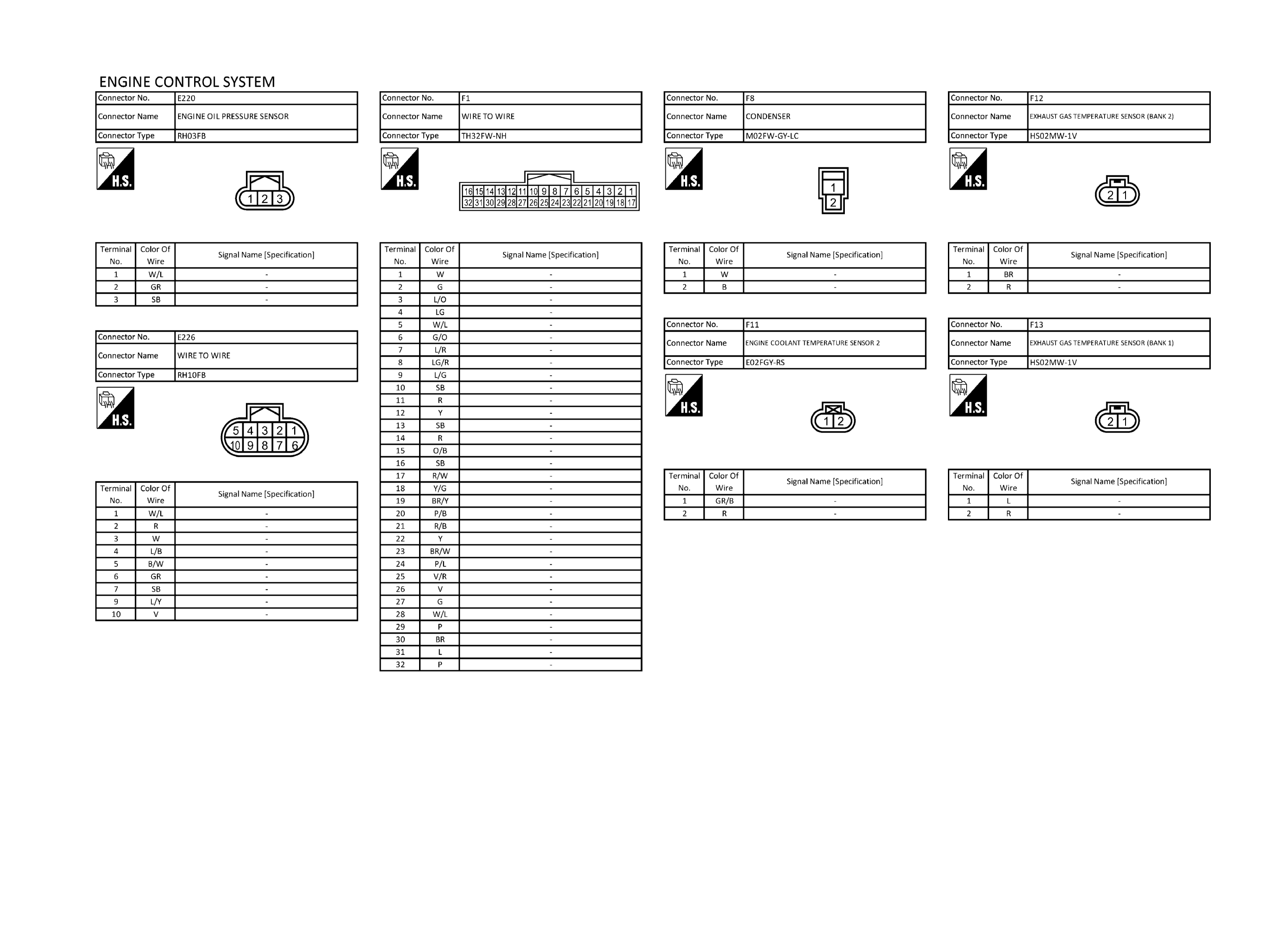

GNSJRBWE1718GB-718

Courtesy of NISSAN NORTH AMERICA, INC.

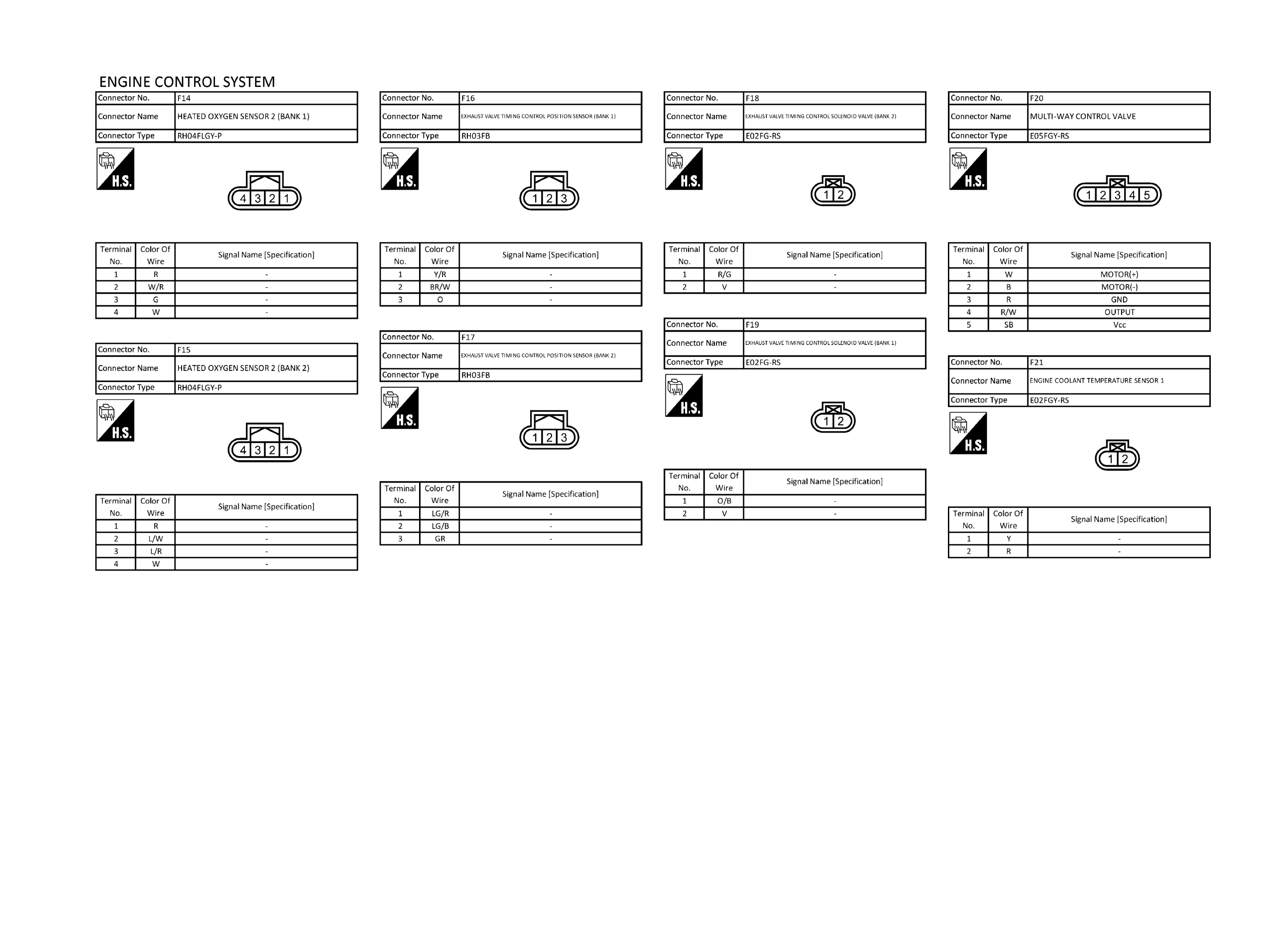

GNSJRBWE1719GB-719

Courtesy of NISSAN NORTH AMERICA, INC.

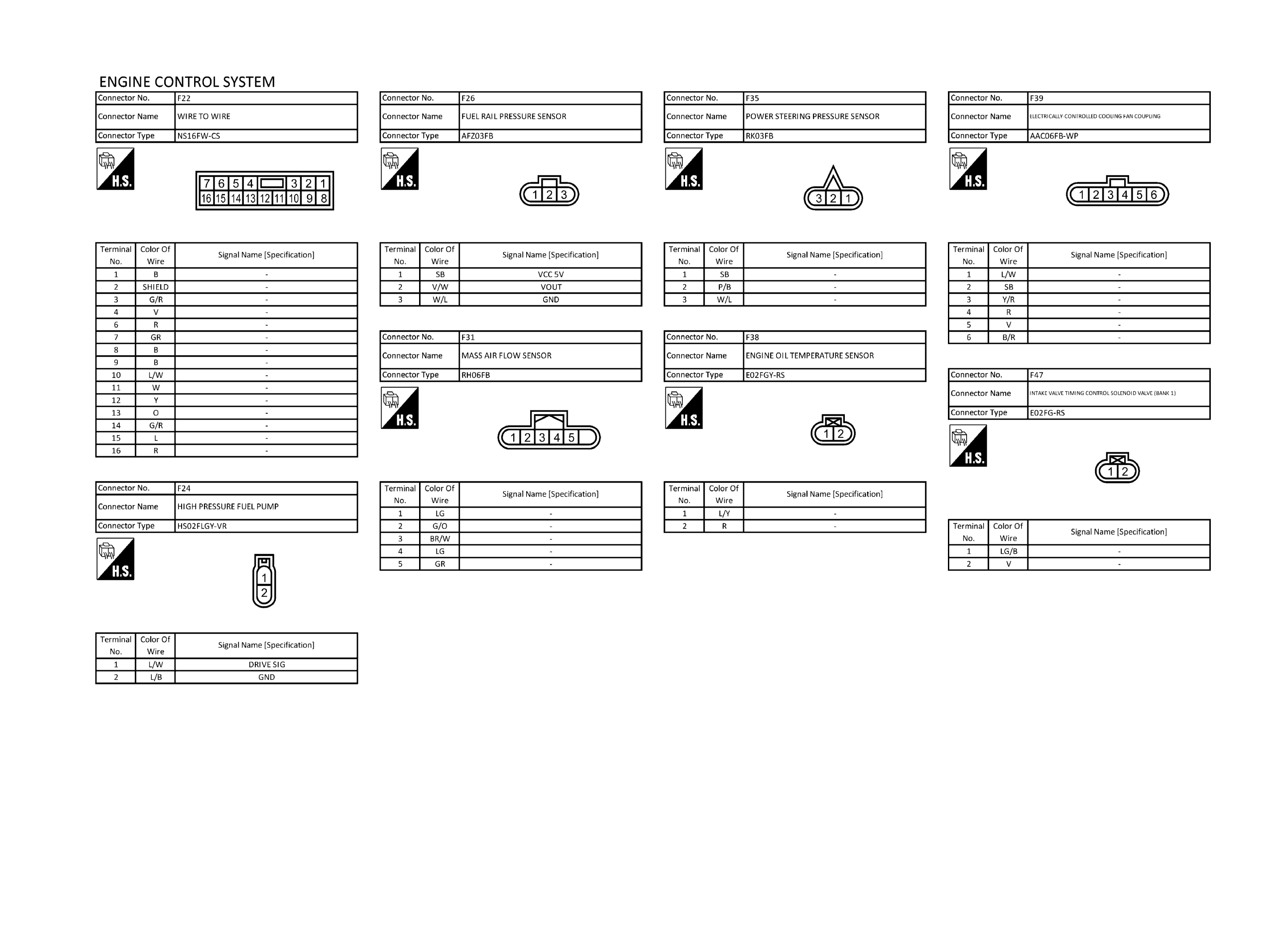

GNSJRBWE1720GB-720

Courtesy of NISSAN NORTH AMERICA, INC.

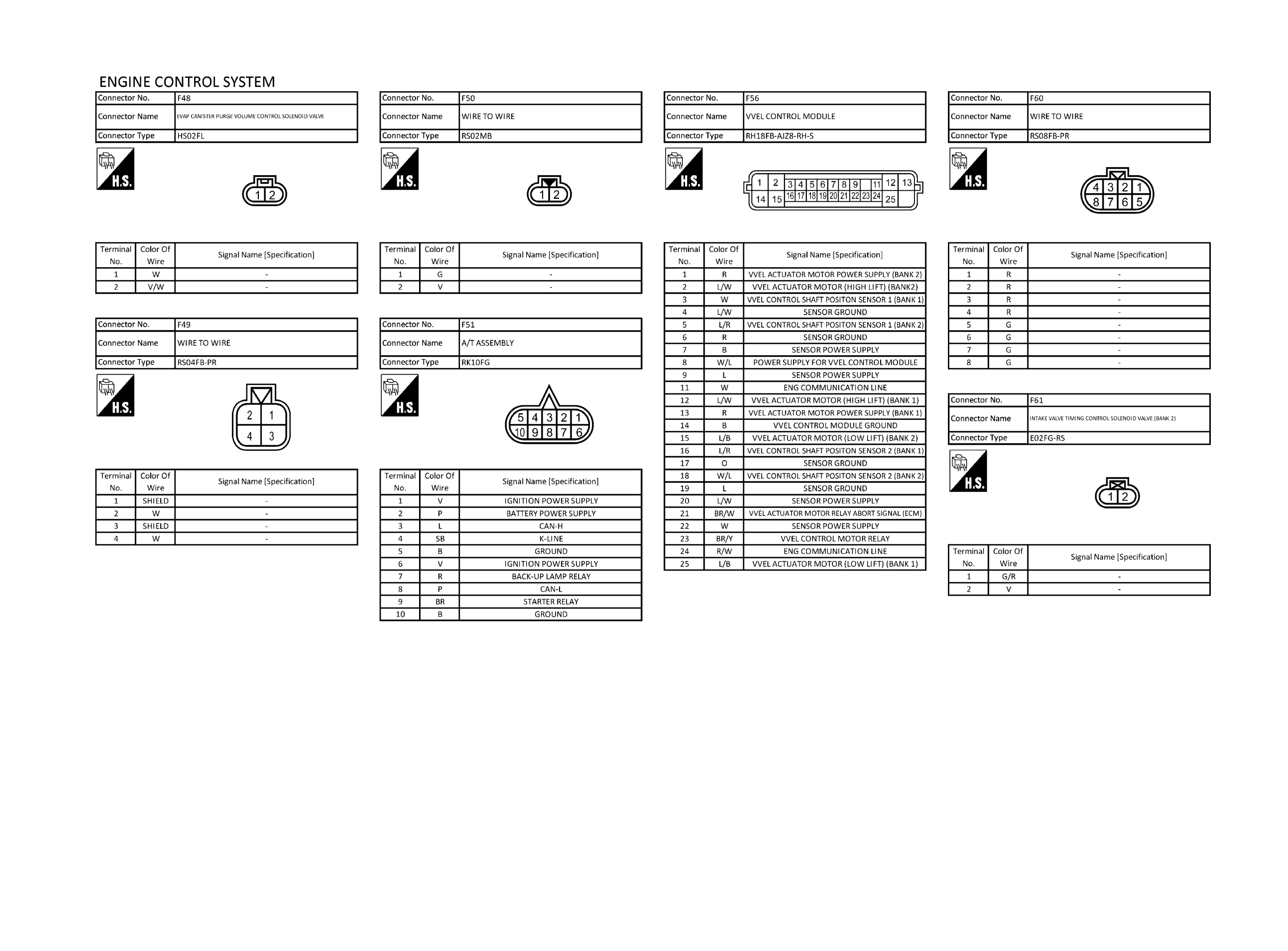

GNSJRBWE1721GB-721

Courtesy of NISSAN NORTH AMERICA, INC.

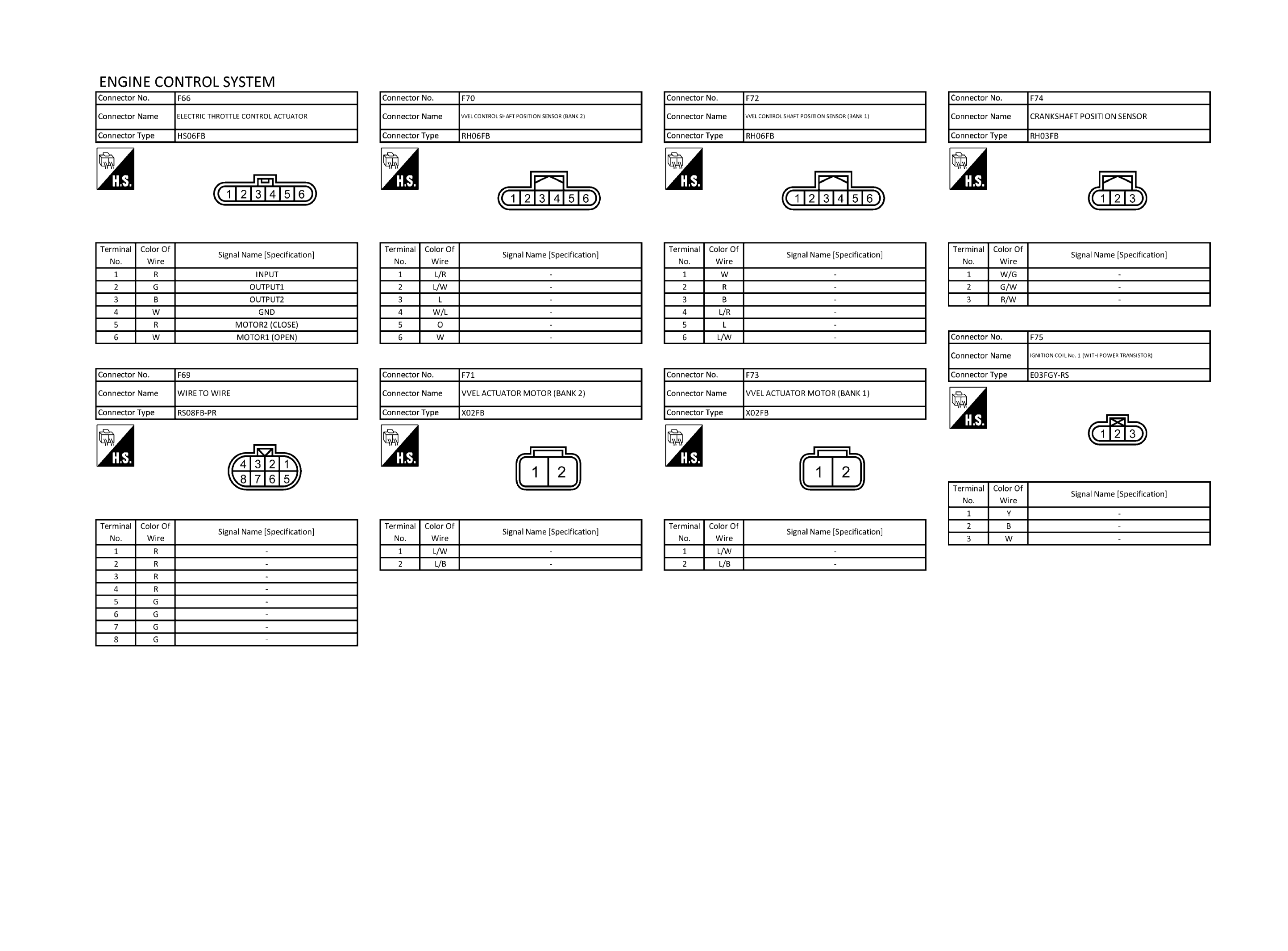

GNSJRBWE1722GB-722

Courtesy of NISSAN NORTH AMERICA, INC.

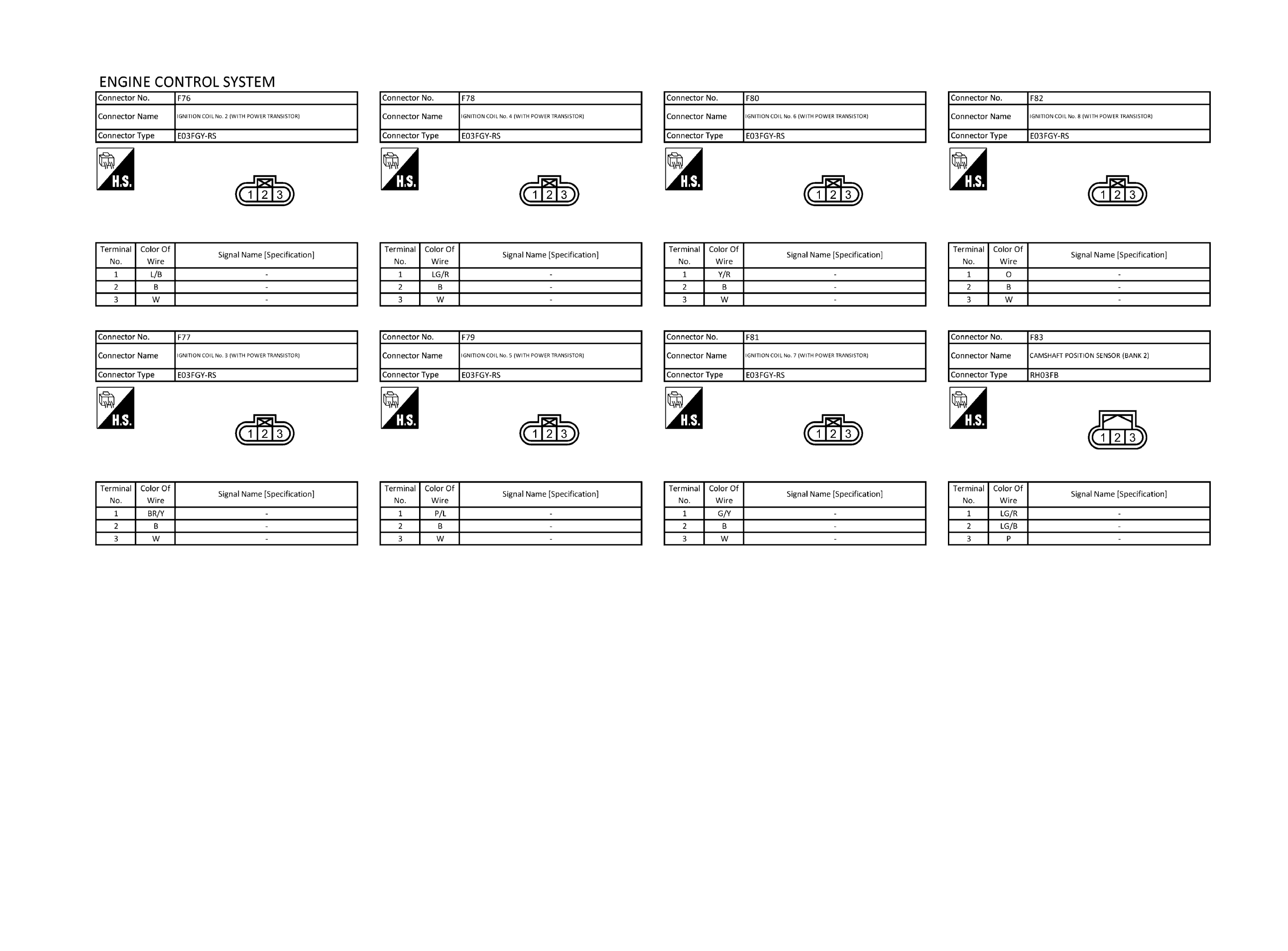

GNSJRBWE1723GB-723

Courtesy of NISSAN NORTH AMERICA, INC.

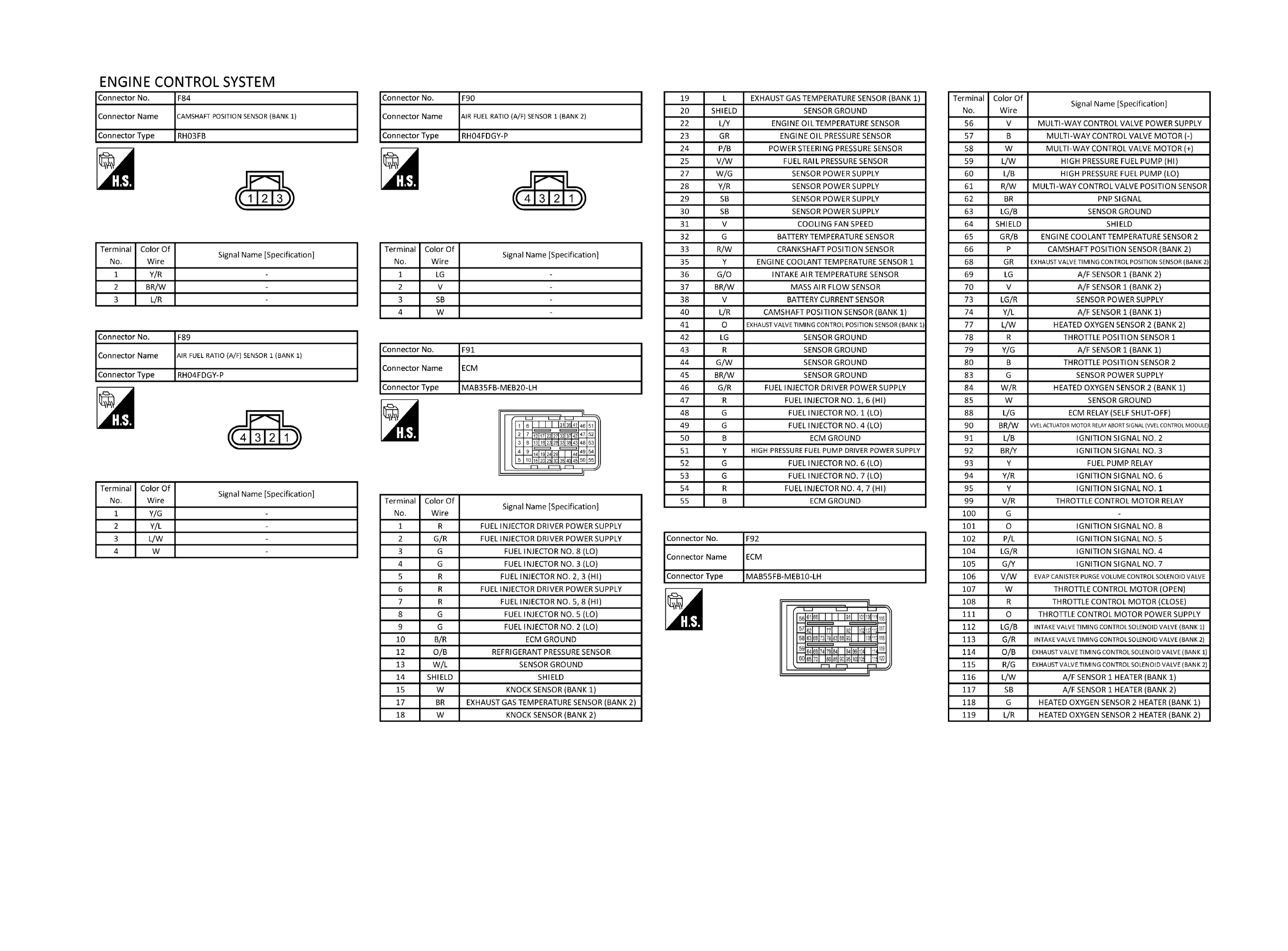

GNSJRBWE1724GB-724

Courtesy of NISSAN NORTH AMERICA, INC.

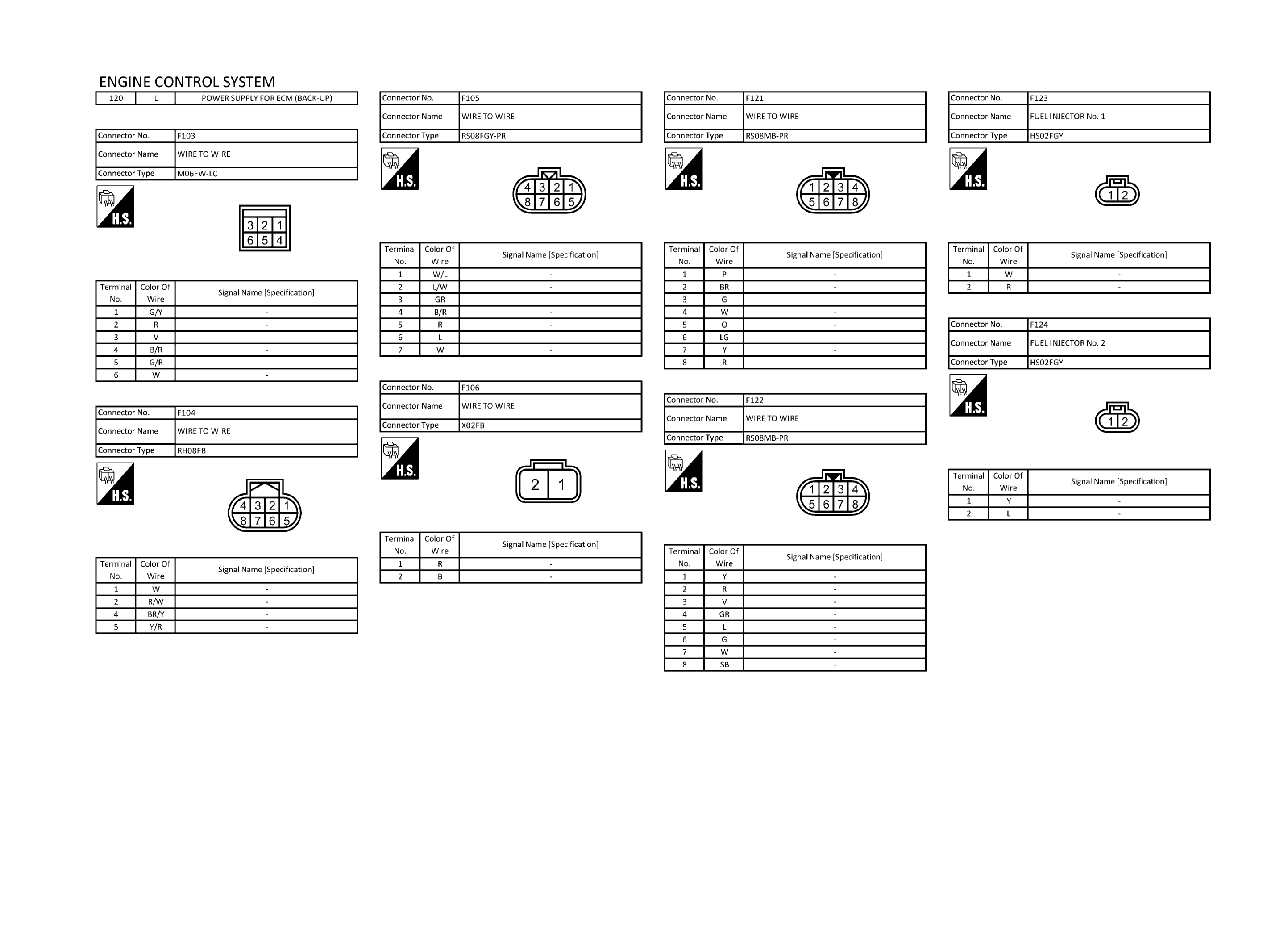

GNSJRBWE1725GB-725

Courtesy of NISSAN NORTH AMERICA, INC.

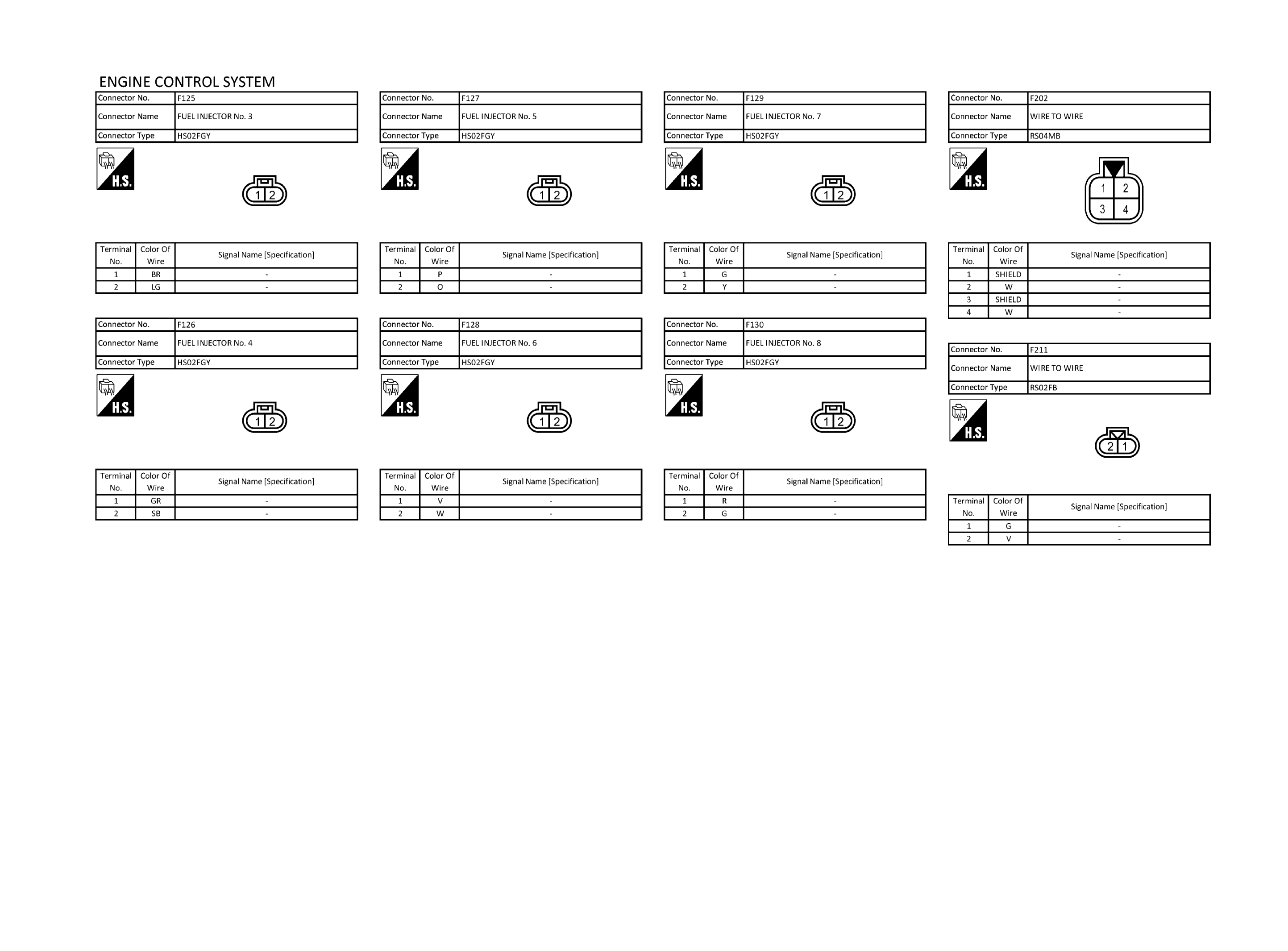

GNSJRBWE1726GB-726

Courtesy of NISSAN NORTH AMERICA, INC.

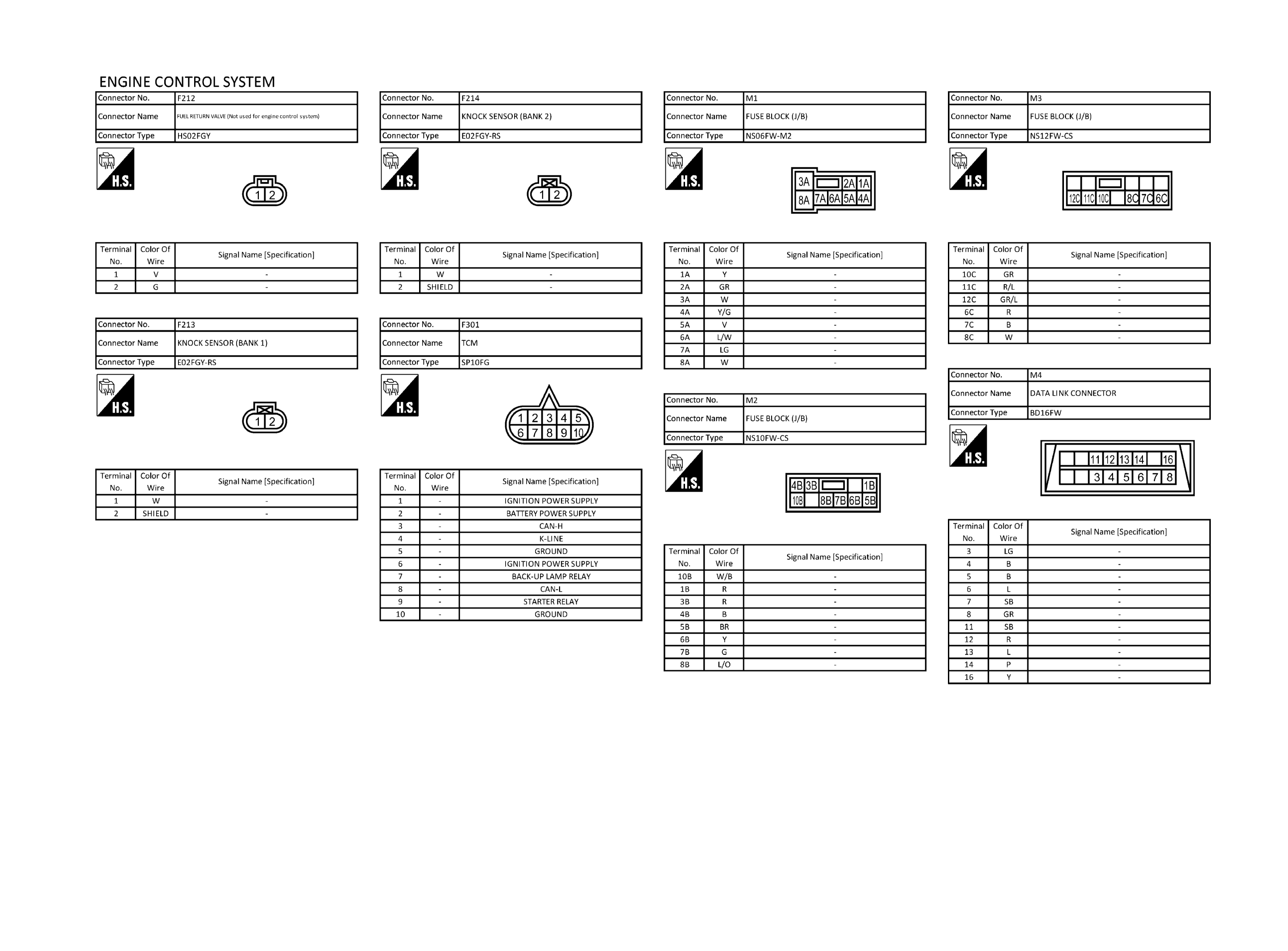

GNSJRBWE1727GB-727

Courtesy of NISSAN NORTH AMERICA, INC.

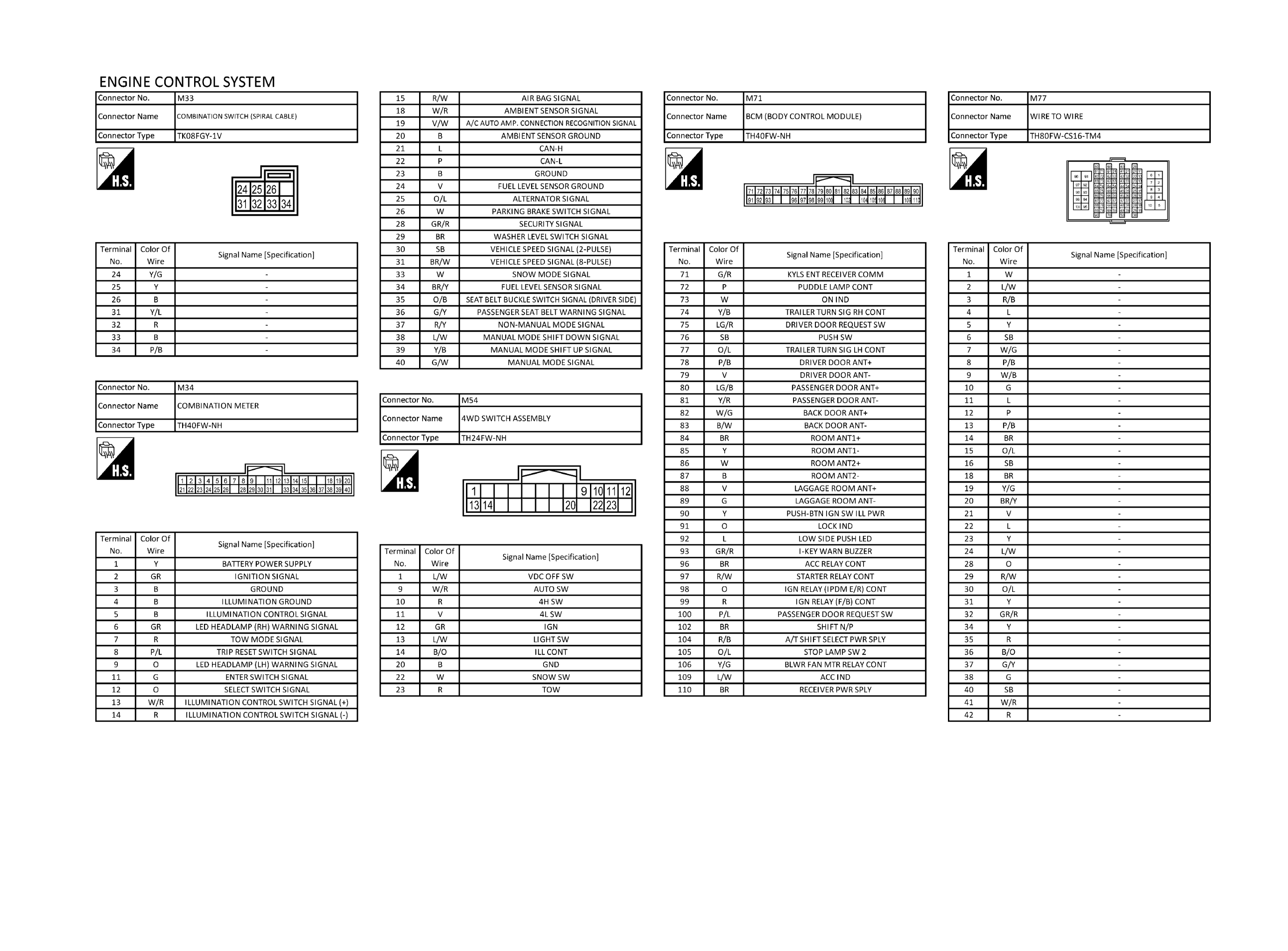

GNSJRBWE1728GB-728

Courtesy of NISSAN NORTH AMERICA, INC.

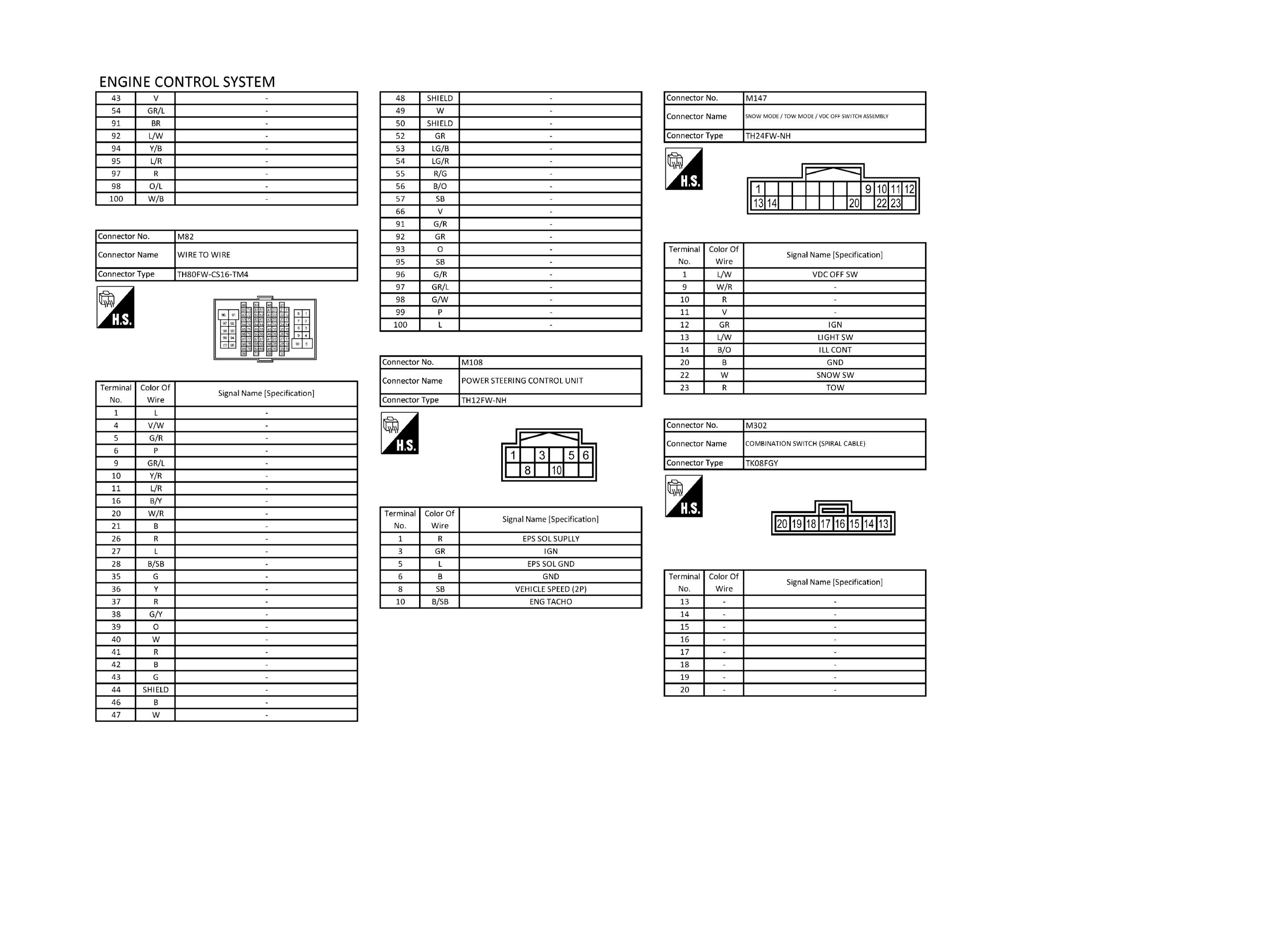

GNSJRBWE1729GB-729

Courtesy of NISSAN NORTH AMERICA, INC.
