Display And Warning Operation

Vehicle condition / Driver's operation				Action
Warning systems ON indicator	Vehicle speed	Turn signal condition	Status of vehicle detection within detection area	Indication on the Blind Spot Warning/Blind spot Intervention indicator	Buzzer
OFF	-	-	-	OFF	OFF
ON	Less than approx. 29 km/h (18 MPH)	-	-	OFF	OFF
	Approx. 32 km/h (20 MPH) or more	-	Vehicle is absent	OFF	OFF
		OFF	Vehicle is absent	ON	OFF

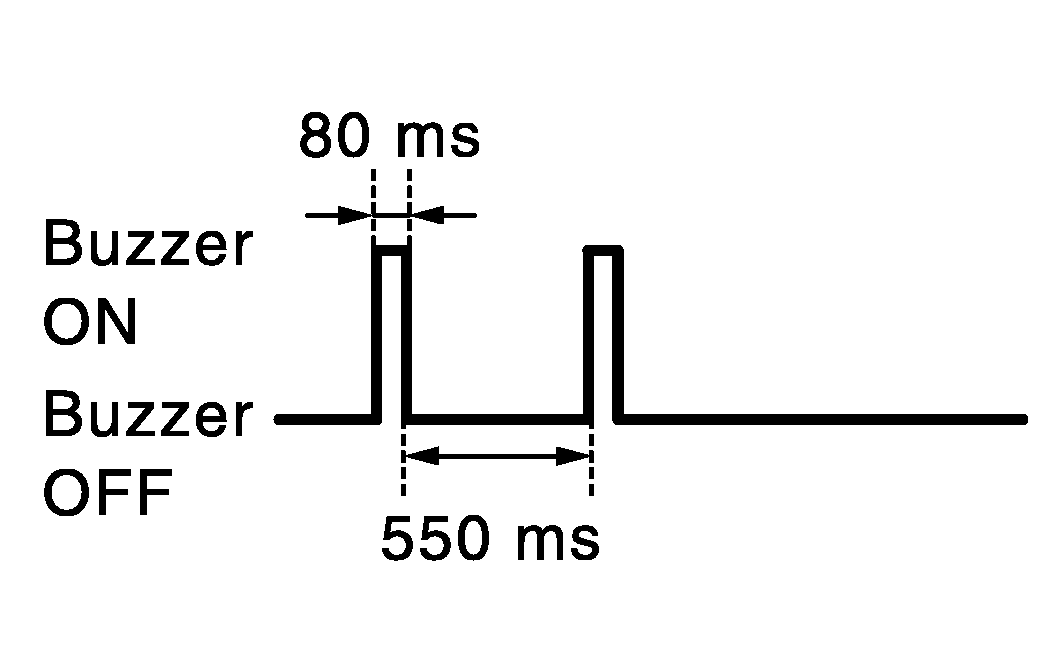

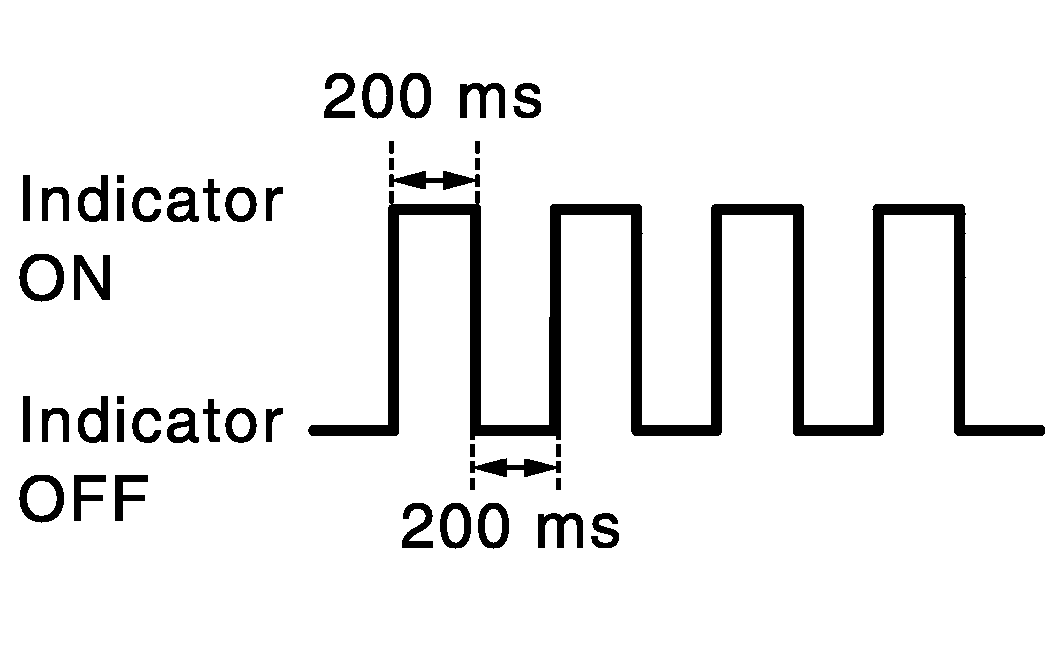

		ON (Vehicle detected direction)	Before turn signal operates Vehicle is detected	Blink Courtesy of NISSAN NORTH AMERICA, INC.	Short continuous beep Courtesy of NISSAN NORTH AMERICA, INC.
		ON (Vehicle detected direction)	Vehicle is detected after turn signal operates	Blink Courtesy of NISSAN NORTH AMERICA, INC.	OFF

NOTE:

If vehicle speed exceeds approximately 32 km/h (20MPH), BSW function operates until the vehicle speed becomes lower than approximately 29km/h (18MPH).
Time shown in the figure is approximate time.
Always Blind Spot Intervention system operates together with BSW system. Whenever Blind Spot Intervention system is turned on by pushing the dynamic driver assistance switch, BSW system also be turned on even if the BSW system is turned off. However, at this time the warning systems ON indicator remains OFF.
