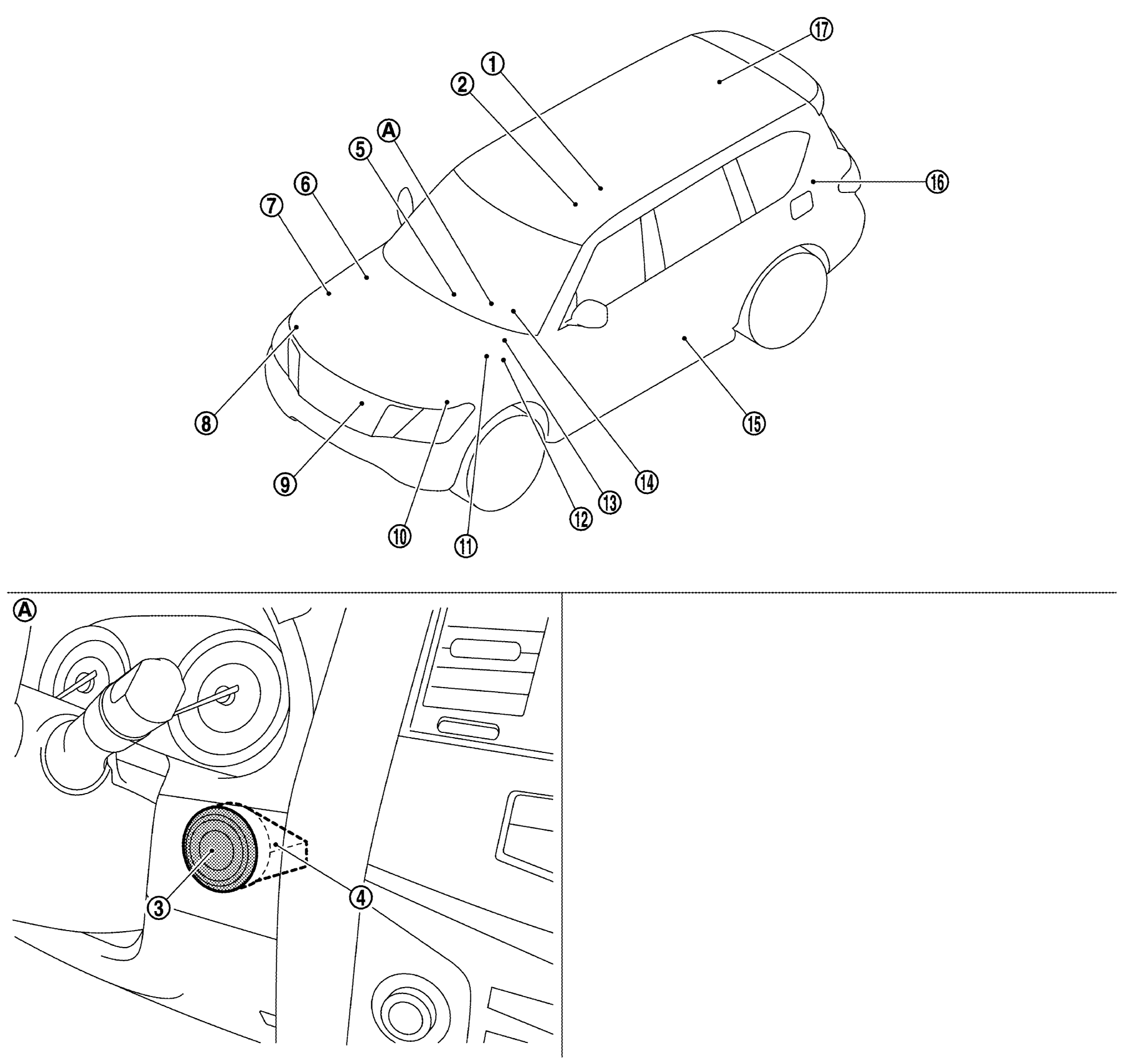

Component Location
| 1. | Inside key antenna (console) Refer to COMPONENT LOCATION . |
2. | A/T assembly Refer to COMPONENT LOCATION . |
3. | Push-button ignition switch |
| 4. | NATS antenna amp. | 5. | Inside key antenna (instrument center) Refer to COMPONENT LOCATION . |
6. | IPDM E/R Refer to COMPONENT LOCATION . |
| 7. | ECM Refer to COMPONENT LOCATION . |
8. | Hood switch 1 | 9. | Horn |
| 10. | Hood switch 2 | 11. | ABS actuator and electric unit (control unit) Refer to COMPONENT LOCATION . |
12. | Stop lamp switch Refer to COMPONENT LOCATION . |
| 13. | BCM Refer to COMPONENT LOCATION . |
14. | Combination meter Refer to COMPONENT LOCATION . |
15. | Front door switch (driver side) Refer to COMPONENT LOCATION . |
| 16 | Remote keyless entry receiver Refer to COMPONENT LOCATION . |
17. | Inside key antenna (luggage room) Refer to COMPONENT LOCATION . |
||
| A. | Behind push-button ignition switch |
