Exploded View With Torque Specifications

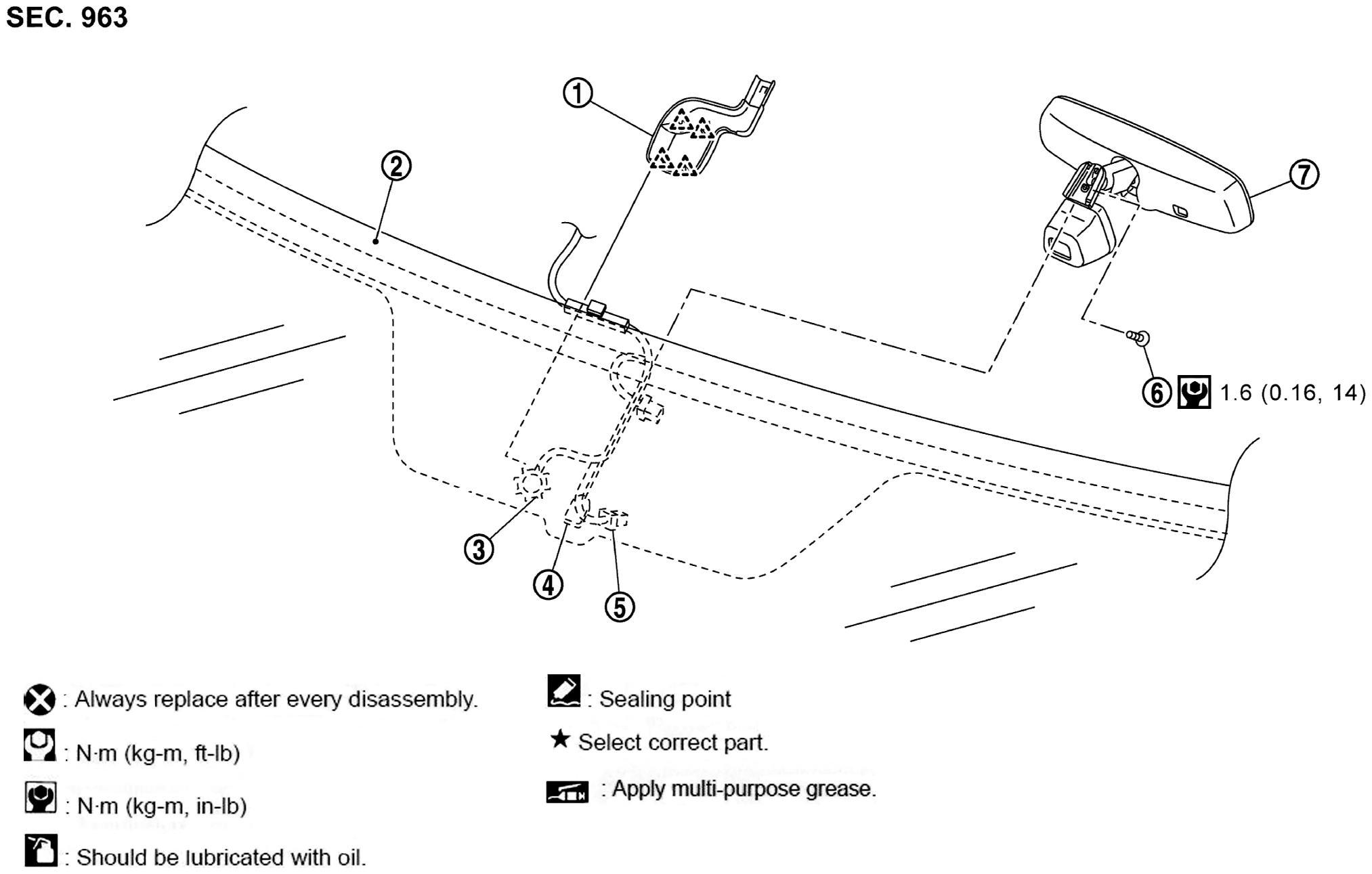

GNSJSLIA0536GB-536Courtesy of NISSAN NORTH AMERICA, INC.
1. Rain sensor cover 2. Windshield glass 3. Rain sensor
4. Mirror base 5. Harness connector 6. TORX bolt
7. Inside mirror
SANKAKU-H : Pawl
BOLTIN : N•m (kg - m, in - lb)
