Exploded View

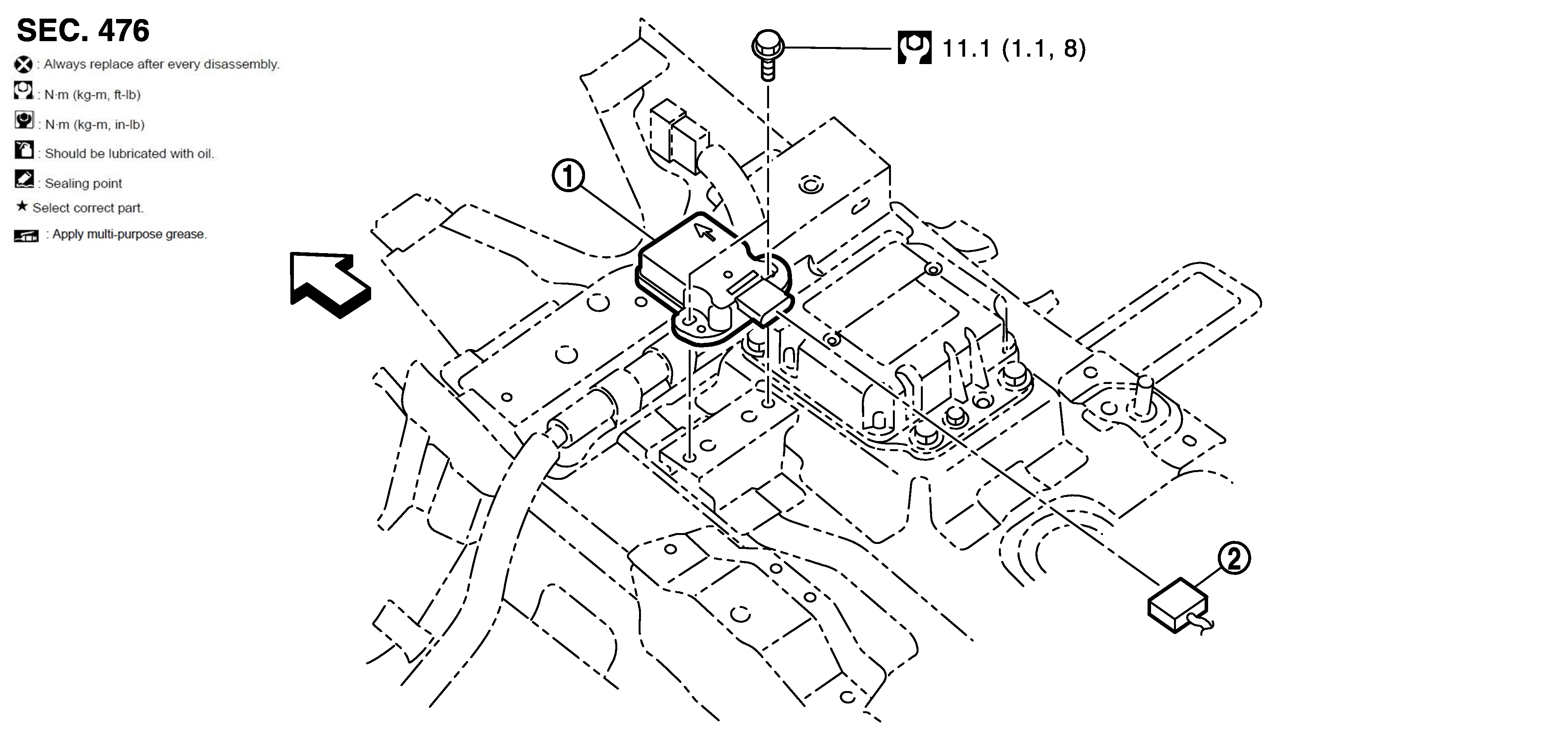

Fig 1: Yaw Rate/Side/Decel G Sensor With Torque Specifications
GNSJPFIC0201GB-201WHITE-1WHITE-2ARROWBOLTCourtesy of NISSAN NORTH AMERICA, INC.
WHITE-1 Yaw rate/side/decel G sensor WHITE-2 Yaw rate/side/decel G sensor harness connector
ARROW : Vehicle front
BOLT :N•m (kg - m, ft - lb)
