Disassembly And Assembly: Assembly

Installation is in the reverse order of removal.

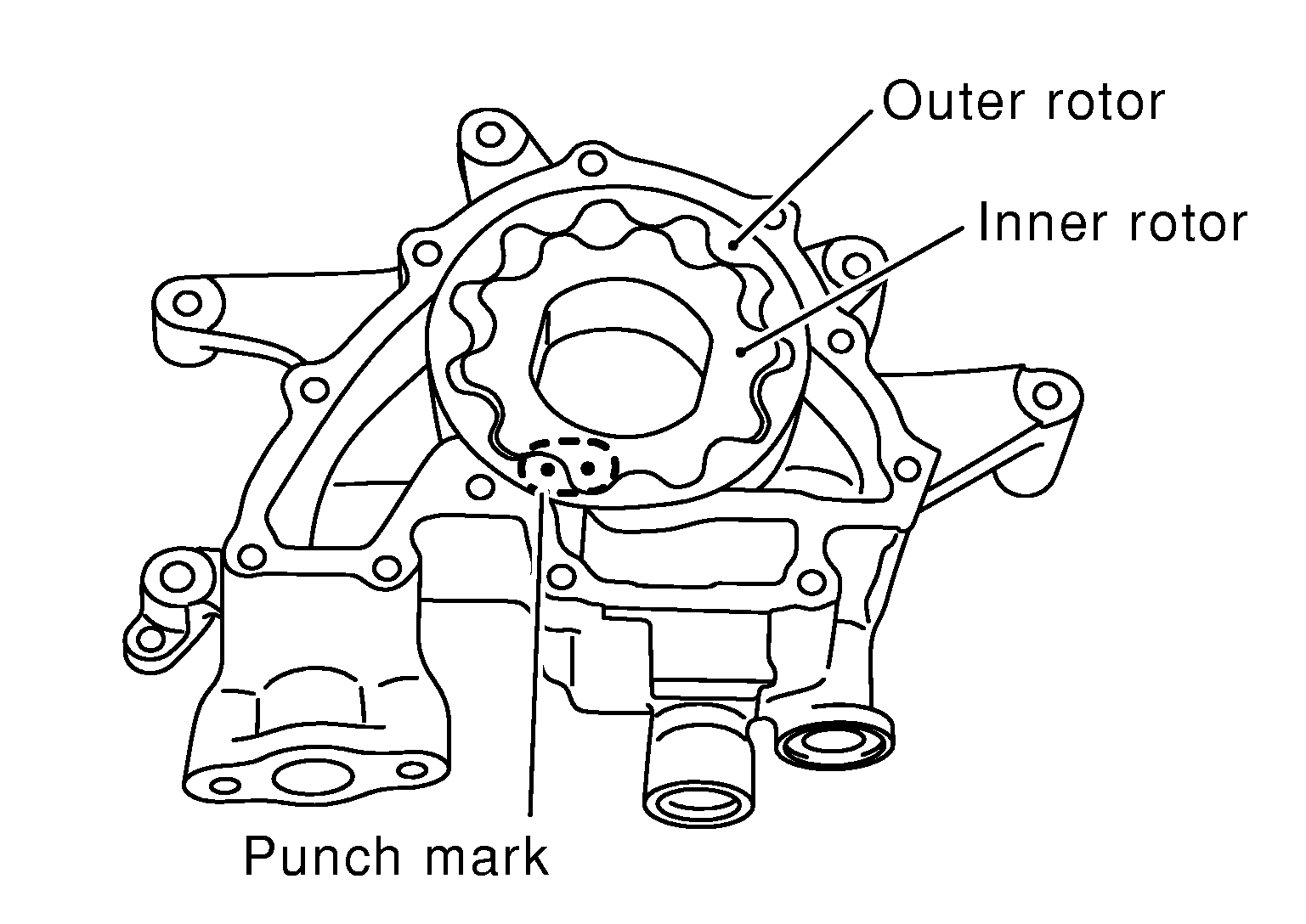

G04073512Courtesy of NISSAN NORTH AMERICA, INC.
NOTE:

Install the oil pump inner rotor and outer rotor with the punched marks on the oil pump cover side.
