Component Location

WARNING: This page is about a different car, the 2016 Infiniti QX80. However, it is still accessible from the selected car via links, so may be relevant.

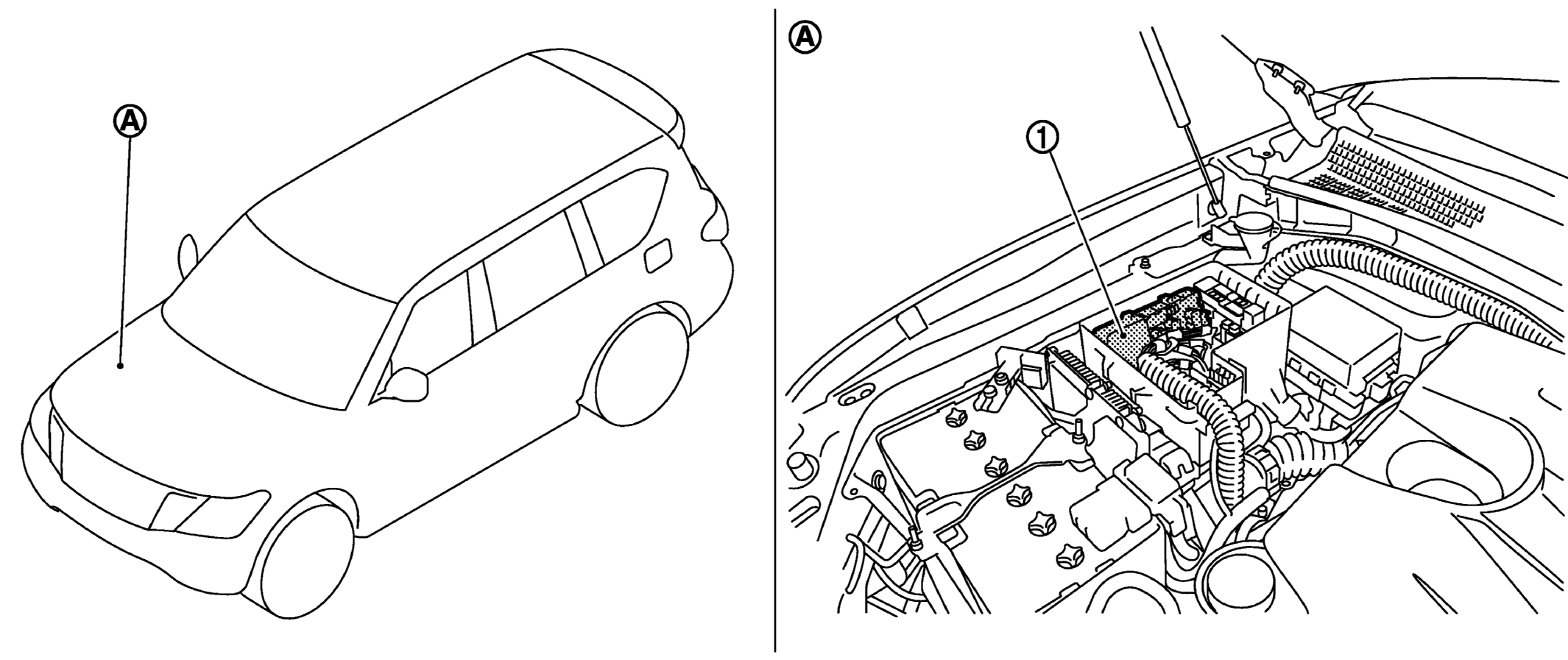

GNSJMMIA0330ZZ-330Courtesy of NISSAN NORTH AMERICA, INC.
1. IPDM E/R
A. Engine room (RH)
