Exploded View With Torque Specifications

WARNING: This page is about a different car, the 2016 Infiniti QX80. However, it is still accessible from the selected car via links, so may be relevant.

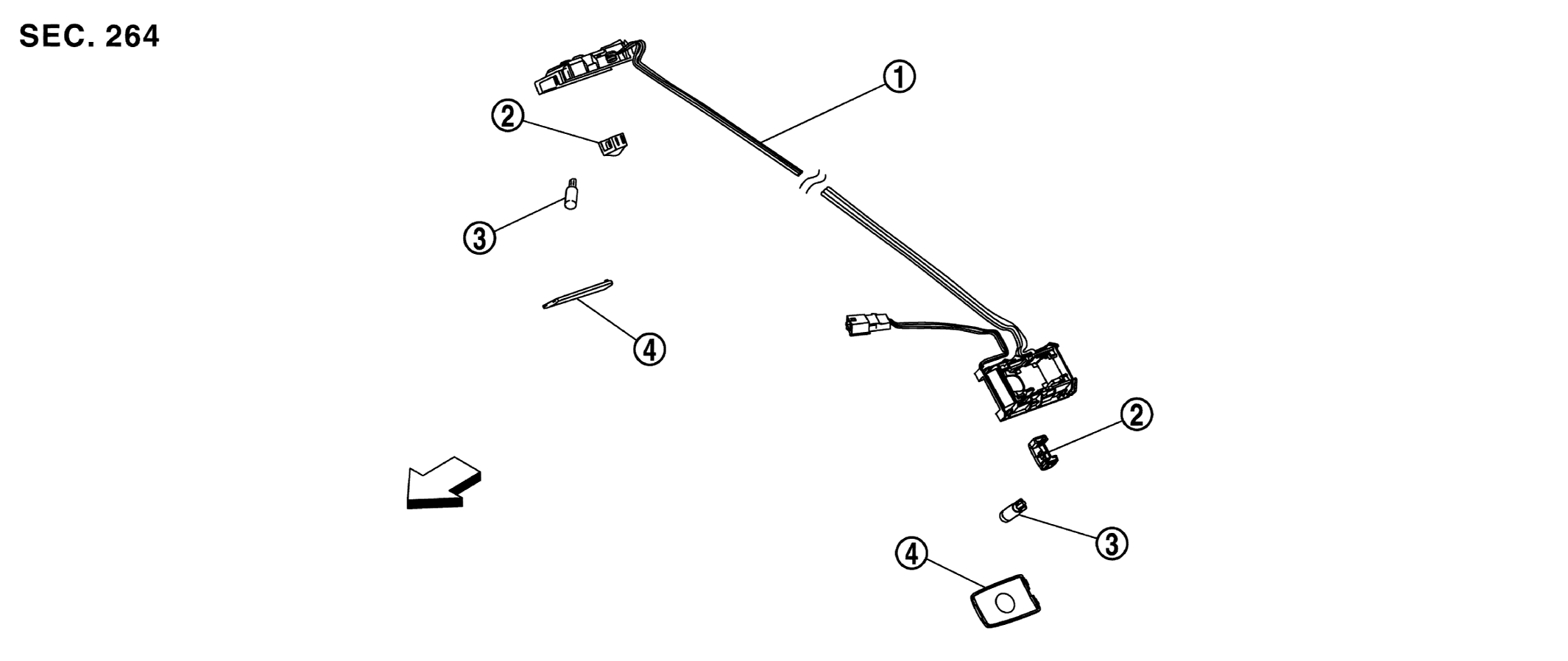

GNSJMLIA4908ZZ-908Courtesy of NISSAN NORTH AMERICA, INC.
1. Personal lamp assembly 2. Personal lamp switch 3. Bulb
4. Lens
ARROW : Vehicle front
