Exploded View With Torque Specifications

WARNING: This page is about a different car, the 2016 Infiniti QX80. However, it is still accessible from the selected car via links, so may be relevant.

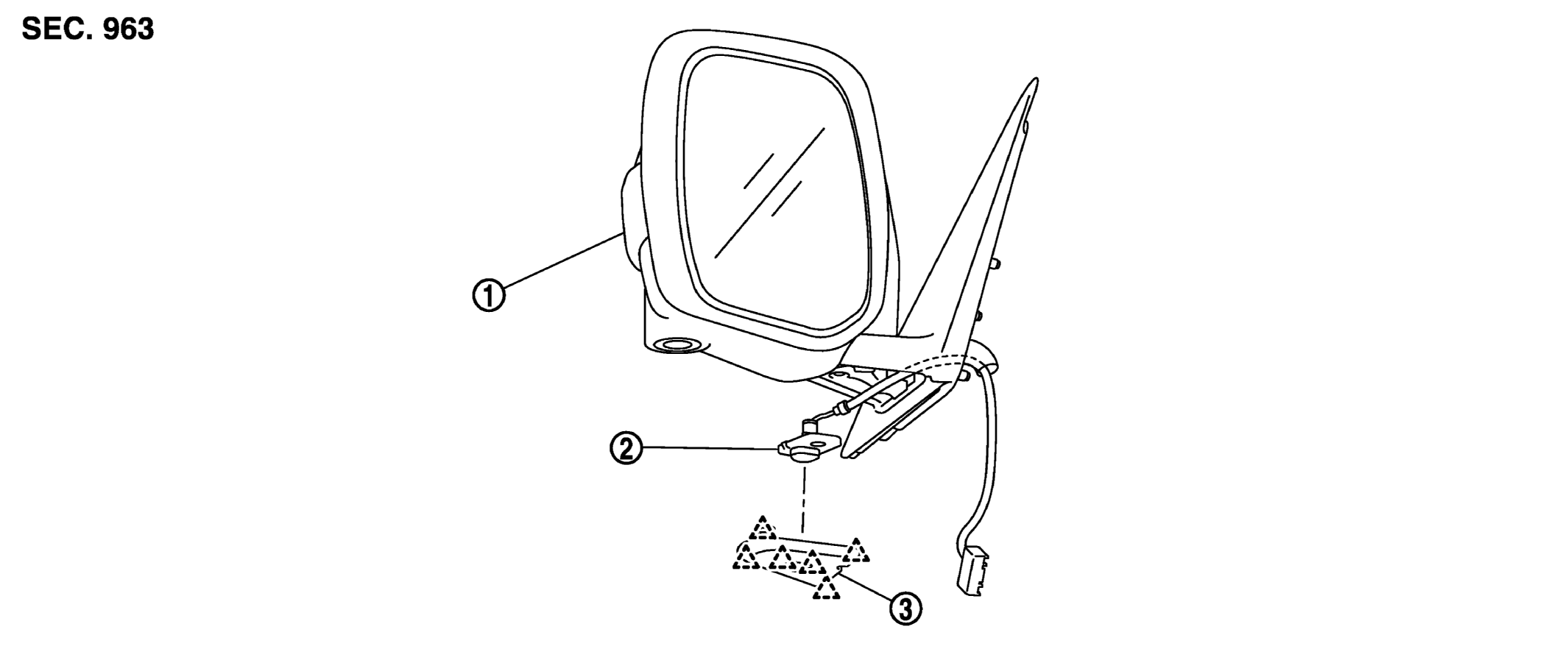

GNSJMLIA1148ZZ-148Courtesy of NISSAN NORTH AMERICA, INC.
1. Door mirror assembly 2. Puddle lamp 3. Base cover
SANKAKU-H : Pawl
