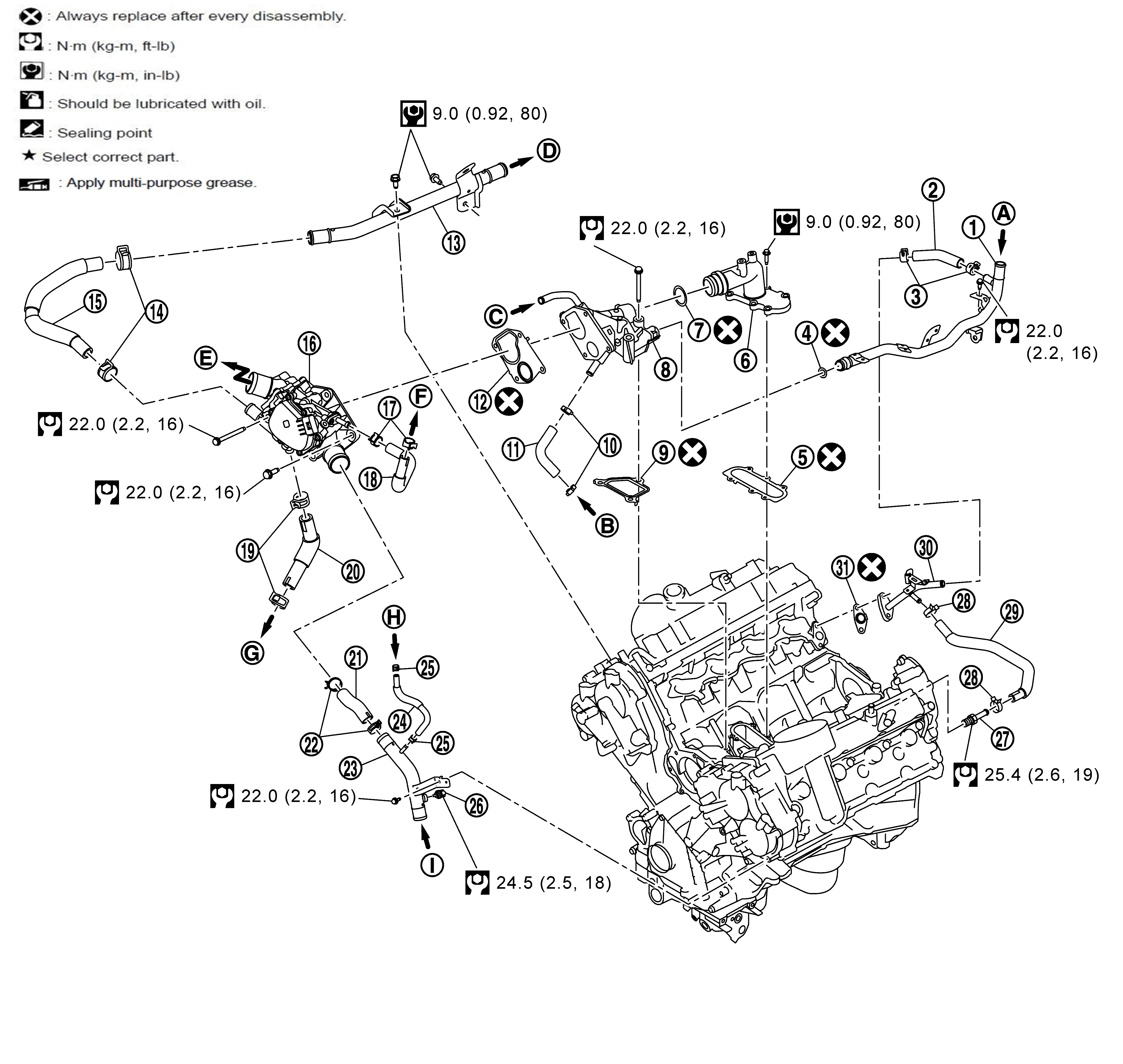

Exploded View With Torque Specifications

WARNING: This page is about a different car, the 2016 Infiniti QX80. However, it is still accessible from the selected car via links, so may be relevant.

Courtesy of

1.	Heater pipe	2.	Water hose bypass	3.	Clamp
4.	O-ring	5.	Gasket	6.	Water connector
7.	O-ring	8.	Multi-way control valve housing	9.	Gasket
10.	Clamp	11.	Water hose	12.	Gasket
13.	Heater pipe	14.	Clamp	15.	Water hose
16.	Multi-way control valve	17.	Clamp	18.	Water hose
19.	Clamp	20.	Water hose	21.	Water suction hose
22.	Clamp	23.	Water suction pipe	24.	Water hose
25.	Clamp	26.	Engine coolant temperature sensor 2	27.	Hose connector
28.	Clamp	29.	Water hose	30.	Water pipe
31.	Gasket
A.	From heater	B.	From oil cooler	C.	From reservoir tank
D.	To heater	E.	To radiator	F.	To electric throttle control actuator
G	To A/T fluid warmer	H.	From electric throttle control actuator	I.	From radiator
	: N•m (kg - m, ft - lb)
	: N•m (kg - m, in - lb)
	: Always replace after every disassembly.
