Component Location

WARNING: This page is about a different car, the 2016 Infiniti QX80. However, it is still accessible from the selected car via links, so may be relevant.

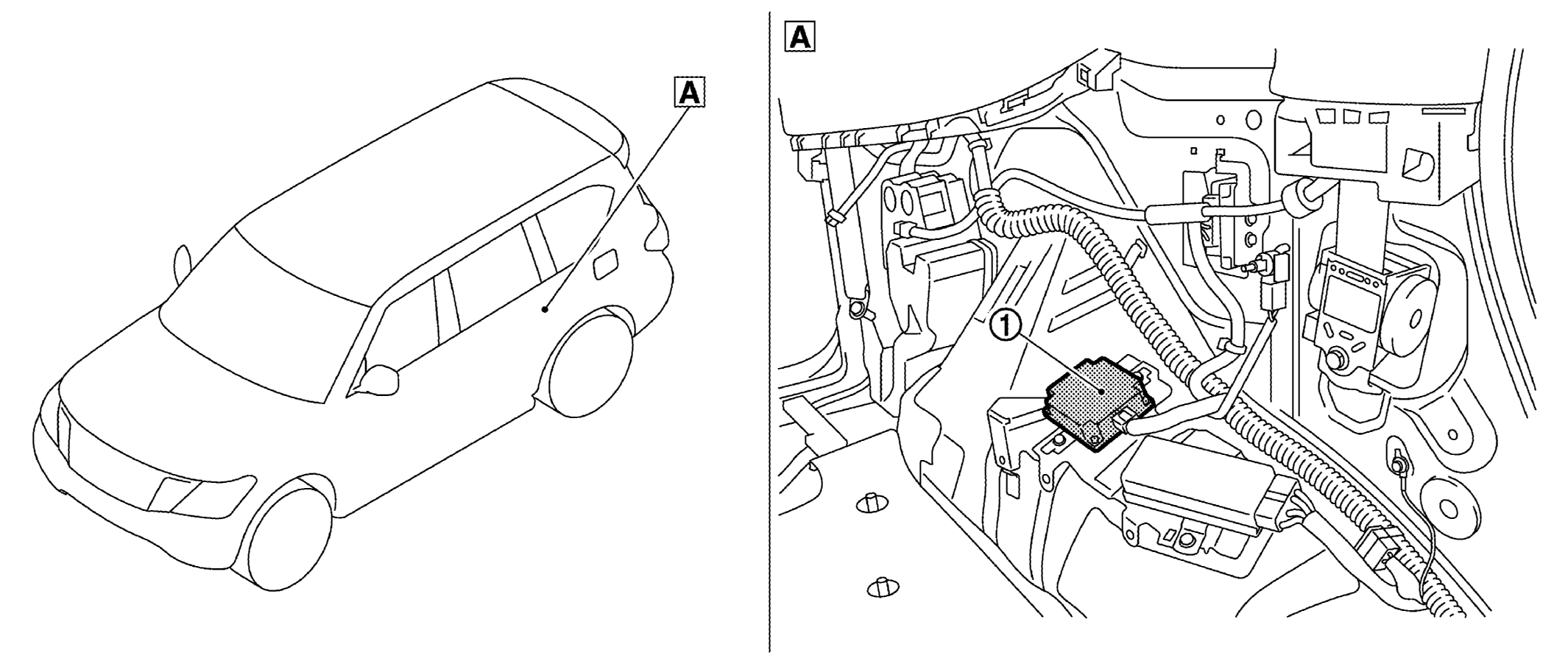

GNSJSOIA1707ZZ-707Courtesy of NISSAN NORTH AMERICA, INC.
WZ-A Inside of luggage side finisher lower
No. Component Description
WHITE-1 ADAS control unit
  • Controls each system, based on CAN communication and ITS communication signals received from each control unit
  • Transmits signals necessary for control between CAN communication and ITS communication
