Indicator And Warning Lap
WARNING: This page is about a different car, the 2016 Infiniti QX80. However, it is still accessible from the selected car via links, so may be relevant.
 Courtesy of NISSAN NORTH AMERICA, INC.
|
| No. |
Switch name |
Description |
 |

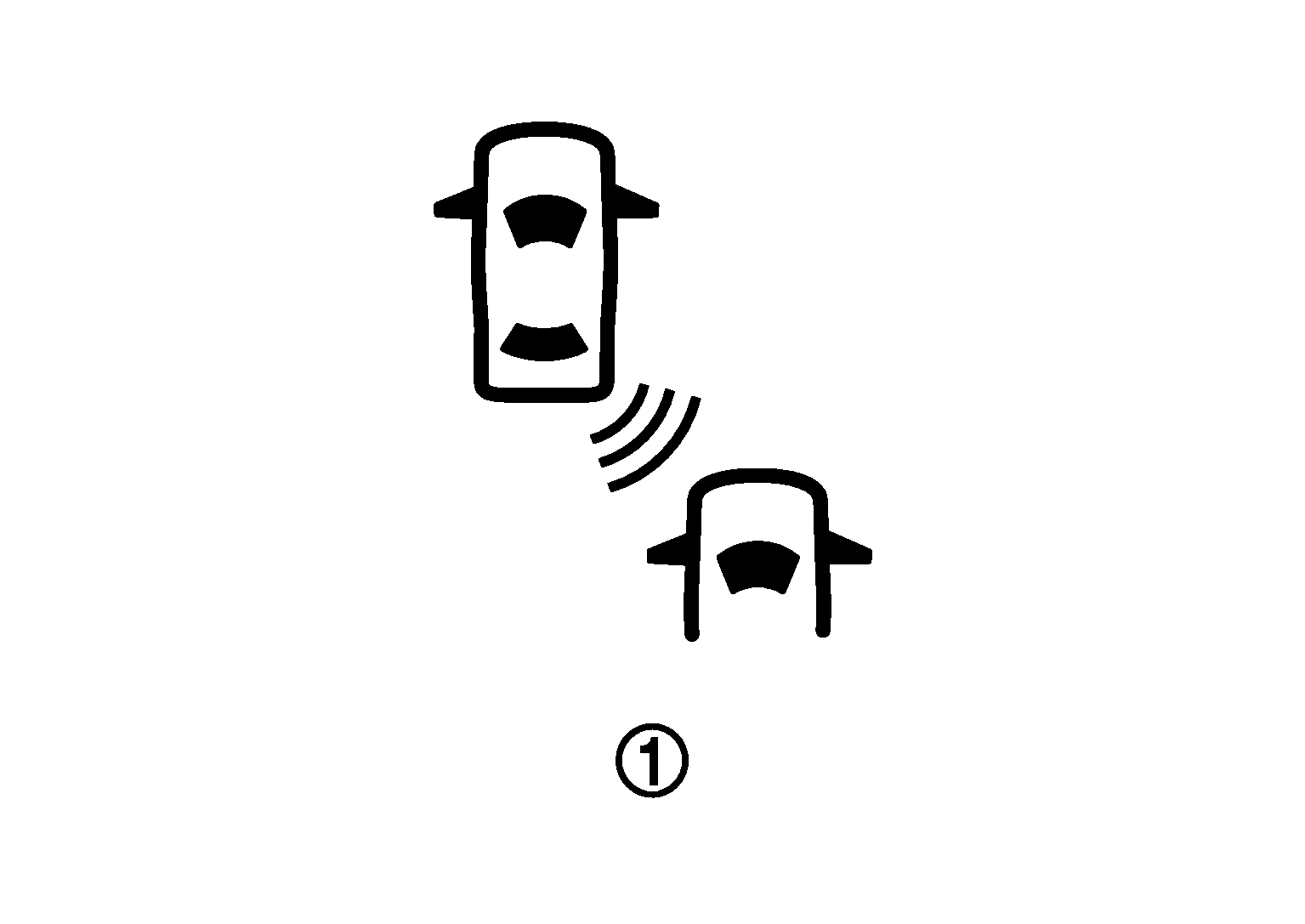

Blind Spot Intervention ON indicator (green) |
- Turns ON while Blind Spot Intervention system is ON
- Blinks when dynamic driver assistance switch is pressed while setting of Blind Spot Intervention is OFF
- Under the following conditions, the Blind Spot Intervention ON indicator (green) will blink
- When the VDC system (except TCS function) or ABS operates
- When the VDC system is turned OFF
- When the 4WD shift switch is turned to not AUTO position
- When the SNOW mode switch is turned ON
|
| Blind Spot Warning/Blind Spot Intervention warning lamp (yellow) |
- Turns ON when Blind Spot Warning/Blind Spot Intervention system is malfunctioning
- Blinks when the following conditions:
- When the camera detects that interior temperature is high
- When radar blockage is detected.
|
