Display And Warning Lamp

SYSTEM CONTROL CONDITION DISPLAY

The DCA system switch indicator illuminates and the system is turned ON by pressing the dynamic driver assistance switch at the system OFF.

Condition		Display on combination meter

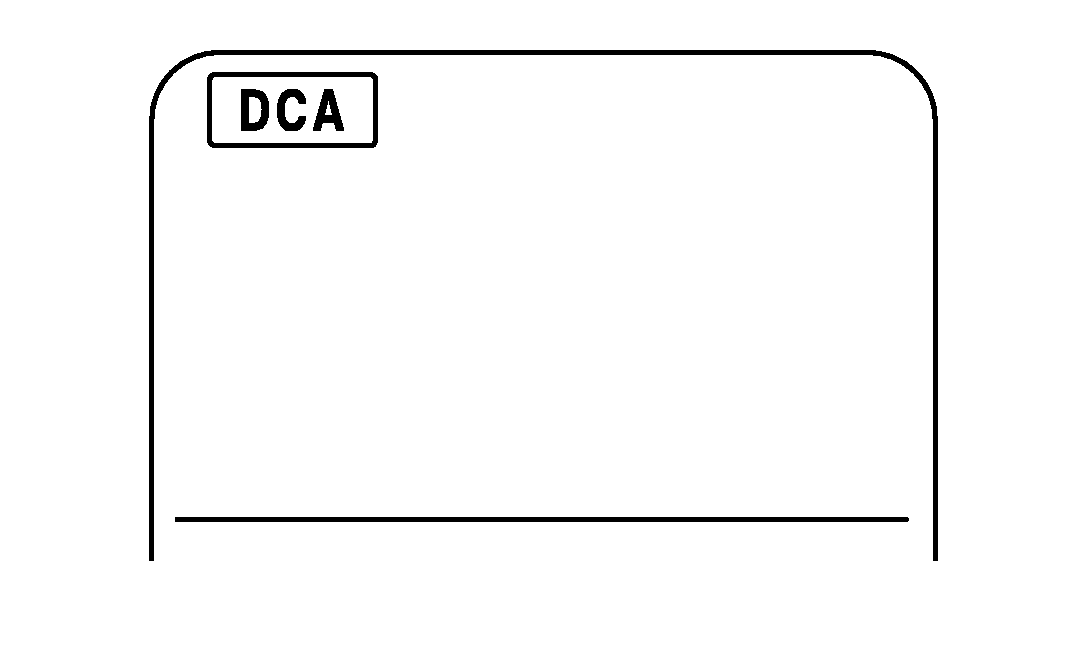

Operation status	Vehicle ahead not detected	Courtesy of NISSAN NORTH AMERICA, INC.

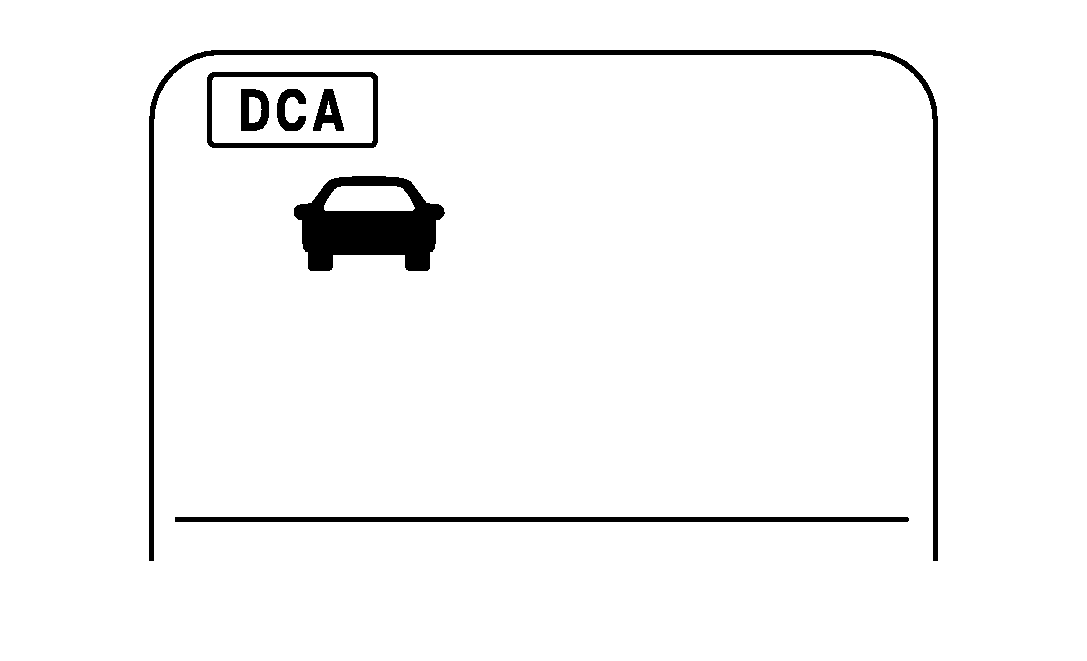

	Vehicle ahead detected	Courtesy of NISSAN NORTH AMERICA, INC.

WARNING OPERATION

Approach Warning

• If own vehicle comes closer to the vehicle ahead due to rapid deceleration of that vehicle or if another vehicle cuts in, the system warns the driver with the chime and DCA system display. Decelerate by depressing the brake pedal to maintain a safe vehicle distance if:
  • The chime sounds.
  • The vehicle ahead detection indicator blinks.
• The warning chime may not sound in some cases when there is a short distance between vehicles. Some examples are:
  • When the vehicles are traveling at the same speed and the distance between vehicles is not changing
  • When the vehicle ahead is traveling faster and the distance between vehicles is increasing
  • When a vehicle cuts in near own vehicle
• The warning chime will not sound when own vehicle approaches vehicles that are parked or moving slowly.

  Condition	Display on combination meter

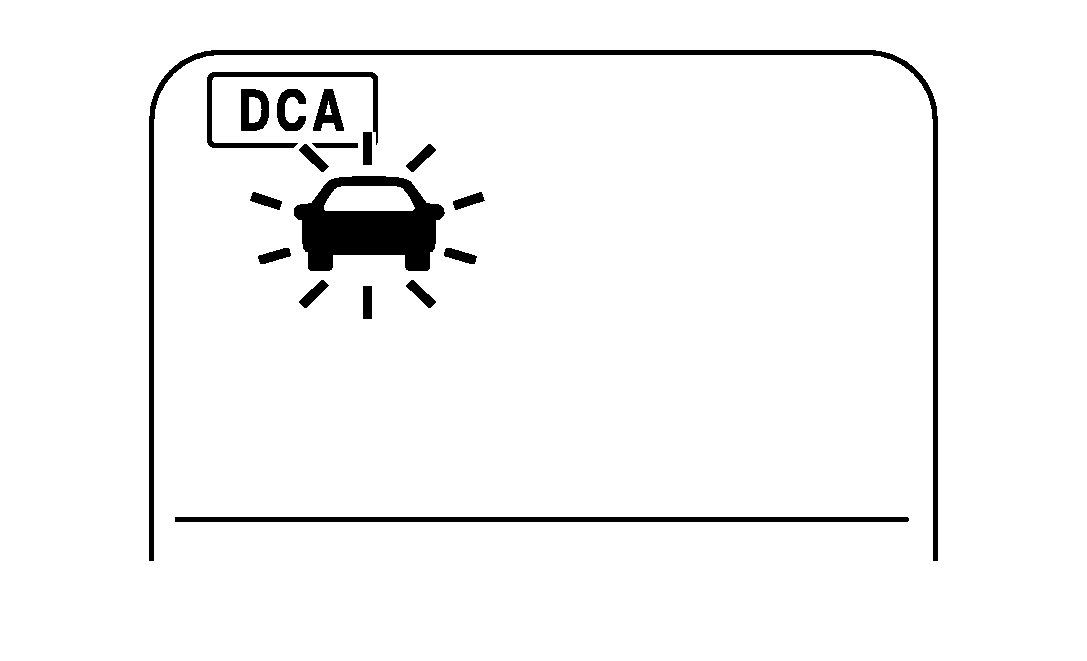

  When the system judges that the brake operation by the driver is necessary	Courtesy of NISSAN NORTH AMERICA, INC.

Waning Lamp Display

NOTE:

When the DCA system is automatically canceled, the cancellation condition can be displayed on "WORK SUPPORT" of CONSULT (ICC/ADAS).

• Condition		Description	Display on combination meter

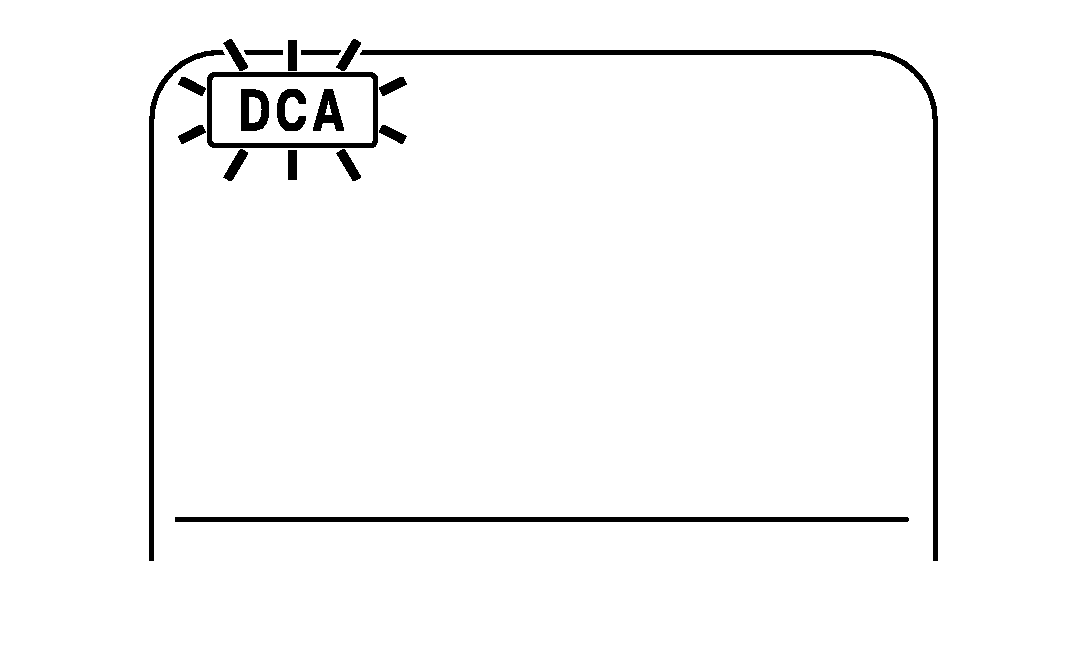

  Warning display	When the dynamic driver assistance switch is turned ON with settings of DCA system, LDP system and Blind Spot Intervention system OFF	The DCA system is not activated. The DCA system switch indicator blinks.	Courtesy of NISSAN NORTH AMERICA, INC.
  	When the VDC or ABS (including the TCS) operates When the VDC is turned OFF When the SNOW mode switch is turned ON When the 4WD shift switch is turned to not AUTO	The DCA system is automatically canceled. The chime will sound and the DCA system switch indicator will blink. NOTE: The system operates if the dynamic driver assistance switch is turned OFF→ON after the condition improves.

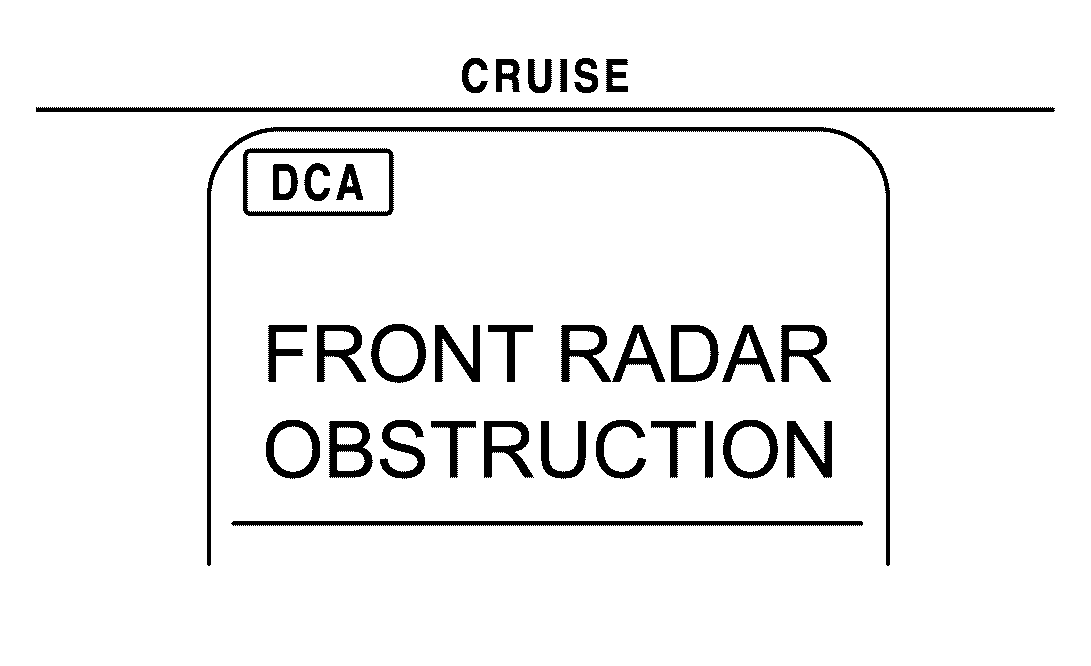

  	When the sensor window is dirty, making it impossible to detect a vehicle ahead	The DCA system is automatically canceled. The chime sounds and the ICC system warning lamp will come on and the "FRONT RADAR OBSTRUCTION" indicator will appear. NOTE: Stop the vehicle in a safe location and turn the ignition switch OFF. Clean the dirty area with soft cloth. The system returns to normal condition when turning the ignition switch ON again.	Courtesy of NISSAN NORTH AMERICA, INC.

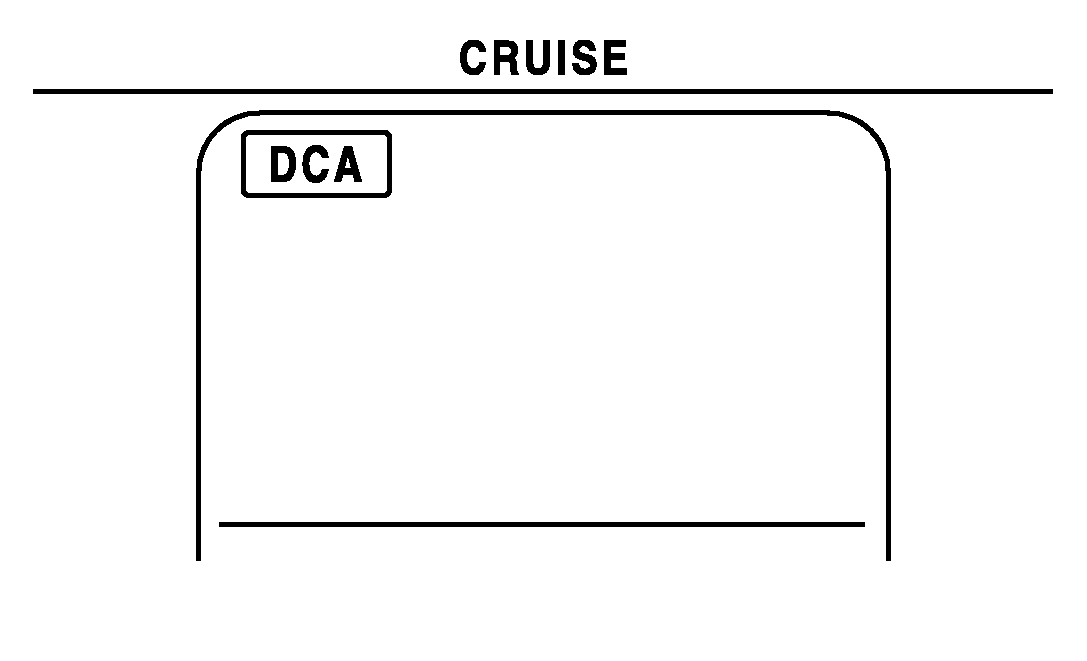

  	When the DCA system is not operating properly	The chime sounds and the ICC system warning lamp will come on. NOTE: Turn the ignition switch OFF, and then turn the ignition switch ON again. If there is no malfunction, the system returns to the normal condition.	Courtesy of NISSAN NORTH AMERICA, INC.
