Indicator And Warning Lamp

WARNING: This page is about a different car, the 2016 Infiniti QX80. However, it is still accessible from the selected car via links, so may be relevant.

Courtesy of NISSAN NORTH AMERICA, INC.

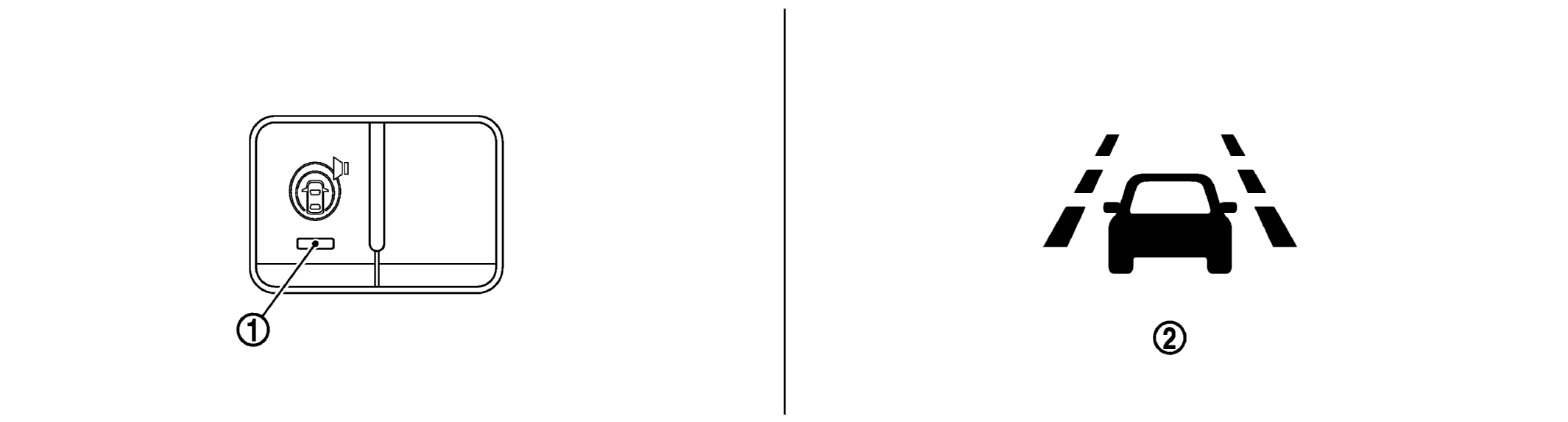

No.	Switch name	Description
	Warning systems ON indicator	Indicates that LDW system and BSW system are ON Blinks when that the setting of LDW system and BSW system are "OFF" and the warning systems switch is pressed
	Lane departure warning lamp	Blinks when LDW system is activated Turns ON when LDW system has a malfunction Blinks when the temperature of the lane camera unit becomes high
