Exploded View With Torque Specifications

WARNING: This page is about a different car, the 2016 Infiniti QX50. However, it is still accessible from the selected car via links, so may be relevant.

Courtesy of NISSAN NORTH AMERICA, INC.

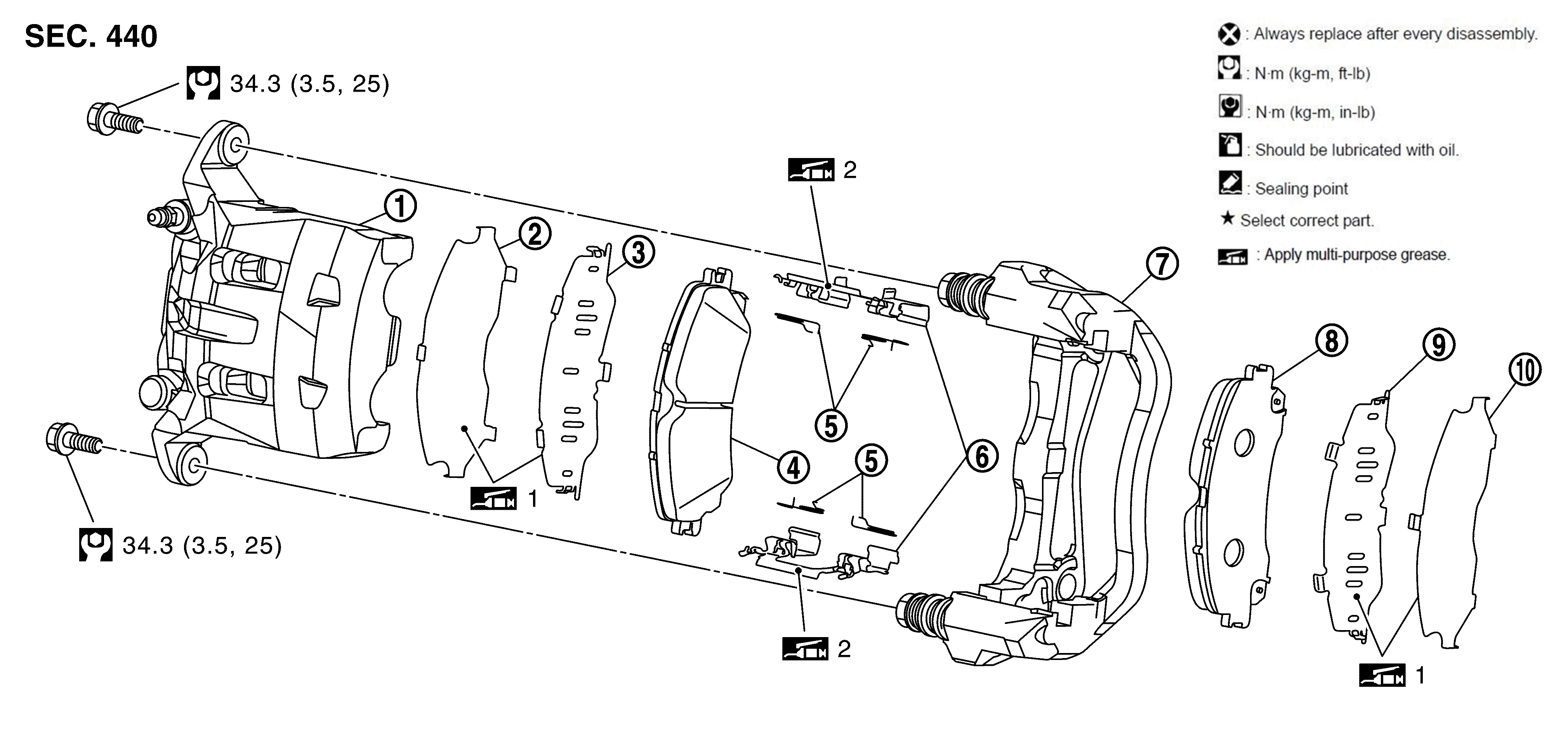

1.	Cylinder body	2.	Inner shim cover	3.	Inner shim
4.	Inner pad (with pad wear sensor)	5.	Return spring	6.	Pad retainer
7.	Torque member	8.	Outer pad	9.	Outer shim
10.	Outer shim cover
1: Apply MOLYKOTE^® AS880N or silicone based grease.
2: Apply MOLYKOTE^® 7439 or copper based grease.
Refer to COMPONENTS for symbols not described on the above.

Molykote is a registered trademark of Dow Corning Corporation.
