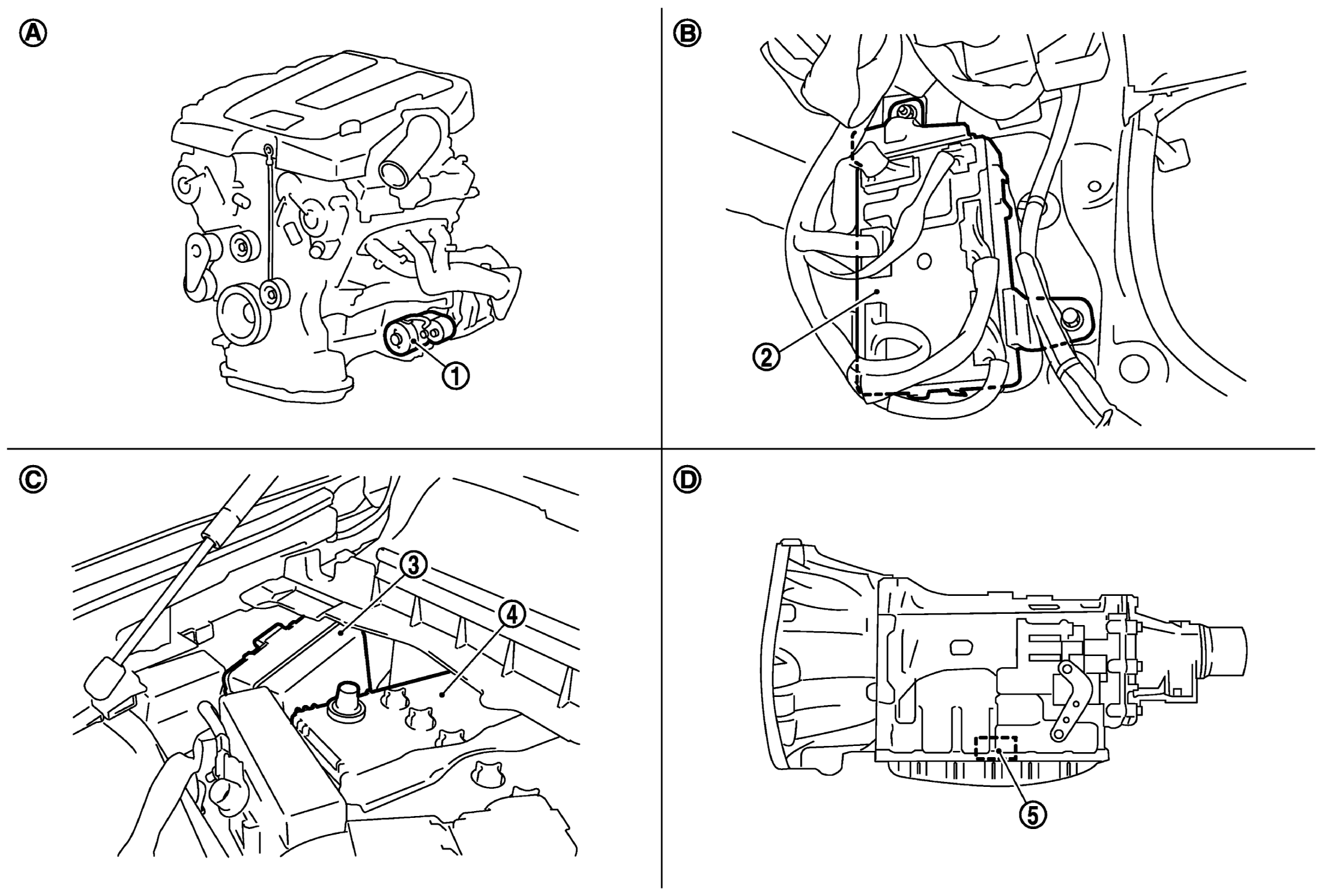

Component Location
WARNING: This page is about a different car, the 2016 Infiniti QX50. However, it is still accessible from the selected car via links, so may be relevant.
 Courtesy of NISSAN NORTH AMERICA, INC.
|
| 1. |
Starter motor |
2. |
BCM |
3. |
IPDM E/R |
| 4. |
Battery |
5. |
TCM |
|
|
| A. |
Engine |
B. |
Dash side lower (Passenger side) |
C. |
Engine room dash panel (RH) |
| D. |
Inside of A/T (built into A/T) |
|
|
|
|
