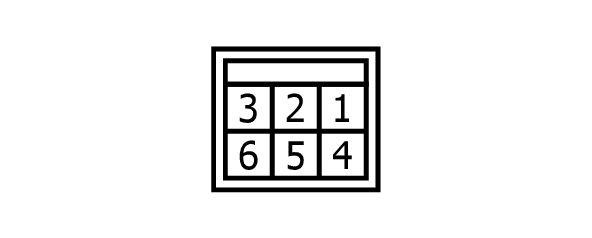

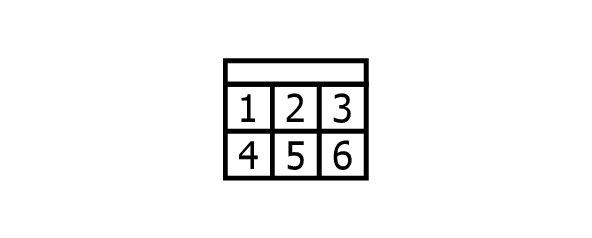

WIRE TO WIRE Connector End View (M113)
Connector Types:
M06FW-LC
Courtesy of NISSAN NORTH AMERICA
Courtesy of NISSAN NORTH AMERICA
| Terminal No. |
Color of Wire |
Signal Name (Specification) |
| 1 |
B |
- |
| 3 |
W |
- |
| 5 |
O/L |
- |
