Exploded View : Disassembly

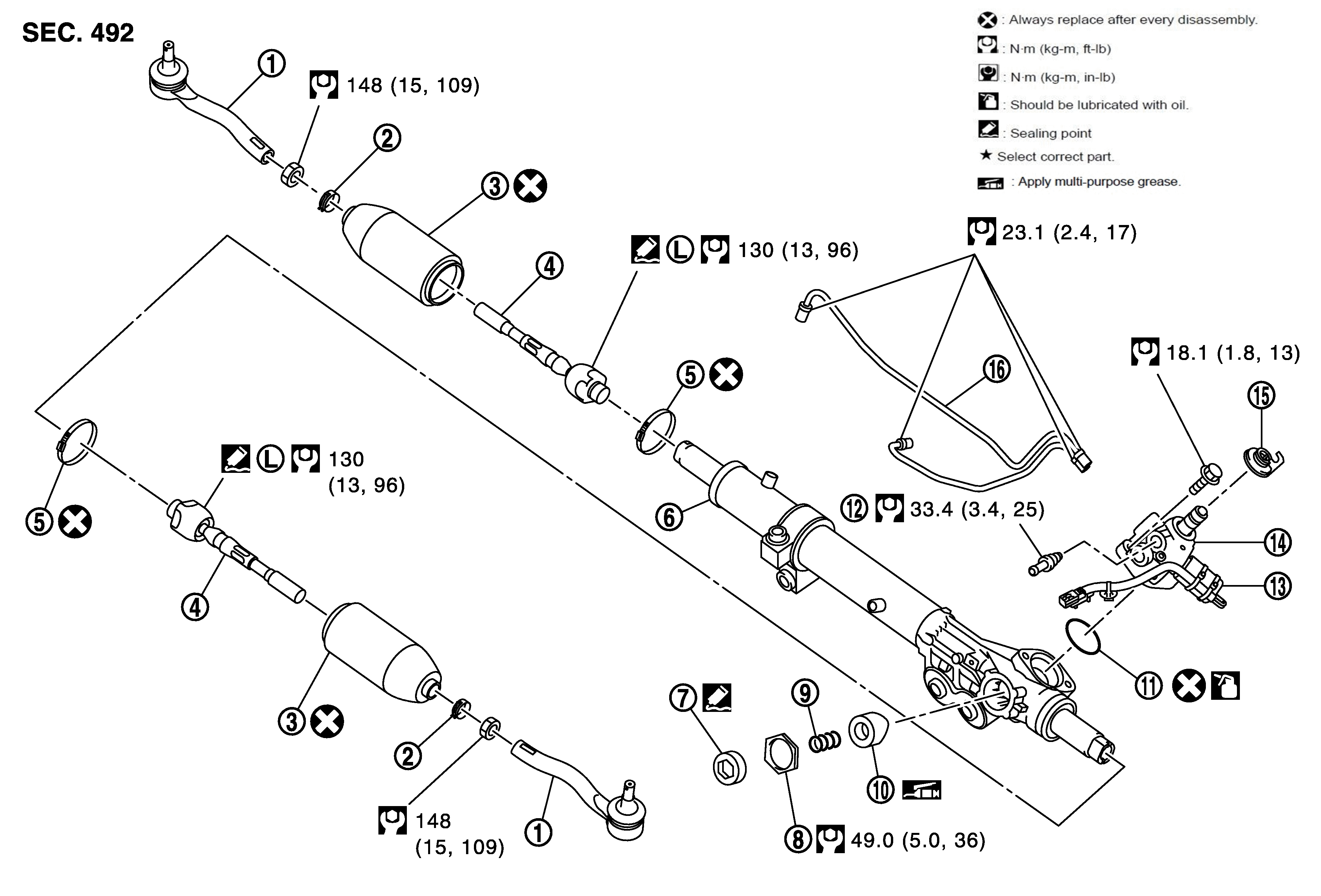

Engine speed sensitive type

Courtesy of NISSAN NORTH AMERICA, INC.

1.	Outer socket	2.	Boot clamp	3.	Boot
4.	Inner socket	5.	Boot clamp	6.	Gear housing assembly
7.	Adjusting screw	8.	Adjusting screw lock nut	9.	Spring
10.	Retainer	11.	O-ring	12.	Low pressure piping
13.	Gear-sub assembly	14.	Rear cover cap	15.	Cylinder tubes
: Always replace after every disassembly.
: N•m (kg - m, ft - lb)
: Apply power steering fluid.
: Apply Genuine High Strength Thread Locking Sealant or equivalent. Refer to RECOMMENDED CHEMICAL PRODUCTS AND SEALANTS .
: Apply Genuine Liquid Gasket, Three Bond 1111B or equivalent.
: Apply multi-purpose grease.

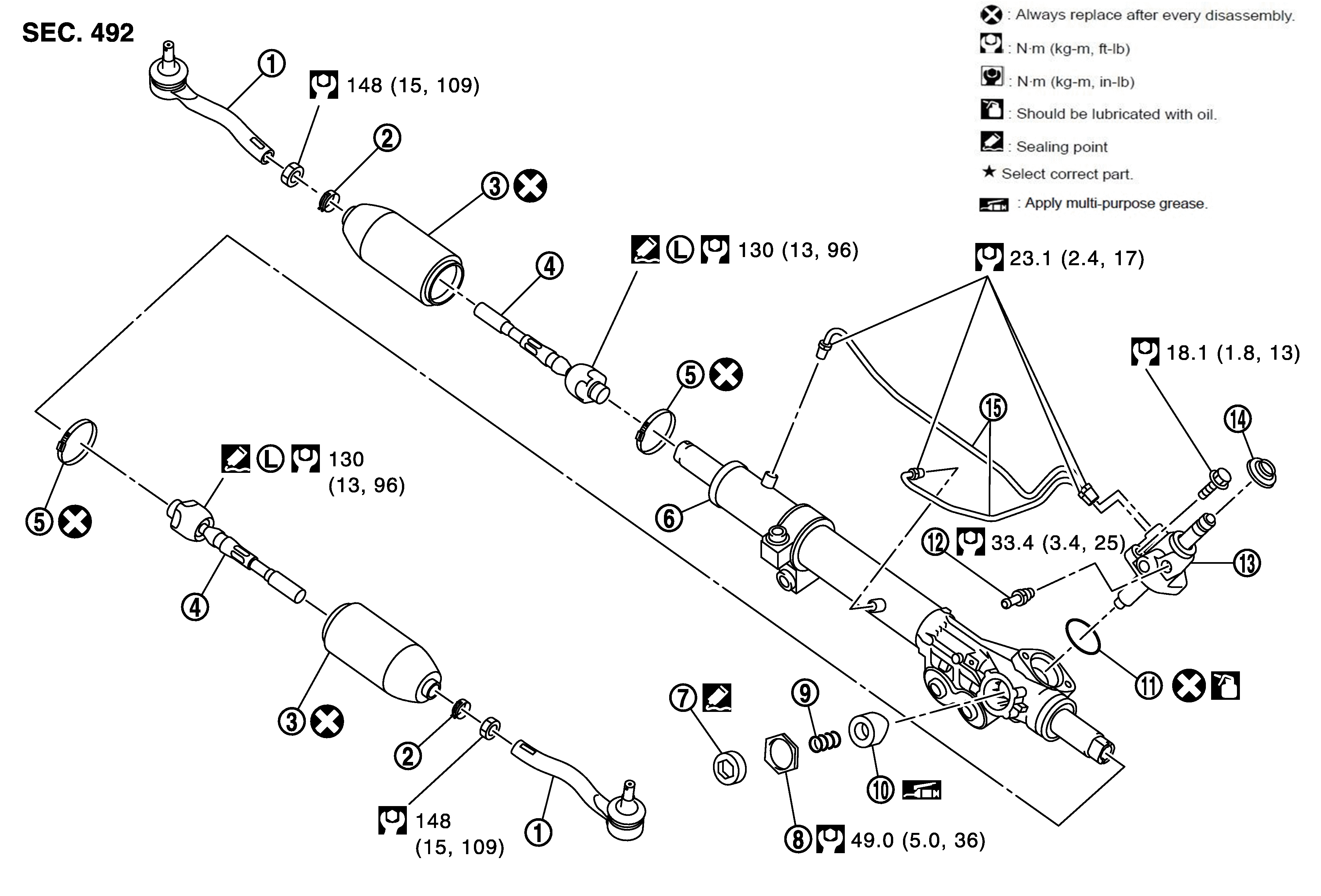

Vehicle speed sensitive type

Courtesy of NISSAN NORTH AMERICA, INC.

1.	Outer socket	2.	Boot clamp	3.	Boot
4.	Inner socket	5.	Boot clamp	6.	Gear housing assembly
7.	Adjusting screw	8.	Adjusting screw lock nut	9.	Spring
10.	Retainer	11.	O-ring	12.	Low pressure piping
13.	Power steering solenoid valve	14.	Gear-sub assembly	15.	Rear cover cap
16.	Cylinder tubes
: Always replace after every disassembly.
: N•m (kg - m, ft - lb)
: Apply power steering fluid.
: Apply Genuine High Strength Thread Locking Sealant or equivalent. Refer to RECOMMENDED CHEMICAL PRODUCTS AND SEALANTS .
: Apply Genuine Liquid Gasket, Three Bond 1111B or equivalent.
: Apply multi-purpose grease.
