Exploded View

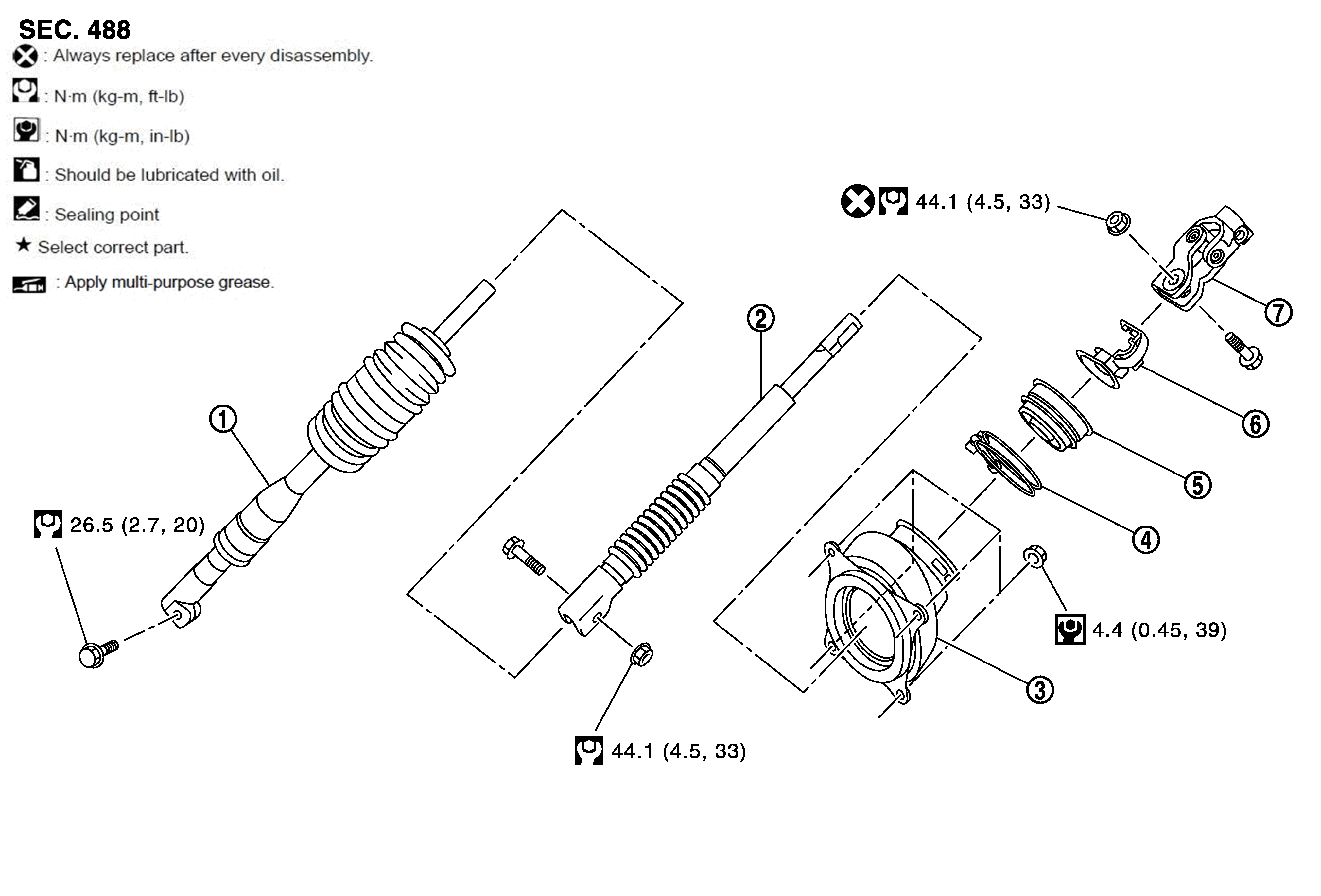

Fig 1: Steering Shaft With Torque Specifications

Courtesy of NISSAN NORTH AMERICA, INC.

1.	Lower joint	2.	Steering shaft	3.	Hole cover *
4.	Clamp *	5.	Hole cover seal	6.	Collar
7.	Upper joint
* : Replace "3" and "4" as a set.
: Always replace after every disassembly.
: N•m (kg - m, ft - lb)
: N•m (kg - m, in - lb)
