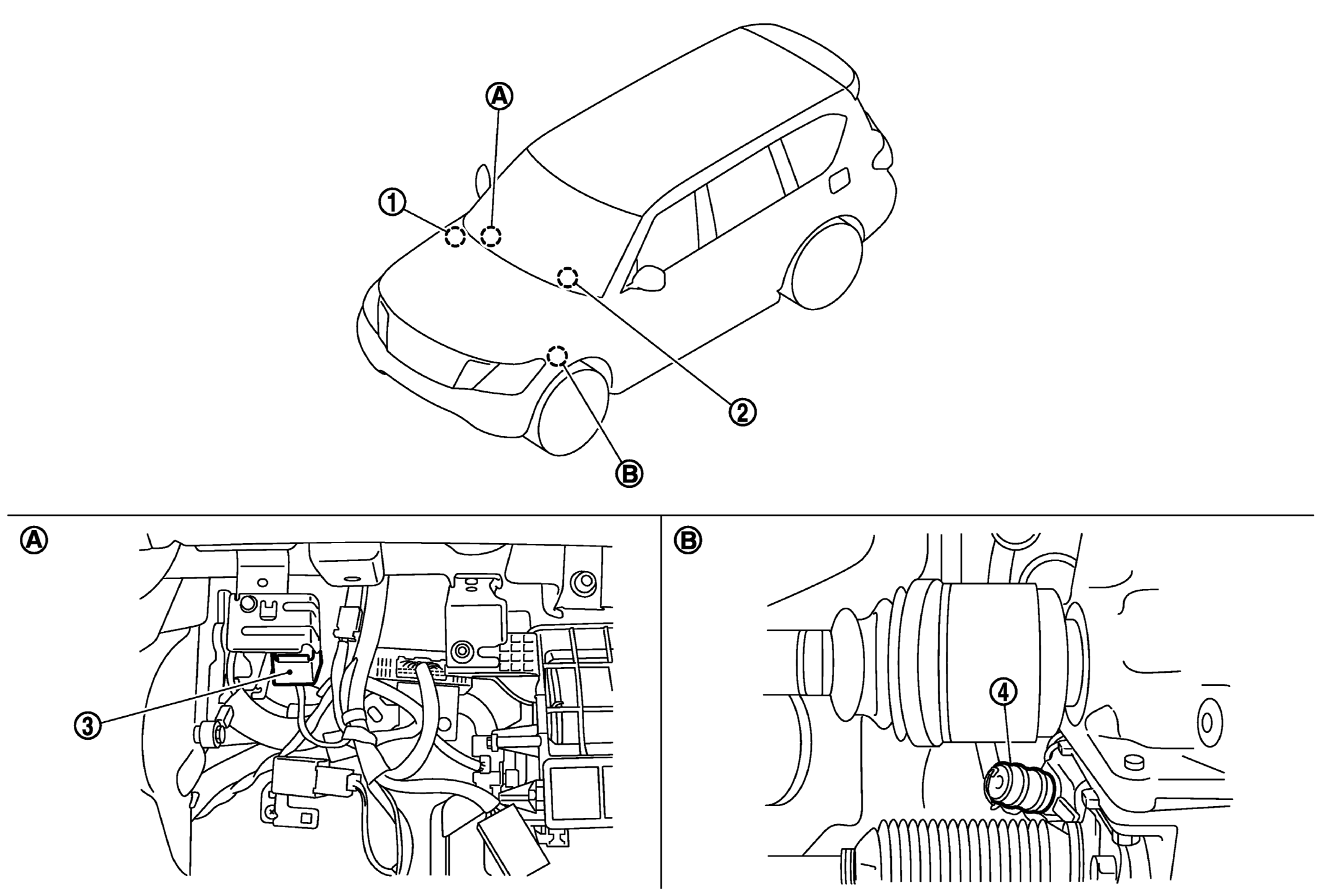

Component Location
| 1. | ECM Refer to COMPONENT LOCATION . |
2. | Combination meter Refer to COMPONENT LOCATION . |
3. | Power steering control unit |
| 4. | Power steering solenoid valve | ||||
| A. | Glove box assembly removed | B. | Steering gear assembly |
| 1. | ECM Refer to COMPONENT LOCATION . |
2. | Combination meter Refer to COMPONENT LOCATION . |
3. | Power steering control unit |
| 4. | Power steering solenoid valve | ||||
| A. | Glove box assembly removed | B. | Steering gear assembly |
