Exploded View

Engine speed sensitive type

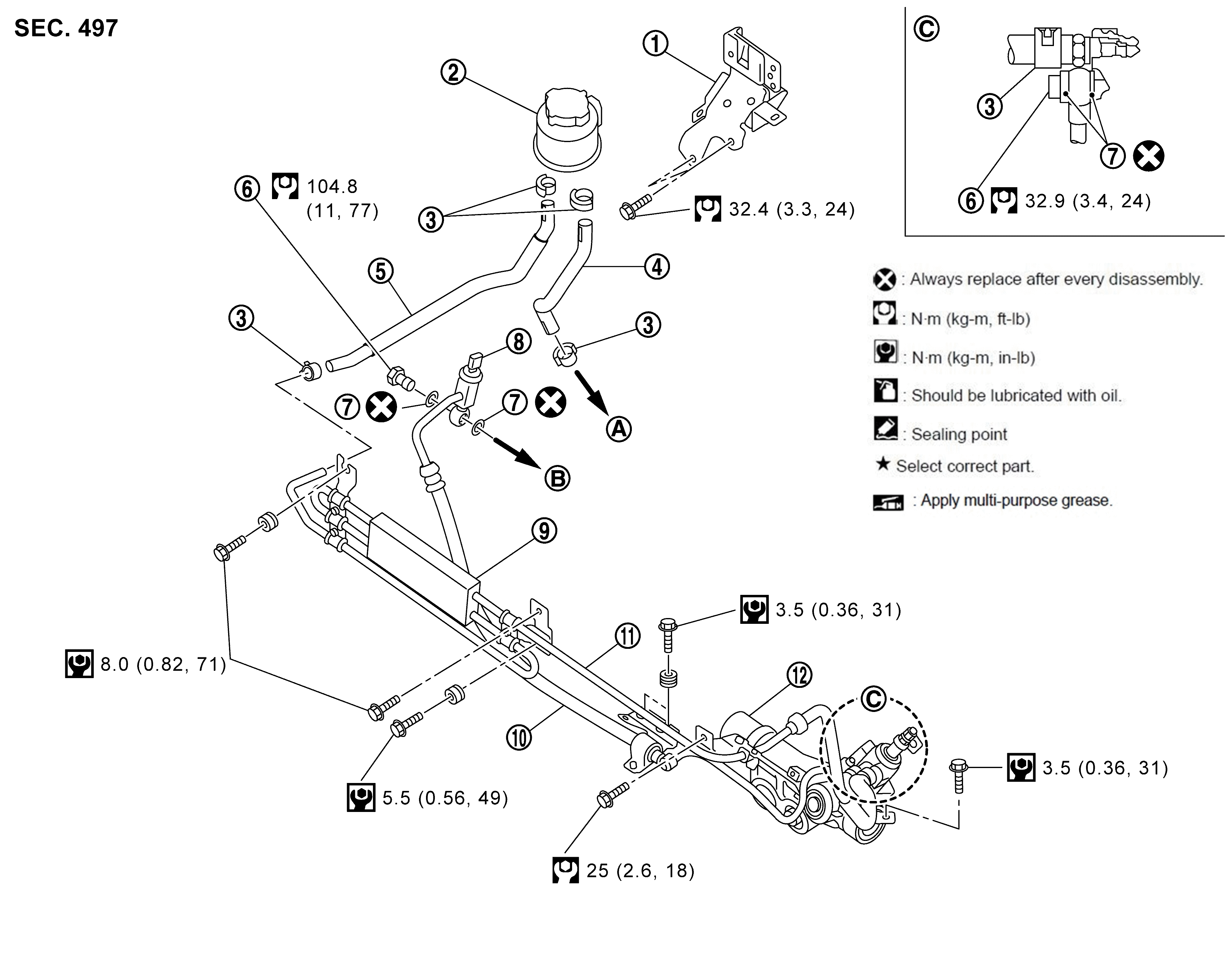

Fig 1: Hydraulic Line Engine Speed Sensitive With Torque Specifications

Courtesy of NISSAN NORTH AMERICA, INC.

1.	Reservoir tank bracket	2.	Reservoir tank	3.	Clamp
4.	Suction hose	5.	Return hose	6.	Eye bolt
7.	Copper washer	8.	Pressure sensor	9.	Oil cooler
10.	High pressure piping	11.	Low pressure piping	12.	Steering gear assembly
A.	To power steering oil pump suction hose.
B.	To power steering oil pump.
: Always replace after every disassembly.
: N•m (kg - m, ft - lb)
: N•m (kg - m, in - lb)

Vehicle speed sensitive type

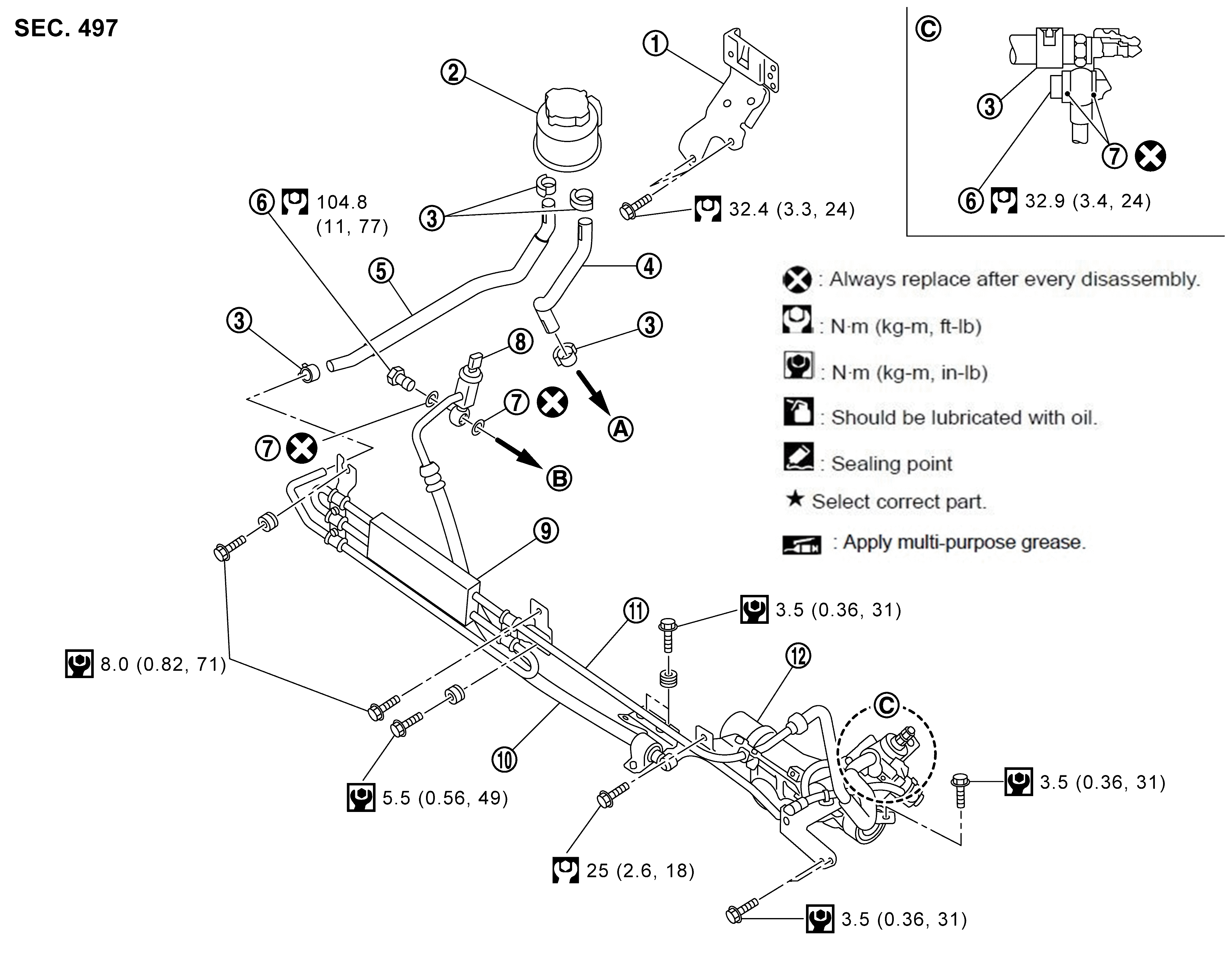

Fig 2: Hydraulic Line Vehicle Speed Sensitive With Torque Specifications

Courtesy of NISSAN NORTH AMERICA, INC.

1.	Reservoir tank bracket	2.	Reservoir tank	3.	Clamp
4.	Suction hose	5.	Return hose	6.	Eye bolt
7.	Copper washer	8.	Pressure sensor	9.	Oil cooler
10.	High pressure piping	11.	Low pressure piping	12.	Steering gear assembly
A.	To power steering oil pump suction hose.
B.	To power steering oil pump.
: Always replace after every disassembly.
: N•m (kg - m, ft - lb)
: N•m (kg - m, in - lb)
