Physical Values

Terminal (Wire color)		Description		Condition		Reference value (Approx.)
+	-	Signal name	Input/Output	Condition		Reference value (Approx.)
6	-	Shield	-	-	-	-
7	-	Shield	-	-	-	-

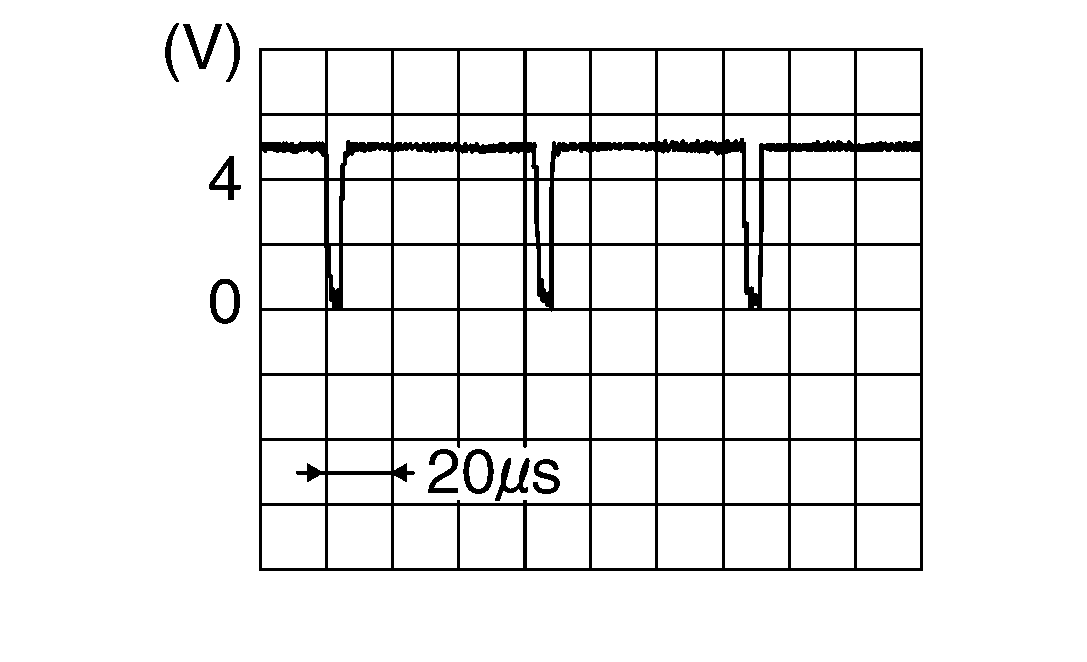

8 (W)	Ground	Camera image signal	Input	Ignition switch ON	At camera image is displayed.	Courtesy of NISSAN NORTH AMERICA, INC.

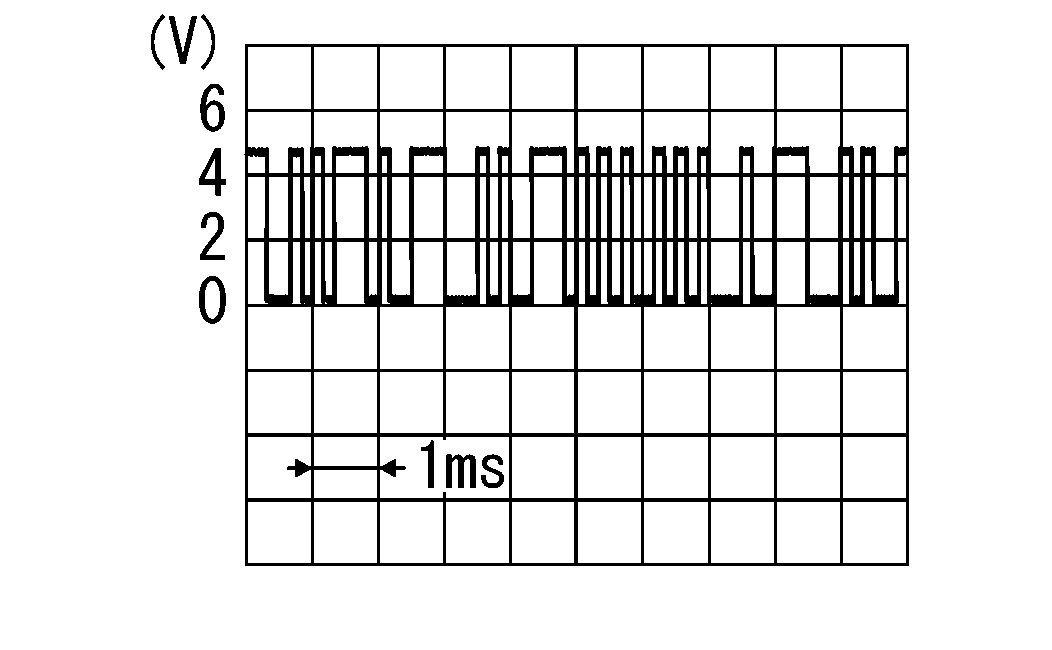

9 (Y/L)	Ground	Communication signal (DISP→CONT)	Output	Ignition switch ON	When adjusting display brightness.	Courtesy of NISSAN NORTH AMERICA, INC.
10 (Y/G)	Ground	Communication signal (CONT→DISP)	Input	Ignition switch ON	When adjusting display brightness.	Courtesy of NISSAN NORTH AMERICA, INC.
11 (Y/R)	Ground	Battery power supply	Input	Ignition switch OFF	-	Battery voltage
12 (B)	Ground	Ground	-	Ignition switch ON	-	0 V
18 (R)	Ground	Composite image signal	Input	Ignition switch ON	At DVD image is displayed.	Courtesy of NISSAN NORTH AMERICA, INC.
19 (W)	Ground	Composite image signal ground	-	Ignition switch ON	-	0 V
20 (W/B)	Ground	Composite image synchronizing signal	Input	Ignition switch ON	-	Courtesy of NISSAN NORTH AMERICA, INC.
22	-	Shield	-	-	-	-
23 (V)	Ground	ACC power supply	Input	Ignition switch ACC	-	Battery voltage
25	-	RGB digital image signal (-)	Input	-	-	-
26	-	RGB digital image signal (+)	Input	-	-	-
