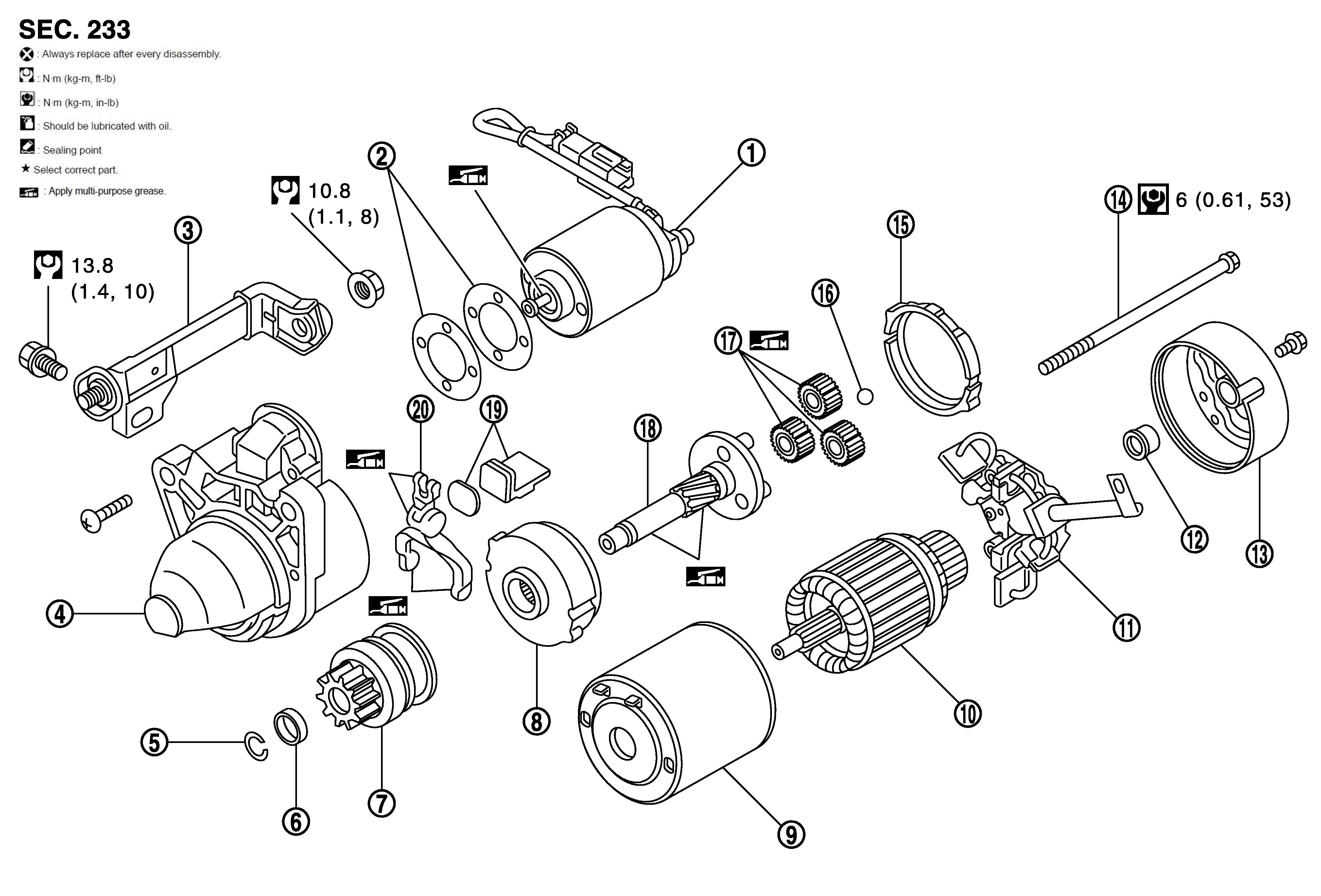

Exploded View: Disassembly
Type: M001T30673
| 1. | Magnetic switch assembly | 2. | Adjusting plate | 3. | "B" terminal extension |
| 4. | Gear case assembly | 5. | Stopper ring | 6. | Stopper |
| 7. | Pinion assembly | 8. | Internal gear | 9. | Yoke assembly |
| 10. | Armature assembly | 11. | Brush holder assembly | 12. | Metal RR |
| 13. | Rear cover | 14. | Through bolt | 15. | Packing |
| 16. | Ball | 17. | Planetary gear | 18. | Gear shaft |
| 19. | Dust cover kit | 20. | Shift lever | ||
| : High-temperature grease point | |||||
| : N•m (kg - m, ft - lb) | |||||
| : N•m (kg - m, in - lb) | |||||
NOTE:
Apply high-temperature grease to lubricate the bearing, gears and frictional surface when assembling the starter.
