Exploded View

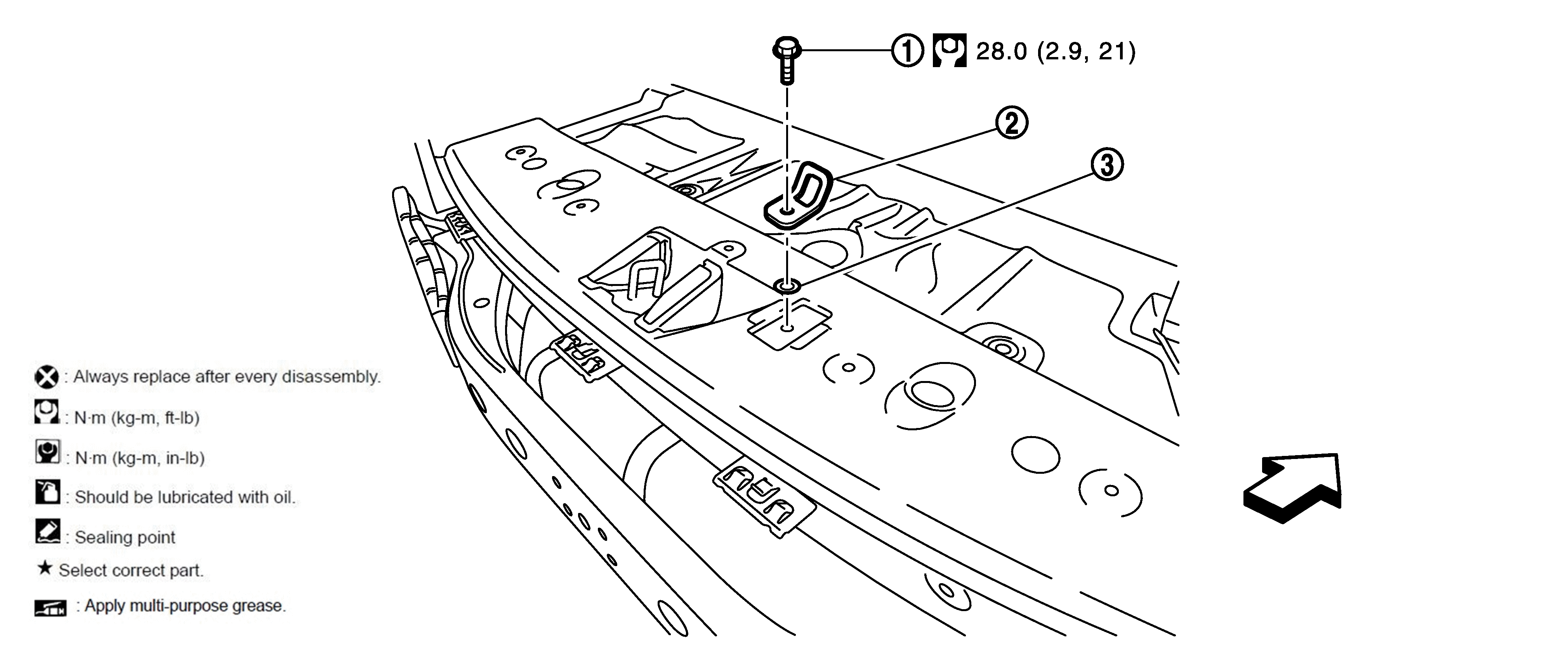

Fig 1: Latch System For Children With Torque Specifications
GNSJMHIA1484GB-484Courtesy of NISSAN NORTH AMERICA, INC.
1. Anchor bolt 2. Anchor plate 3. Retaining washer
ARROW : Vehicle front
BOLT : N•m (kg - m, ft - lb)
