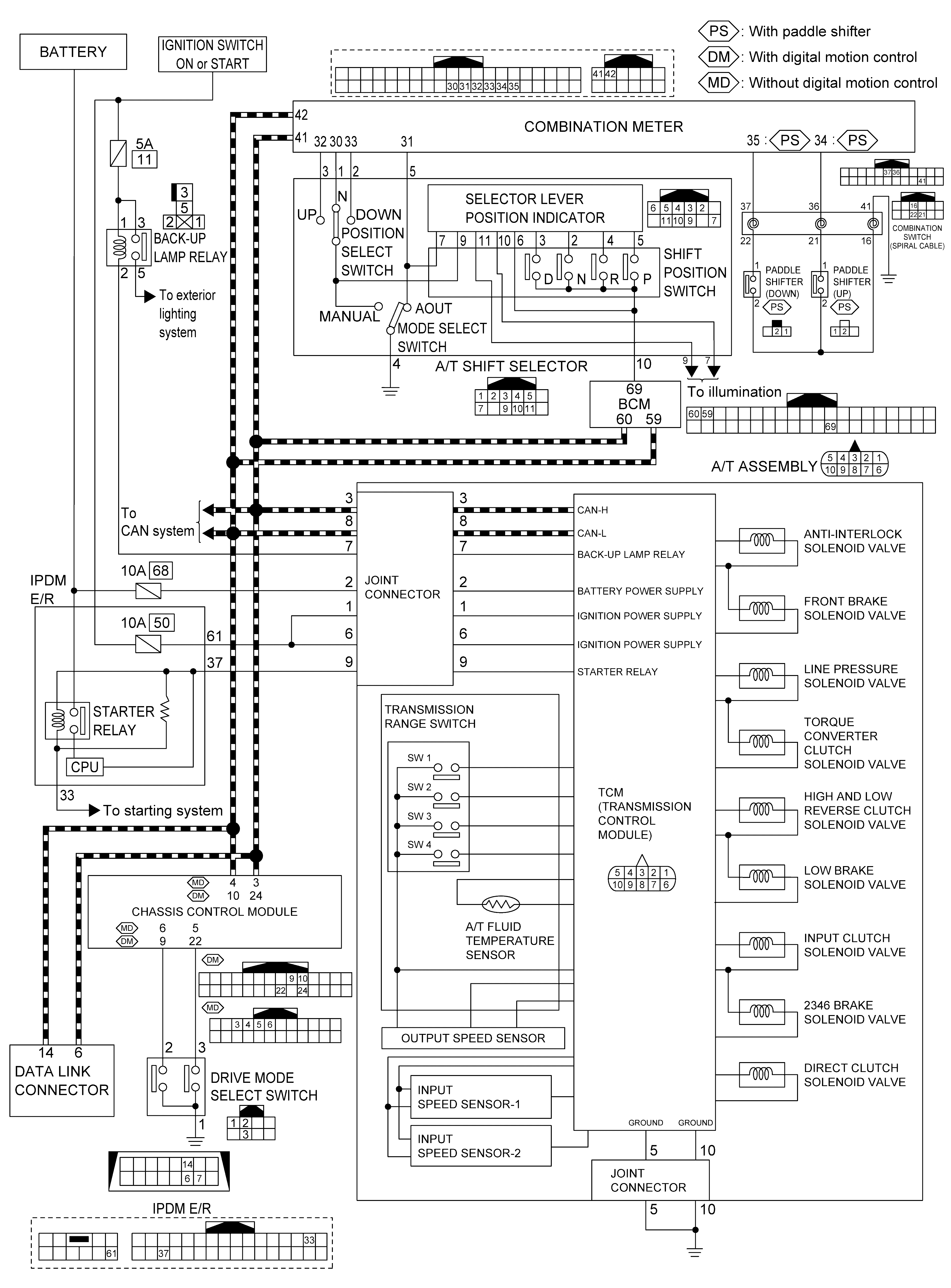

Home >> Infiniti >> 2018 >> Q60 Pure, AWD >> Repair and Diagnosis (Single Page) >> Transmission >> Automatic Trans >> Automatic Transmission (Introduction, Wiring Diagrams And Basic Inspection) >> System Description >> System >> A/T Control System >> Circuit Diagram >> VR30DDTT Engine
