Exploded View

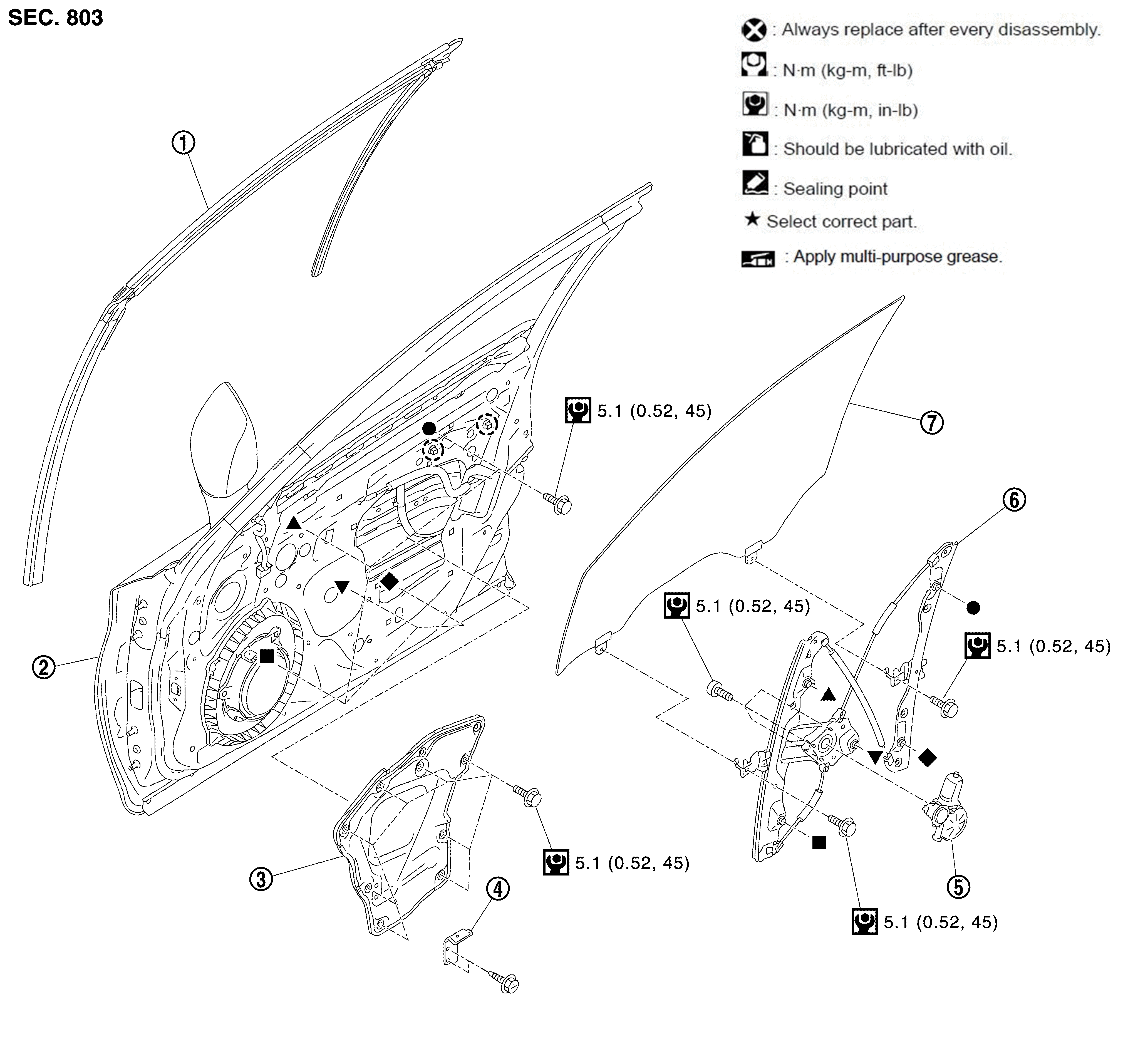

Fig 1: Front Regulator Replacement Components With Torque Specifications

Courtesy of NISSAN NORTH AMERICA, INC.

	Front door glass run	Front door panel	Front door inner frame
	Front door pull handle bracket	Front door power window motor	Front door regulator
	Front door glass
	: Clip
	: N.m (kg-m, in-lb)
, , , , : Indicates that the part is connected at points with same symbol in actual vehicle.
