Exploded View

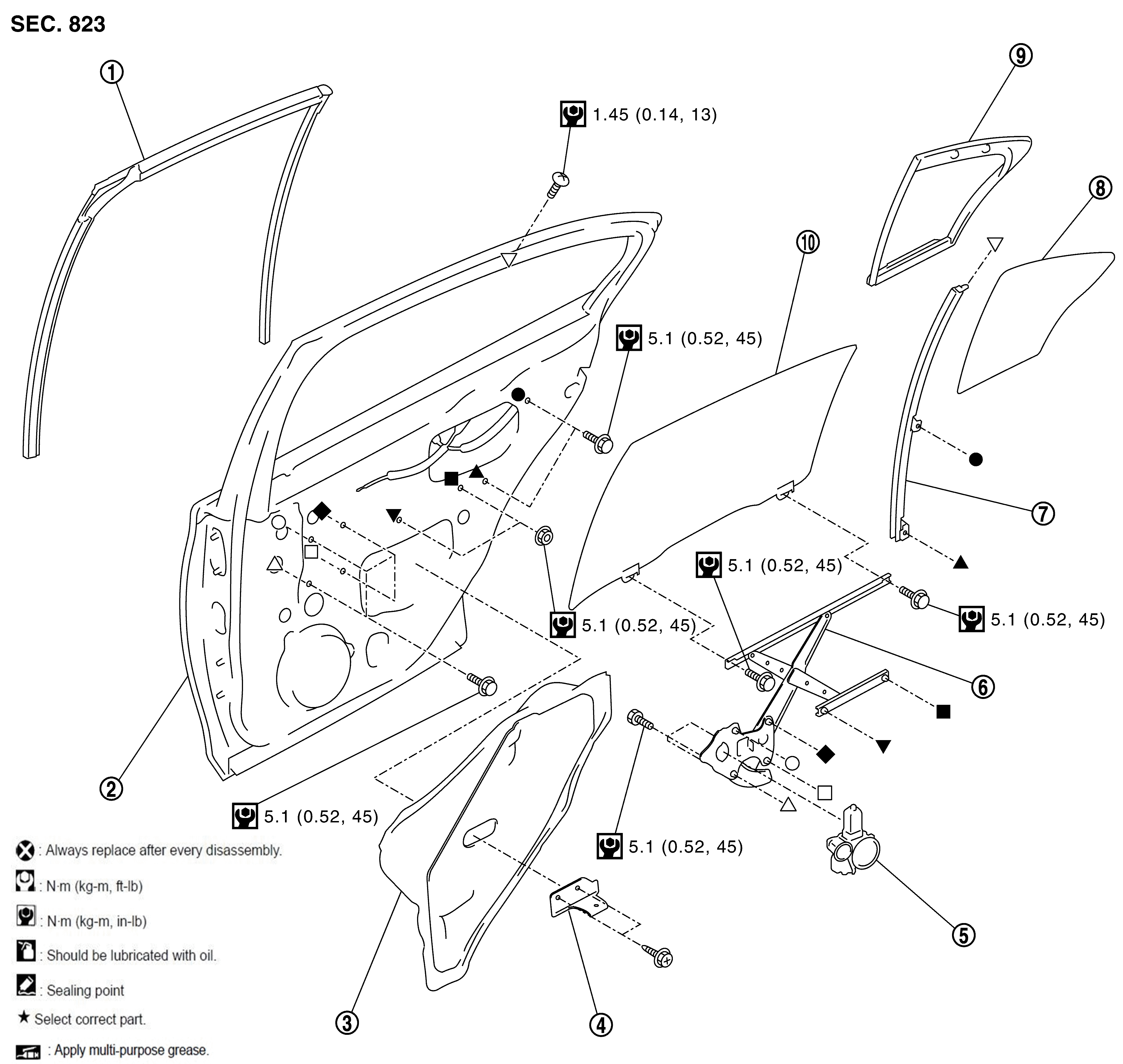

Fig 1: Rear Regulator Replacement Components With Torque Specifications
GNSJMKIB2410GB-410Courtesy of NISSAN NORTH AMERICA, INC.

SYMBOL

Rear door glass run

SYMBOL

Rear door panel

SYMBOL

Rear door sealing screen

SYMBOL

Rear door pull handle bracket

SYMBOL

Rear door power window motor

SYMBOL

Rear door regulator

SYMBOL

Rear door partition sash

SYMBOL

Rear door partition glass

SYMBOL

Rear door partition glass weather-strip

SYMBOL

Rear door glass

SYMBOL

: N.m (kg-m, in-lb)

SYMBOL , SYMBOL , SYMBOL , SYMBOL , SYMBOL , SYMBOL , SYMBOL , SYMBOL , SYMBOL : Indicates that the part is connected at points with same symbol in actual vehicle.
