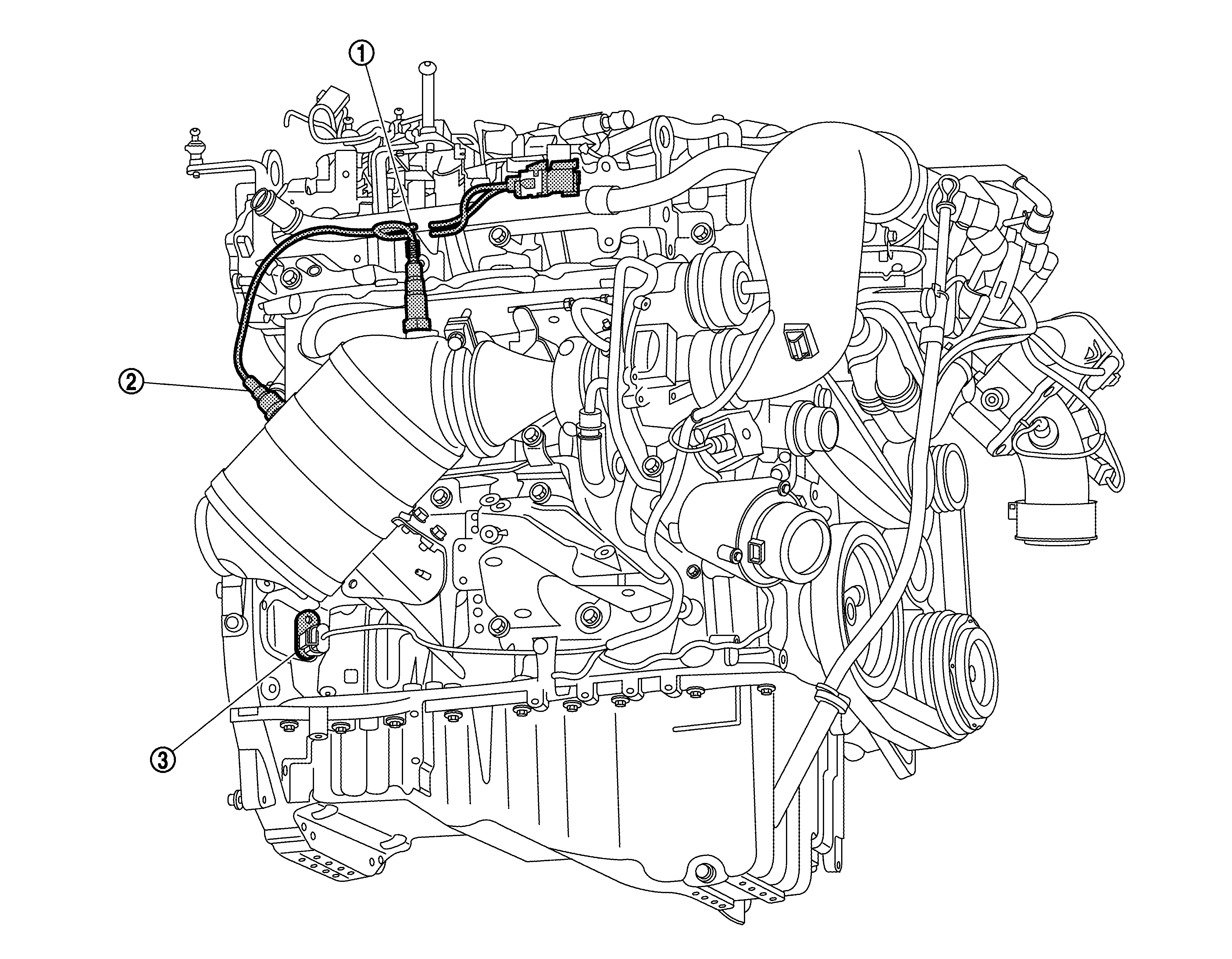

Engine Compartment (Right Side)

GNSJSBIA5240Z-240Courtesy of NISSAN NORTH AMERICA, INC.

No.

Component

Function

SYMBOL

A/F sensor

Air-Fuel Ratio (A/F) Sensor

SYMBOL

Heated oxygen sensor

System Description

SYMBOL

Crankshaft position sensor

Crankshaft Position Sensor
